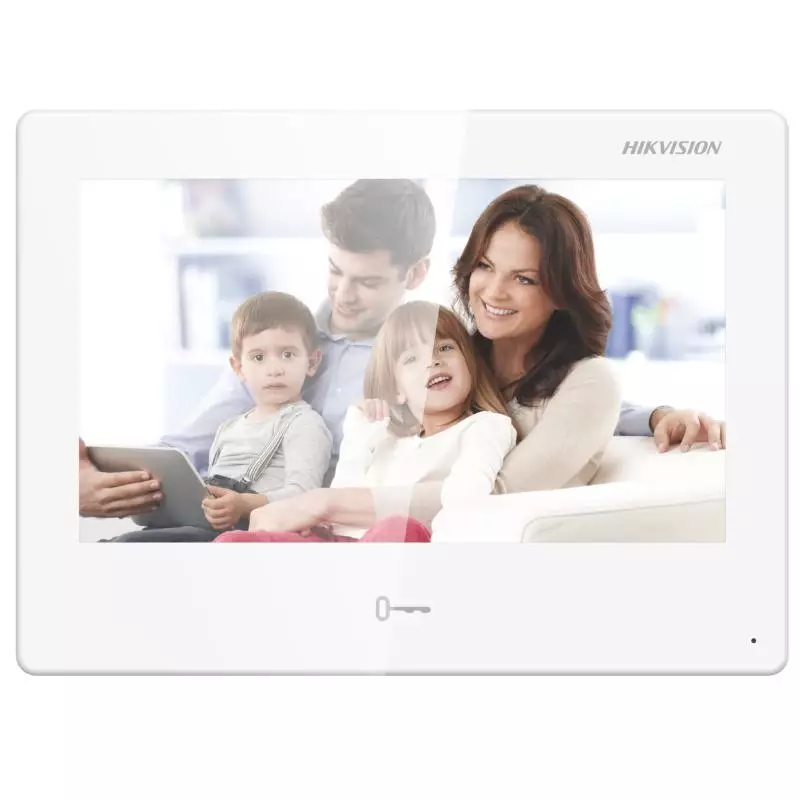

Hikvision 7" TouchScreen Android indoor station 1 DS-KH9310-WTE1(B)
Chat with us now to check the stock.
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
Frequently Bought Together
Hikvision 7" TouchScreen Andriod indoor station 1 DS-KH9310-WTE1(B)
Features:
- 7-inch colorful touch screen with 1024 × 600 resolution
- Built-in Android System
- Supports Android APP installation
- Support for three-party software integration
- Built-in Hik-Connect APP
- For all-in-one management of Hikvision’s devices on tablet
Specifications:
| System parameters | |
| Operation system | Android 10.1 |
| ROM | 8 GB |
| RAM | 2 GB |
| Processor | Embeded high performance processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Video parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide dynamic range (WDR) | / |
| Video compression standard | / |
| Focal length | / |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711U, G.711A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Message capacity | 200 captured pictures, 200 alarm records |
| Notice capacity | 200 |
| Linked indoor extensions capacity |
16 |
| Linked network camera capacity | 16 |
| Linked doorphone capacity | 17 |
| Network parameters | |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |
| Device interfaces | |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 1 |
| Lock control | 1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V) |
| General | |
| Button | / |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Net weight: 419.3 g Gross weight: 694 g |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 187 mm × 137 mm × 25.7 mm (7.36" × 5.39" × 1.01") |
| Battery | / |
| Power supply | 12 VDC, 1 A, IEEE802.3af, standard PoE |
| Application environment | Indoor |
| Power consumption | ≤ 12 W |
| Language | English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian |
