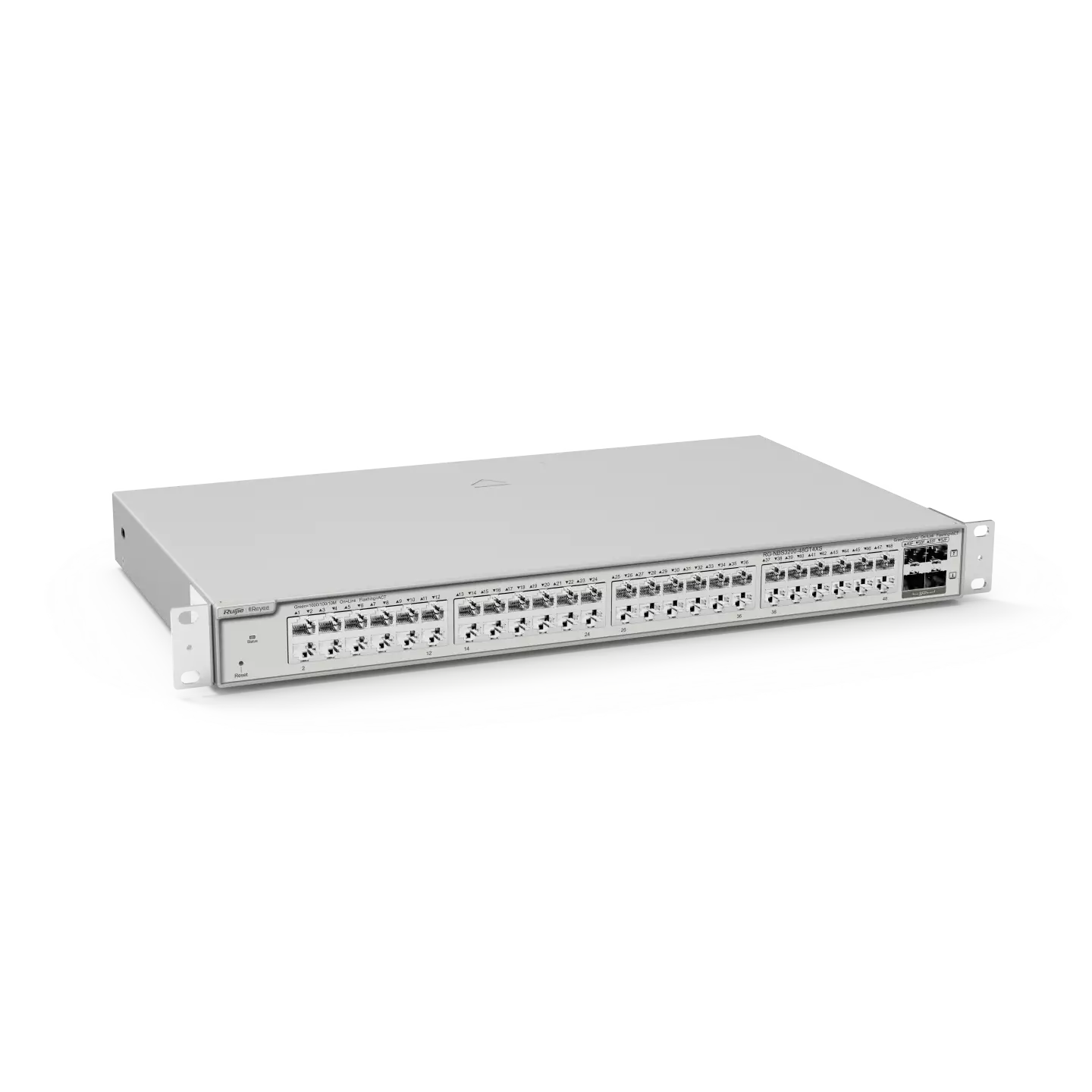

Ruijie 48-Port Gigabit Layer 2 Managed Switch, 4 * 10G Uplinks RG-NBS3200-48GT4XS
Chat with us now to check the stock.
Exc. GST
$1,314.21
Inc. GST
$1,445.63
Eligible Coupon
- RG-NBS3200-48GT4XS
- BRANDS, NETWORKING

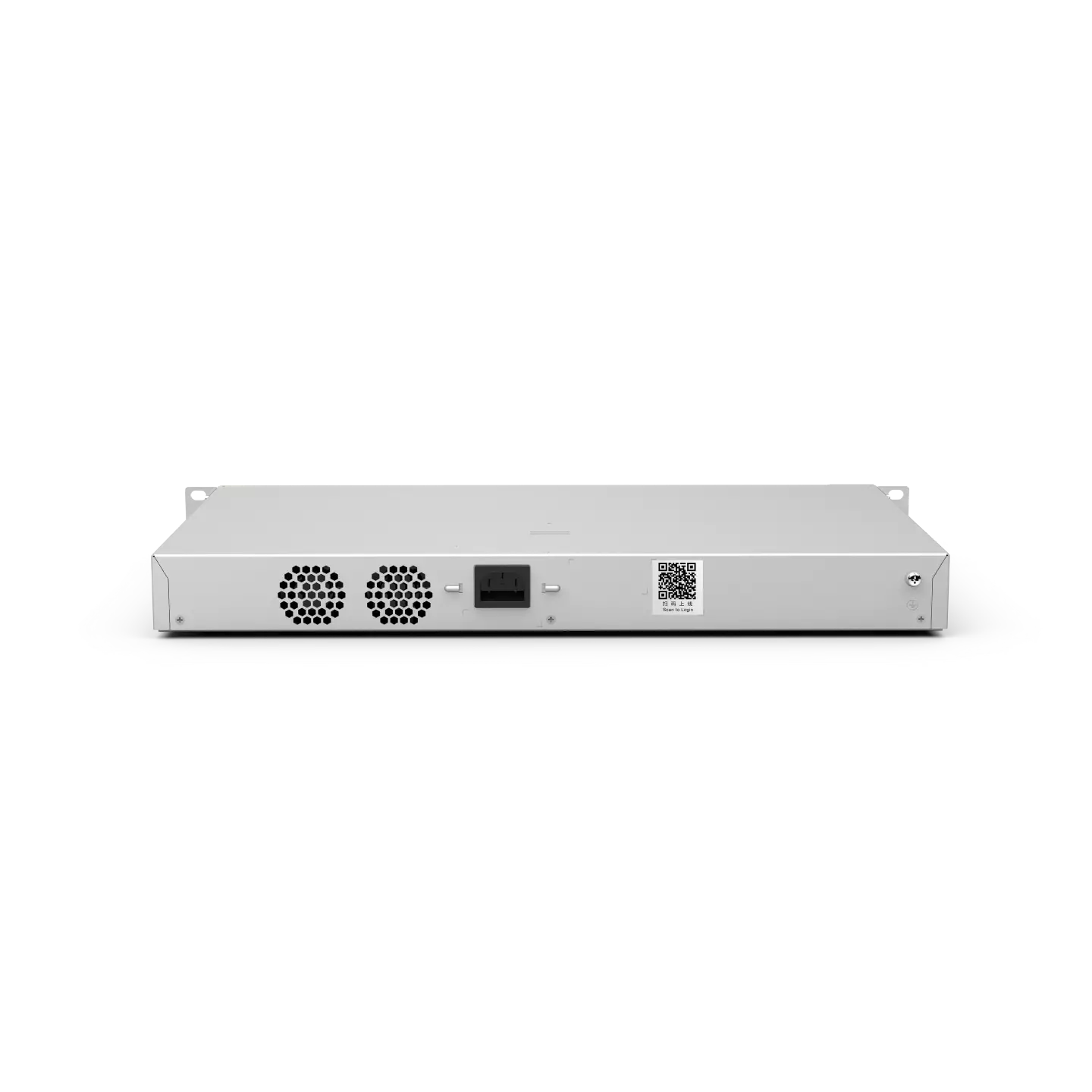

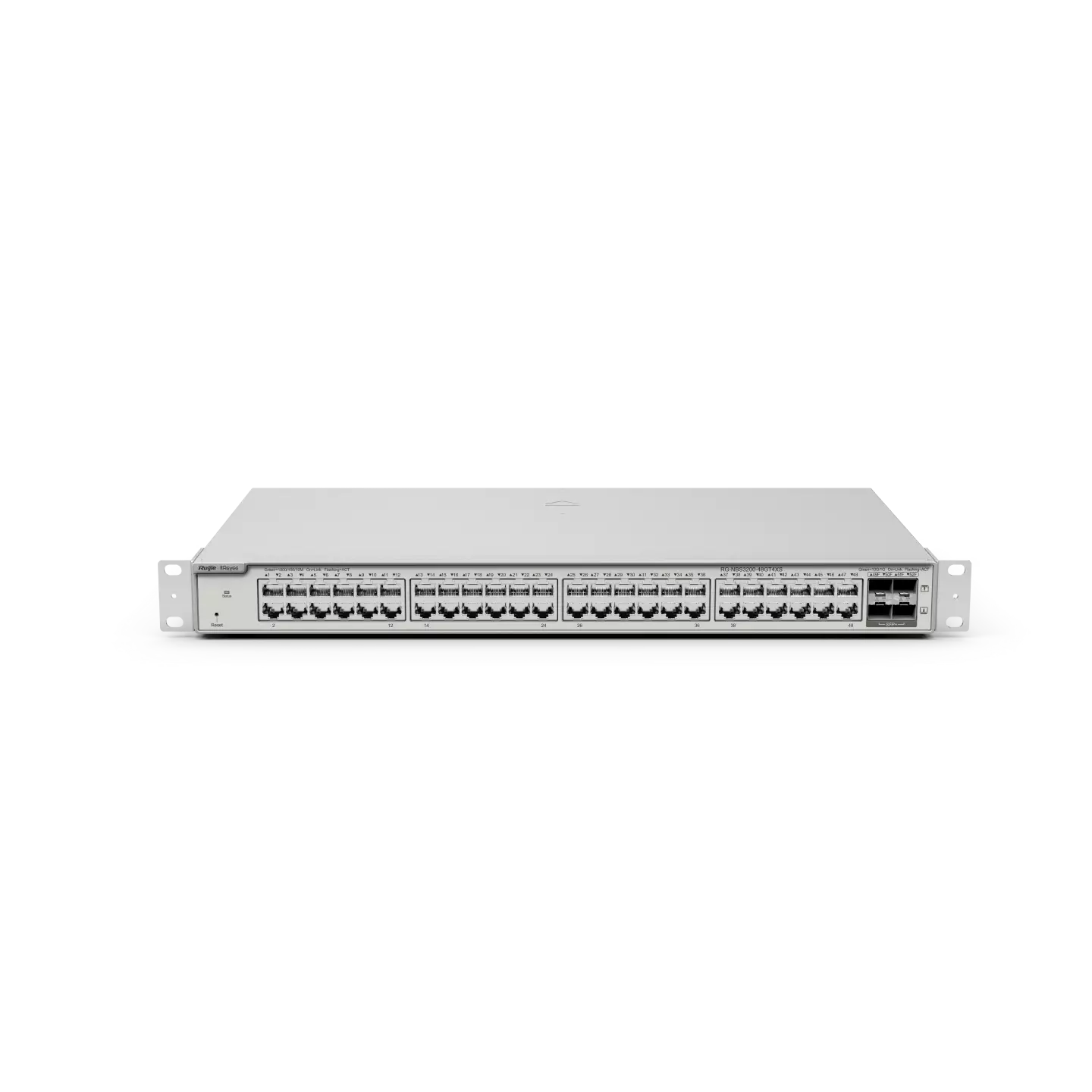

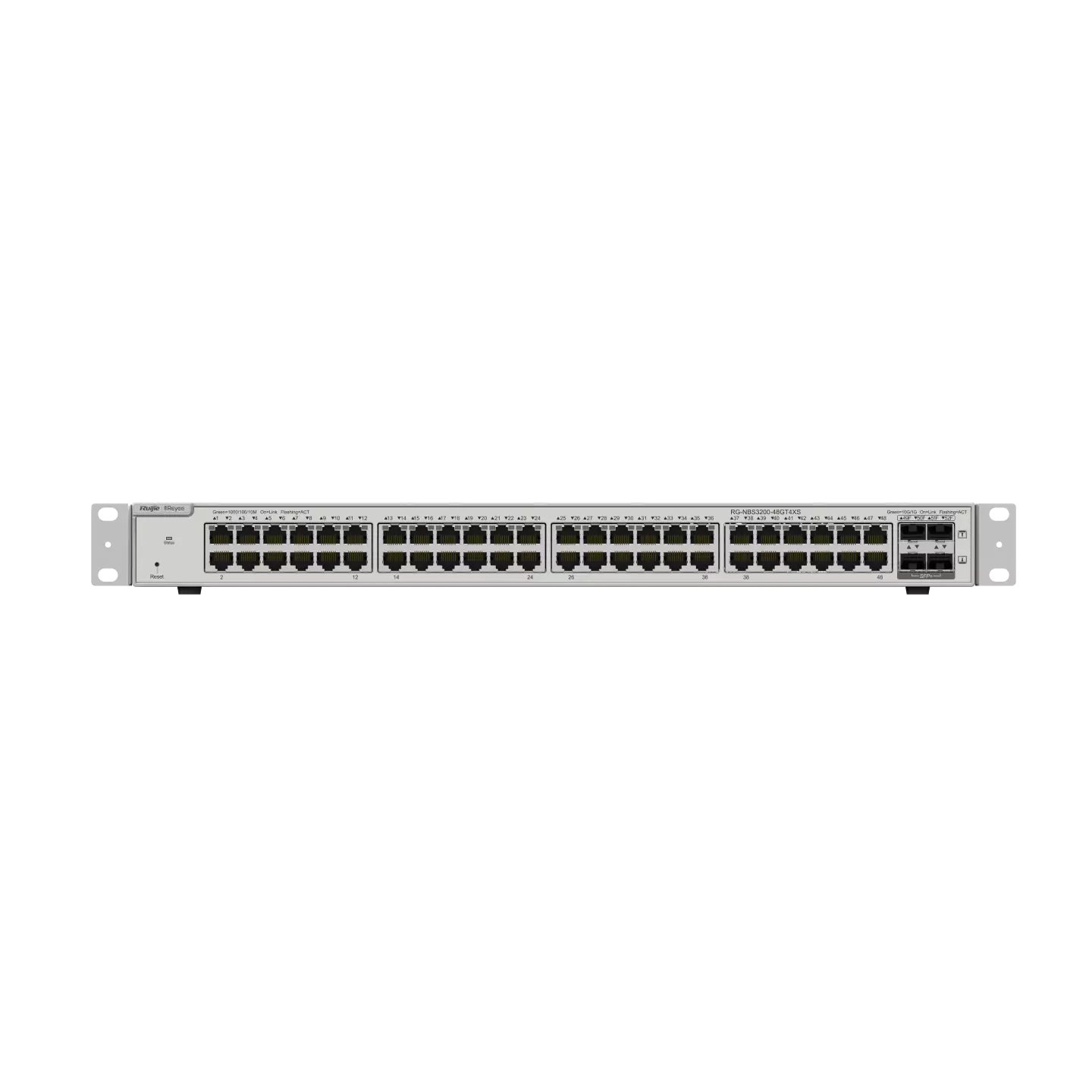

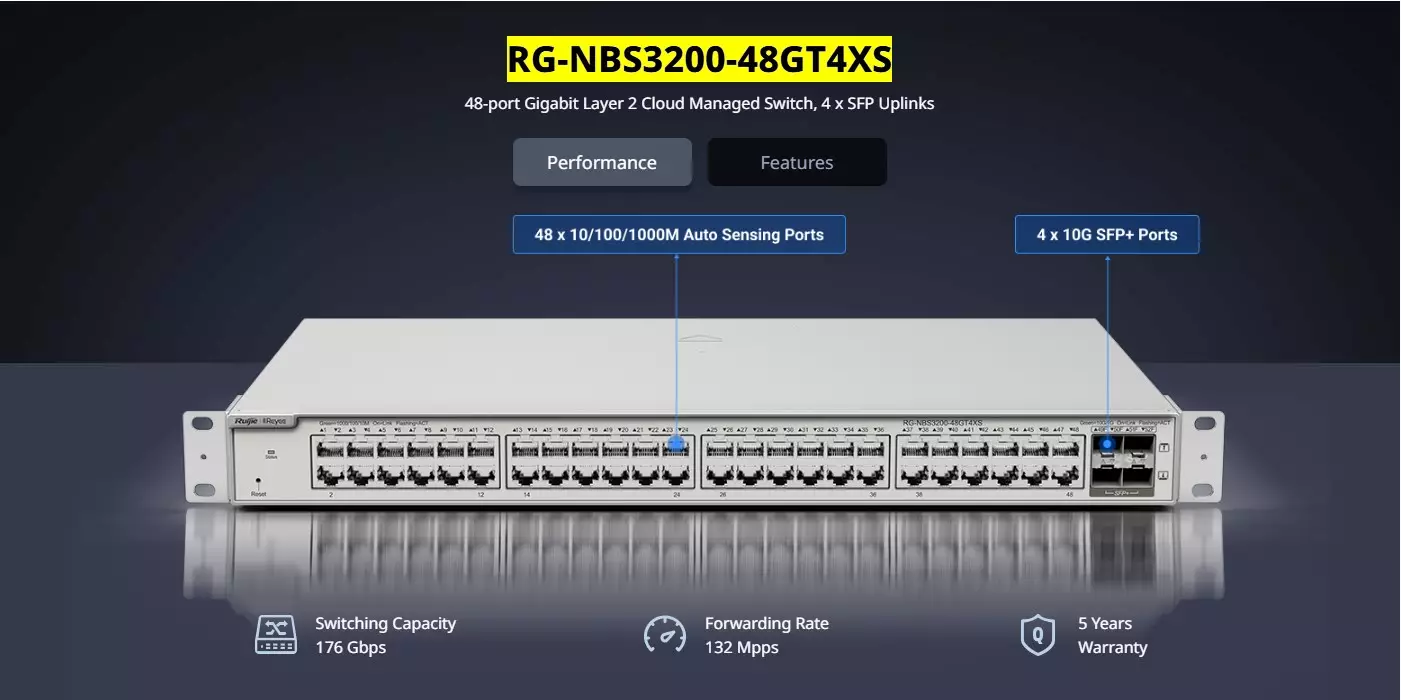

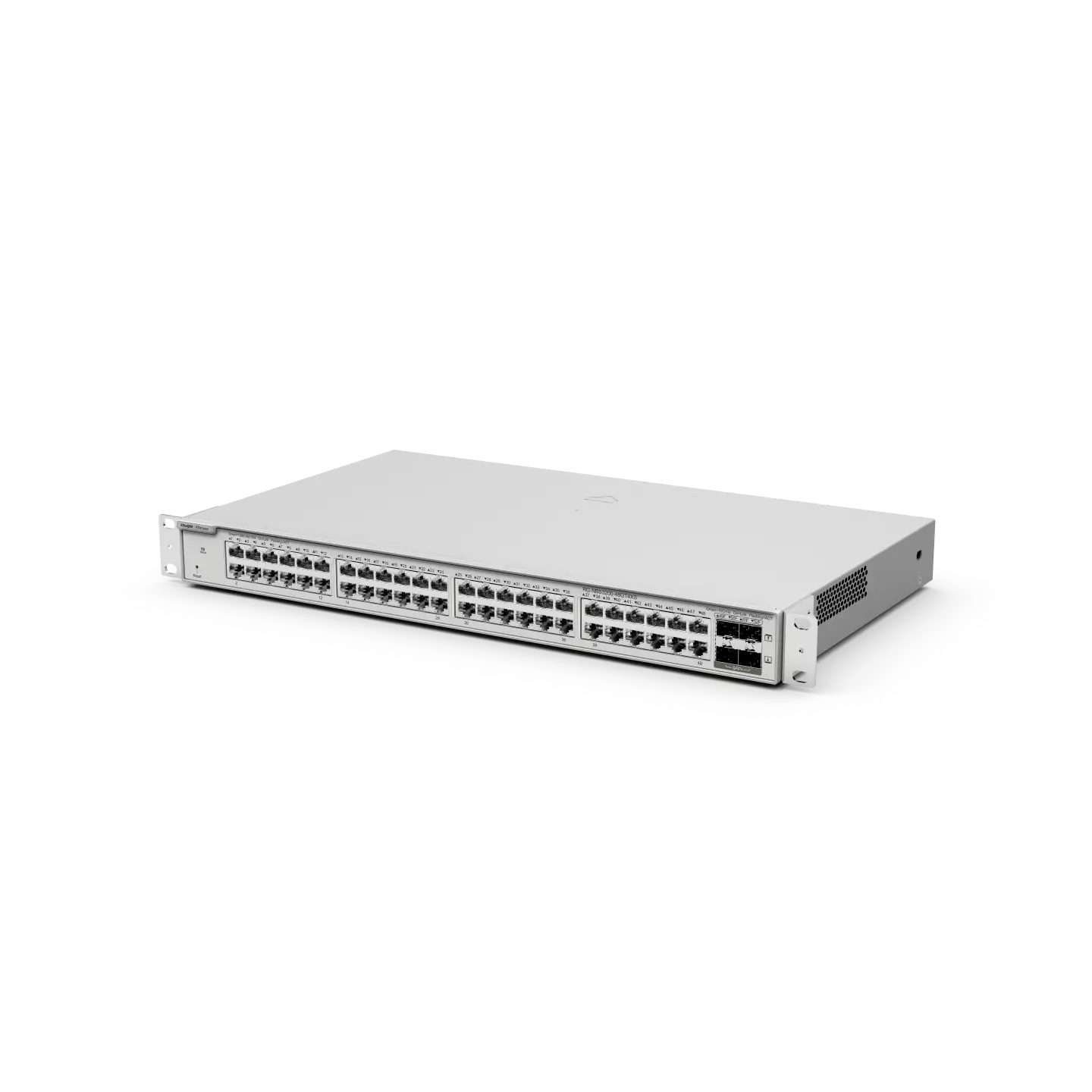

Ruijie 48-Port Gigabit Layer 2 Managed Switch, 4 * 10G Uplinks RG-NBS3200-48GT4XS
Features:
- 48-Port gigabit Layer 2 managed non-PoE switch, 4 SFP+ uplink

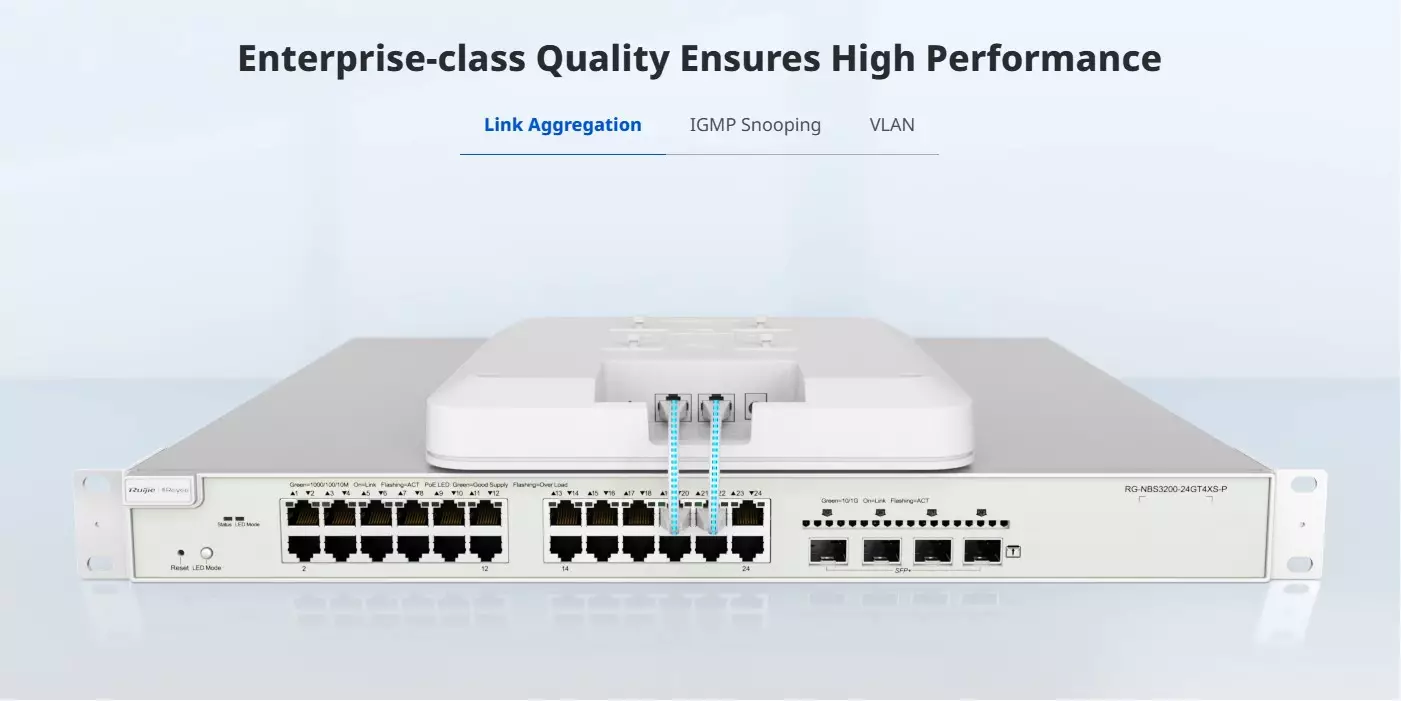

- Enterprise-class Quality Ensures High Performance
- IP Camera Recognition, Unique Value for CCTV Network
- Multiple Security Policies Protect Your Network
- Lifetime management on Ruijie Cloud at anytime anywhere
Specifications:
Model |
RG-NBS3200-48GT4XS |
Basic |
|
| 10/100/1000Base-T ports | 48 |
| SFP ports | - |
| SFP+ ports | 4 |
| PoE/PoE+ ports | FALES |
| Max. PoE budget | - |
| Layer Type | Layer 2 |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.95 Mpps |
| Packet Buffer | 16 Mbit |
| MAC address table | 16,000 |
| Maximum VLAN Support | 4094 |
| Dimensions (W x D x H) | 440 mmx 267.5 mm x 43.6 mm |
| Weight (With package) | 3.6 kg |
| MTBF | > 200,000 |
| Warranty | 5 Years |
Layer 2 Features |
|
| Jumbo Frame | 9216 |
| Flow Control | ✔️ |
| STP (IEEE 802.1d) | ✔️ |
| RSTP (IEEE 802.1w) | ✔️ |
| MSTP (IEEE 802.1s) | - |
| Port Fast | ✔️ |
| BPDU Guard | ✔️ |
| Errdisable Recovery | ✔️ |
| Max. Aggregation Group | 16 |
| Max. Member per Group | 8 |
| Unknow Unicast Storm Suppression | ✔️ |
| Multicast / Broadcast Storm Suppression | ✔️ |
| Many-to-One Mirroring | ✔️ |
| VLAN Range | Jan-94 |
| Port-based VLAN | ✔️ |
| MAC-based VLAN | ✔️ |
| IP-based VLAN | ✔️ |
| Voice VLAN | ✔️ |
| MAC address Table | 16000 |
| RLDP | ✔️ |
| LLDP / LLDP-MED | ✔️ |
| Cable Testing | ✔️ |
| IGMP Snooping v1/v2/v3 | ✔️ |
Software Features |
|
| Ping | ✔️ |
| Traceroute | ✔️ |
| ACL Entries | 1900 |
| IP Standard ACL | ✔️ |
| MAC-based Extended ACL | ✔️ |
| IP-based Extended ACL | ✔️ |
| Port-based Rate Limit (Ingress/Egress) | ✔️ |
| SNMP v1/v2c/v3 |
✔️ |
| Web Management | ✔️ |
| Management IP | 10.44.77.200 |
| HTTP/HTTPS | ✔️ |
| Cloud Management | ✔️ |
| SON (Self-Organizing Network) with IP | ✔️ |
| Camera Recognition | ✔️ |
| Loop Prevention | ✔️ |
| Loop Notification | ✔️ |
| PoE Usage Alarm | - |
| Protection Port | ✔️ |
| IP Source Guard | ✔️ |
| Anti-ARP Spoofing | ✔️ |
| DHCP Snooping | ✔️ |
| DHCP Client | ✔️ |
Physical Features |
|
| Reset Button | Front |
| Cable Hot-swappable | ✔️ |
| Power Supply Slot | Single, fixed power supply |
| Power Supplies | 100 - 240V AC, 2A |
| Power Consumption | ≤ 46W |
| EEE | ✔️ |
| Fan | 1 |
| Airflow | Left/Right-to-Rear |
| Fan Adaptive Speed Adjustment | ✔️ |
| Acoustic Noise | < 45dB |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Port Surge | 6 kV |
| Operating Altitude (meters) | -500 to 5000 |
| Certificate | CE, RoHS |
