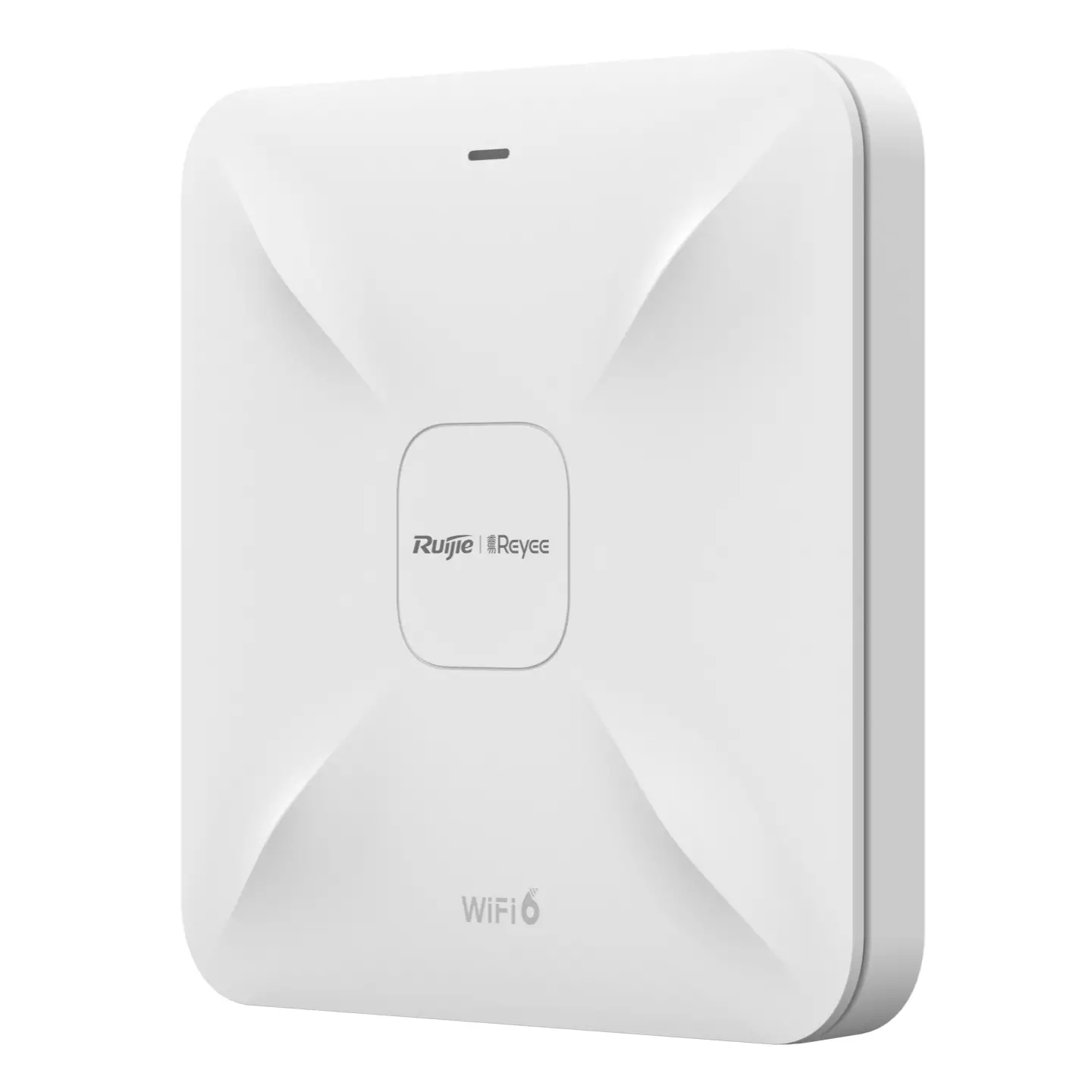

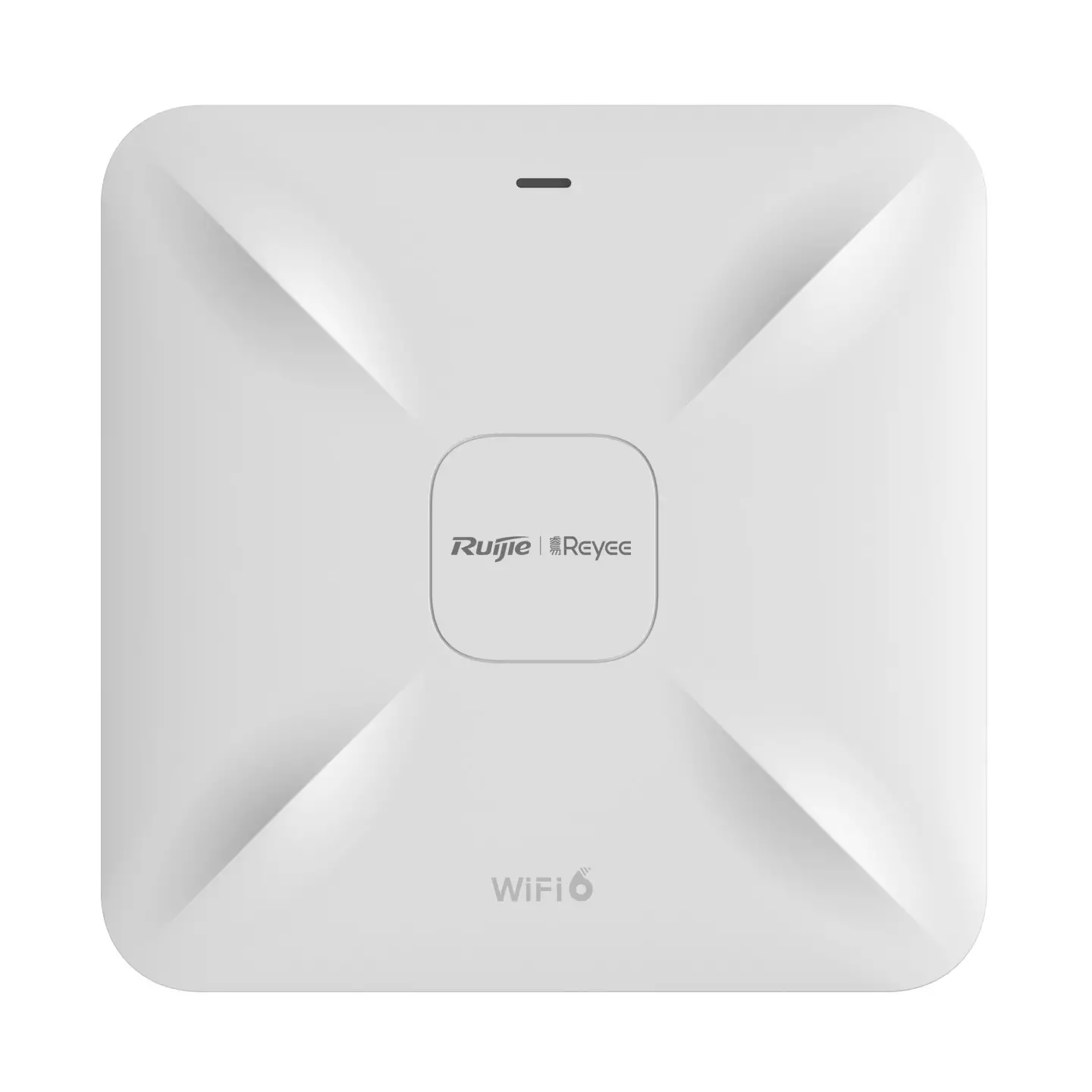

Ruijie Reyee Wi-Fi 6 3202Mbps Multi-G Ceiling Access Point RG-RAP2260(E)
Chat with us now to check the stock.
Exc. GST
$484.10
Inc. GST
$532.51
Eligible Coupon
- RG-RAP2260(E)
- BRANDS, NETWORKING
Ruijie Reyee Wi-Fi 6 3202Mbps Multi-G Ceiling Access Point RG-RAP2260(E)
- Build ultra-high performance network with 3202Mbps wireless throughput.
- Client connections over 500, provide higher practical performance for users as well.
- Boost Internet speed with 2.5Gbps uplink.
- Easily install extra AP with Reyee Mesh technology.
- Set up Wi-Fi 6 network in 3 minutes with Ruijie Cloud APP.
Hardware Specifications |
|
| Model | RG-RAP2260(E) |
| Radio | Dual-stream dual-band |
| Protocol | Wi-Fi 6 (IEEE 802.11ax) Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1) Wi-Fi 4 (IEEE 802. 11n) 802.11a/b/g |
| Operating Bands | 802.11b/g/n: 2.4 GHz ~ 2.4835 GHz 802.11a/n/ac/ax : 5 GHz:5.150 GHz~5.350 GHz, 5.725 GHz: 5.850 GHz (country specific) |
| Antenna | Built-in Omnidirectional Antennas (2.4 GHz: 3dBi, 5 GHz: 3dBi) |
| Spatial Streams | 2.4GHz: 4x4 MIMO 5GHz: 4x4 MIMO |
| Max Throughput | Up to 800 Mbps at 2.4 GHz Up to 2402 Mbps at 5 GHz 3.202 Gbps per AP |
| Modulation | OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps, 64QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and CCK@5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16QAM , 64QAM, 256QAM and1024QAM OFDMA |
| Receive Sensitivity | 11b: -96 dBm(1 Mbps), -93 dBm(5 Mbps), -89 dBm(11 Mbps) 11a/g: -91 dBm(6 Mbps), -85 dBm(24 Mbps), -80 dBm(36 Mbps), -74 dBm(54 Mbps) 11n: -90 dBm(MCS0), -70 dBm(MCS7), -89 dBm(MCS8), -68 dBm(MCS15) 11ac: 20MHz: -88 dBm(MCS0), -63 dBm(MCS9) 40MHz: -85 dBm(MCS0), -60 dBm(MCS9) 80MHz: -85 dBm(MCS0), -60 dBm(MCS9) 11ax: 80MHz: -82 dBm(MCS0), -57 dBm(MCS9),-52 dBm(MCS11) |
| Max.Transmit Power |
Frequency bands using and the max EIRP: 5150-5250 MHz, max output power ≤ 30dBm & EIRP ≤ 36 dBm 5250-5350 MHz, max output power <24dBm & EIRP ≤ 30 dBm 5470-5725 MHz, max output power < 24 dBm & EIRP ≤ 30 dBm 5725-5825 MHz, max output power ≤ 30dBm & EIRP ≤ 36 dBm |
| Myanmar : 2400-2483.5 MHz, EIRP ≤ 23 dBm 5725-5825 MHz, EIRP ≤ 30 dBm Thailand: 2400-2483.5 MHz, EIRP ≤ 20 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5470-5725 MHz, EIRP ≤ 30 dBm 5725-5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400-2483.5 MHz, EIRP ≤ 27 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5725-5825 MHz, EIRP ≤ 23 dBm Egypt: 2400-2483.5 MHz, EIRP ≤ 20 dBm 5150-5350 MHz, EIRP ≤ 23 dBm" |
|
| Dimensions | 220 mm×220 mm×35 mm (excluding mounting kits) |
| Weight | 1.05 kg (excluding mounting kits) |
| Service Ports | 1 x 10/100/1000M/2.5G Base-T (PoE In); 1 x 10/100/1000M Base-T |
| LED Indicator | Single indicator (green light) |
| Power Supply | Local power supply, DC 12V/ 1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning: 802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) |
| Power Consumption | ≤ 25.4W |
| Environment | Operating temperature: 0°C~40°C |
| Storage temperature: -40°C~70°C | |
| Operating humidity: 5%~95% (non-condensing) | |
| Storage humidity: 5%~95% (non-condensing) | |
| Installation | Ceiling/wall-mountable |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >400000H |
Software Features |
|
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 512 Recommended number of clients: 120 Up to 8 SSIDs Support SSID hiding Configuring the authentication mode encryption mechanism VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication Support static Blocklists and Allowlists Support 802.1x Support WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, OWE, WPA3-SAE, WPA2-PSK/WPA3-S Support Blocklists / Allowlists Maximum 256 rules per SSID Maximum 1024 rules per AP |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Default Access/password | 10.44.77.254 The factory status password: admin |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
| Platform management features | Automatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform |
