Overview:

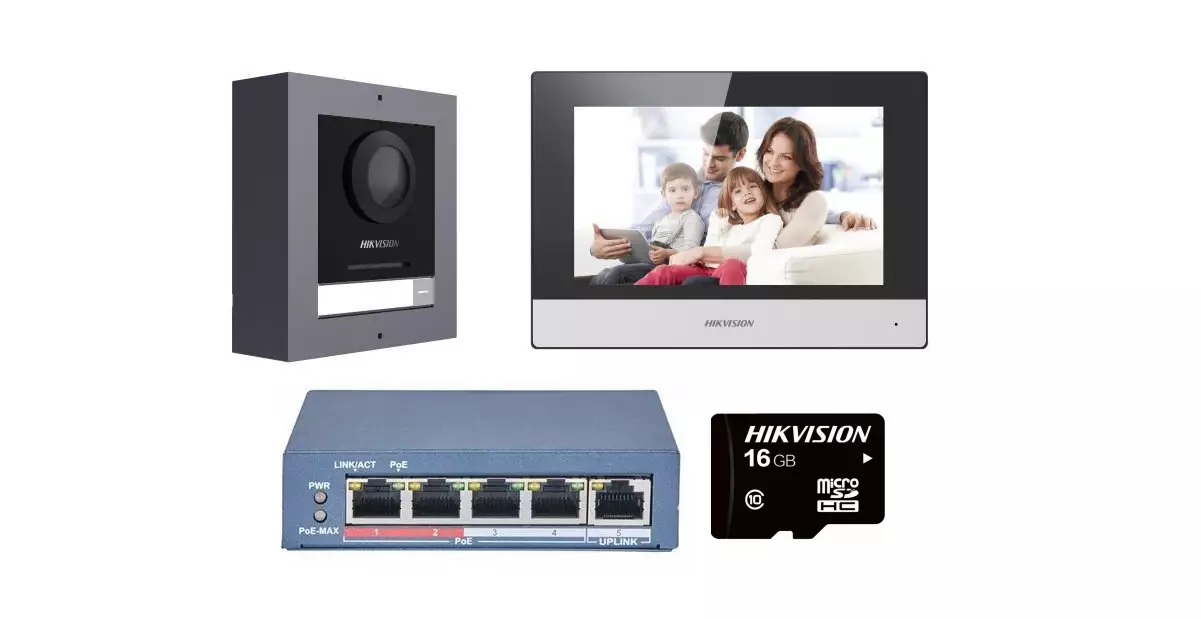

Hikvision 2nd Gen DS-KIS602(B) IP Video Intercom Kit, features:
- DS-KD8003-IME1/Surface x1
- DS-KH6320-WTE1 x1
- 4 port standard PoE switch x1
- 16GB TF card x1
| Specification | |
| Door station | |
| Operation system | Embedded Linux operation system |
| Flash | 32 MB |
| RAM | 256 MB |
| Door station | |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | Support |
| Field of view | Horizontal: 146°, Vertical: 82° |
| Video Compression Standard | H.264 |
| Motion detection | Support |
| Door station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Audio intercom | Two-way audio communication |
| Door station | |
| Network protocol | TCP/IP, RSTP |
| Wired network | 10/100 Mbps Ethernet |
| Door station | |
| Network interface | 1 RJ45 |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Debugging port | 1 |
| Lock control | 2 (2 relay, max to 30 V, 2 A) |
| TAMPER switch | 1 |
| Power interface | 12 VDC power output (max to 12 V, 500 mA) |
| Door station | |
| Power consumption | ≤ 5 W |
| Working temperature | -40° C to 60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Dimension | Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65") Cover:117 × 107 × 4 mm (4.61" × 4.21" ×0.16") Installation Frame:117 × 107 × 32.7mm (4.61" × 4.21" ×1.29") |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicator | 0 |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Indoor station | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station | |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Indoor station | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Indoor station | |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| RS-485 | 1 RJ-45 10/100 Mbps self-adaptive |
| Indoor station | |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Indoor station | |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9") |
