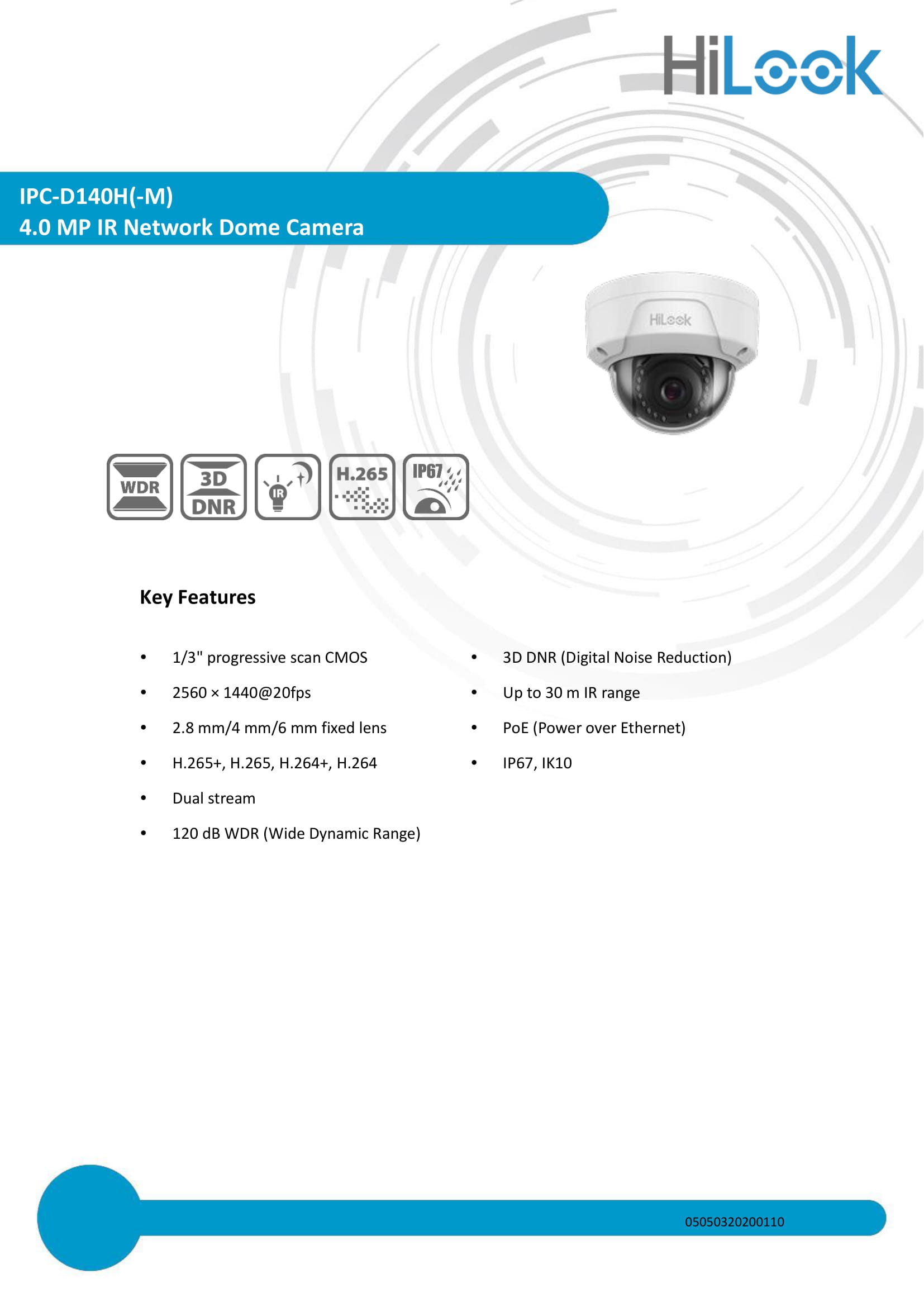

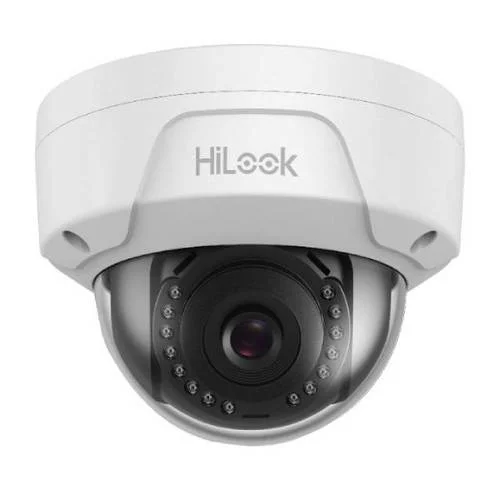

HiLook 4 MP Network IR Vandal Dome 2.8mm IPC-D140H

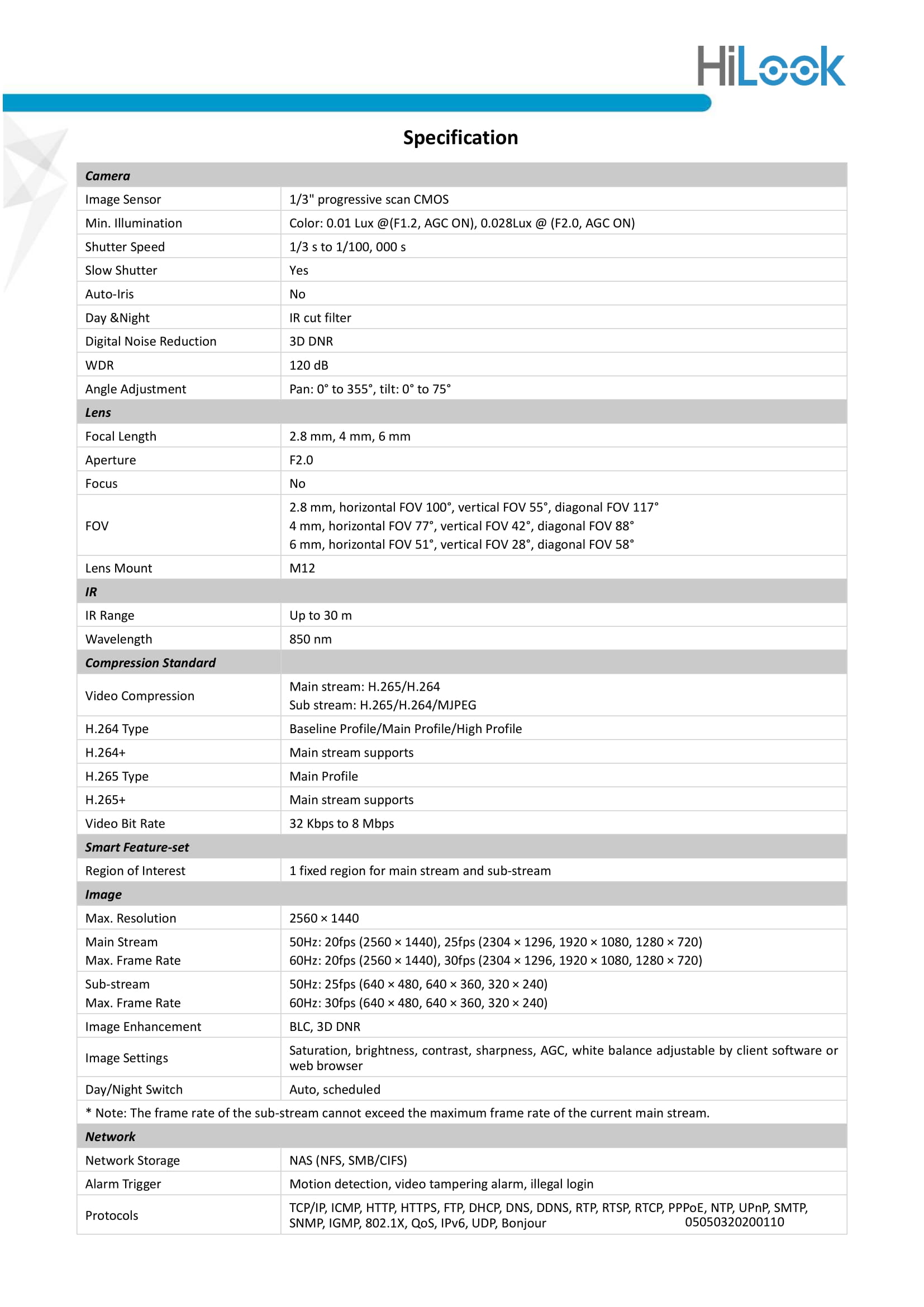

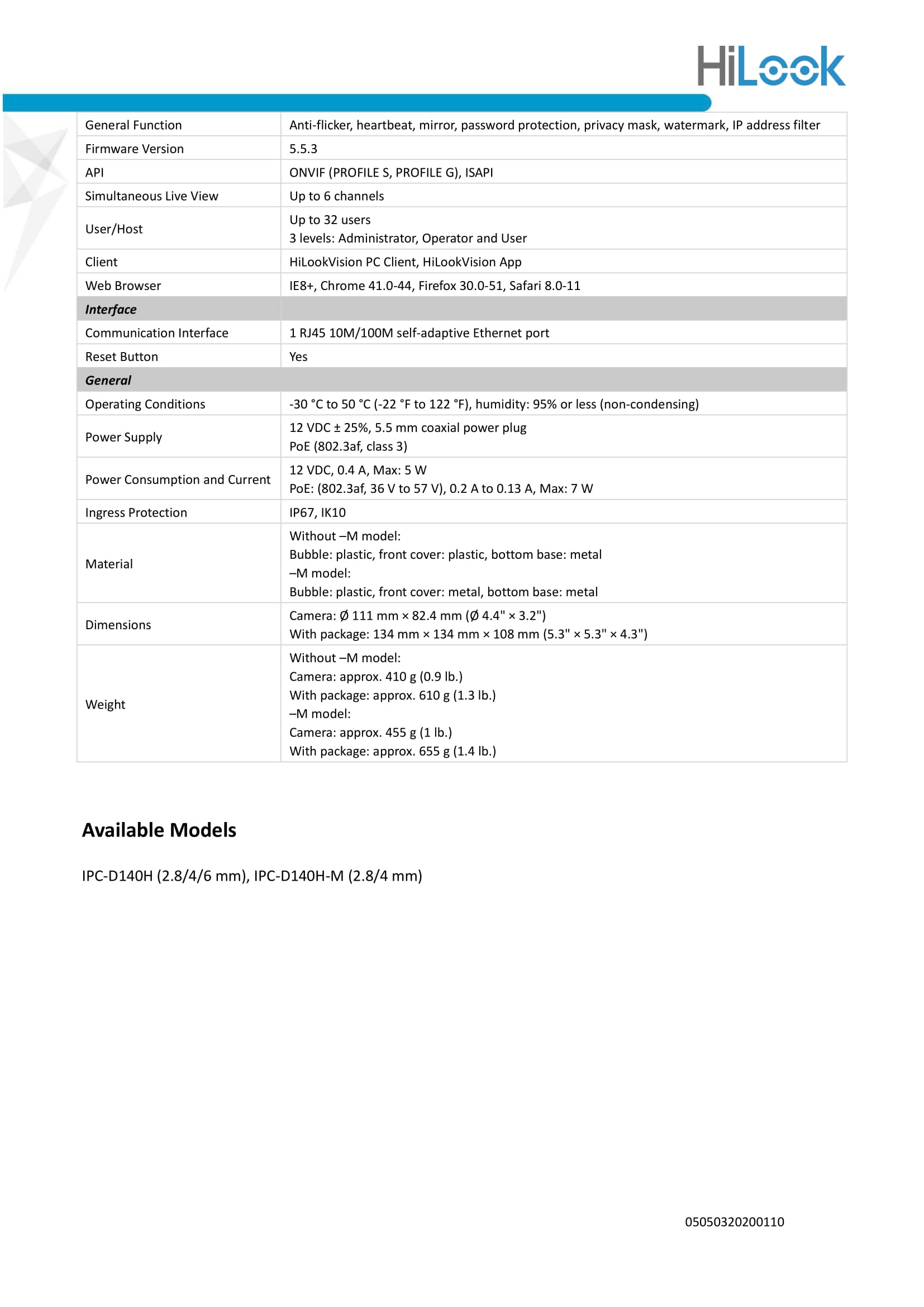

Specifications:
Image | |
Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/Night Switch | Auto, Schedule, Day, Night |
Image Enhancement | BLC, 3D DNR |
Interface | |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection, video tampering alarm, exception |
General | |
Linkage Method | Upload to FTP, notify surveillance center, send email |
Material | Aluminum alloy body |

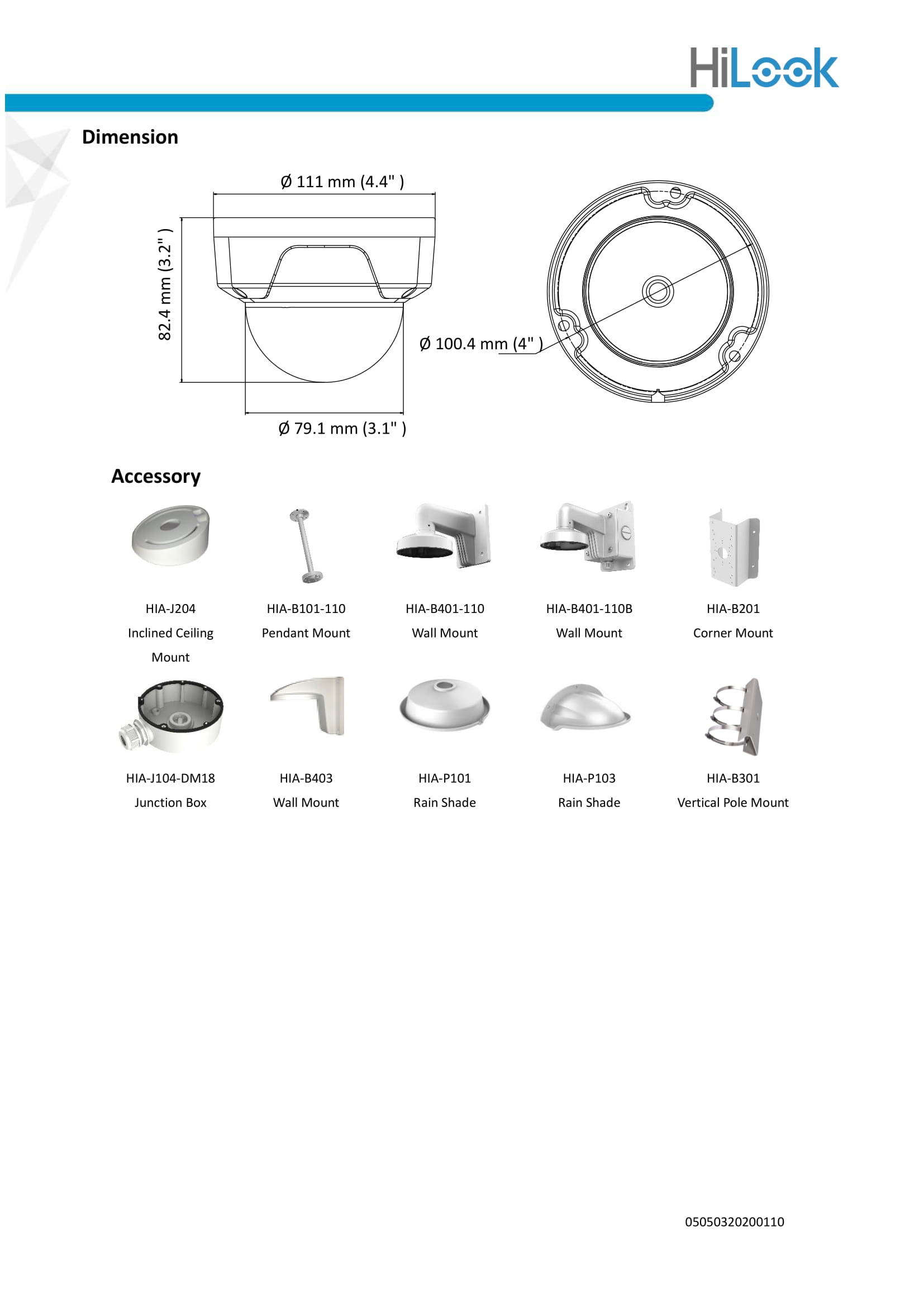

Dimension | Ø111 mm × 82.4 mm (Ø 4.4" × 3.2") |
Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
Weight | Approx. 360 g (0.8 lb.) |
With Package Weight | Approx. 560 g (1.2 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
Language | English, Ukrainian |
General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Firmware Version | V5.5.120 |
Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 |
Power Interface | Ø5.5 mm coaxial power plug |
Approval | |
EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
