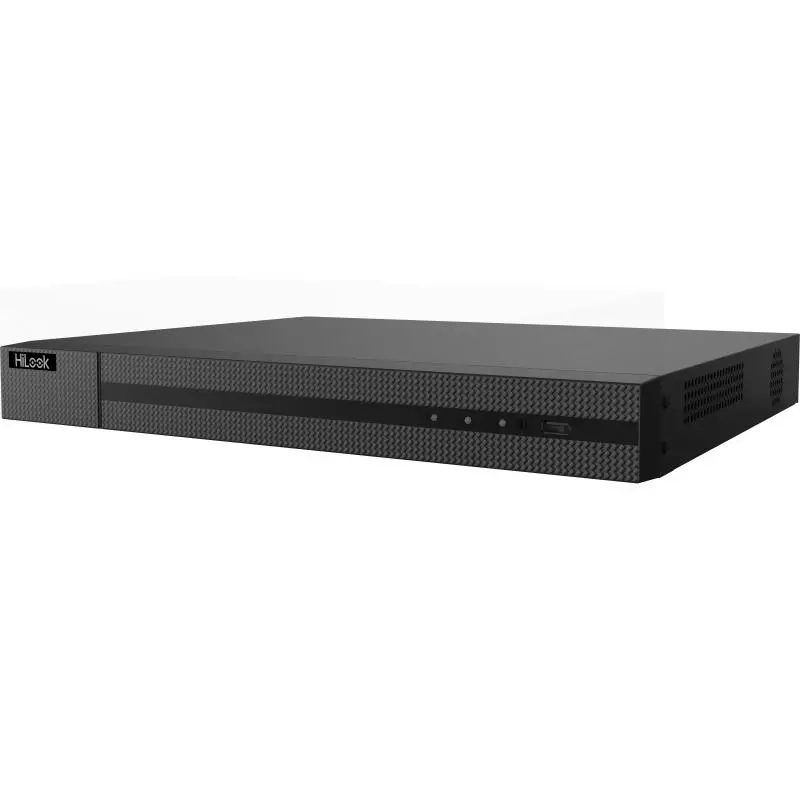

HiLook 16 Channel 5 MP 1U H.265 DVR DVR-216U-M2
Features:
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 24-ch IP camera inputs (up to 8 MP)
- Up to 8 MP@8 fps encoding capability
Specifications:
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0, enabled by default for all analogue channels; can classify humans and vehicles and significantly reduce false alarms from objects like leaves and lights |
| Quick Search | Supports quick search by object or event type |
| IP Video Input | 8 channels (up to 24 channels); Enhanced IP mode: 16 channels (up to 32 channels), each up to 4 Mbps; Up to 8 MP resolution; Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Analogue Video Input | 16 channels; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 8 MP (3840 × 2160) @ 15 fps; 8 MP (3840 × 2160) @ 12 fps; 3K (2960 x 1665) @ 20 fps; 5 MP (2560 × 1944) @ 20 fps; 5 MP (2560 × 1944) @ 12 fps; 4 MP (2560 × 1440) @ 30 fps; 4 MP (2560 × 1440) @ 25 fps; 3 MP @ 18 fps; 1080p @ 30 fps; 1080p @ 25 fps; 720p @ 30 fps; 720p @ 25 fps |
| AHD Input | 5 MP (2560 × 1944) @ 20 fps; 5 MP (2560 × 1944) @ 12 fps; 4 MP (2560 × 1440) @ 30 fps; 4 MP (2560 × 1440) @ 25 fps; 1080p @ 30 fps; 1080p @ 25 fps; 720p @ 30 fps; 720p @ 25 fps |
| HDCVI Input | 8 MP (3840 × 2160) @ 15 fps; 8 MP (3840 × 2160) @ 12 fps; 5 MP (2592 × 1944) @ 20 fps; 4 MP (2560 × 1440) @ 30 fps; 4 MP (2560 × 1440) @ 25 fps; 1080p @ 30 fps; 1080p @ 25 fps; 720p @ 30 fps; 720p @ 25 fps |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1 channel, 4K (3840 × 2160) @ 30Hz; 2K (2560 × 1440) @ 60Hz; 1920 × 1080 @ 60Hz; 1280 × 1024 @ 60Hz; 1280 × 720 @ 60Hz |
| VGA Output | 1 channel, 1920 × 1080 @ 60Hz; 1280 × 1024 @ 60Hz; 1280 × 720 @ 60Hz |
| Audio Input | 1 channel, RCA (2.0 Vp-p, 1 KΩ); 16 channels via coaxial cable |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Output | 1 channel, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1 channel, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) |
| Synchronous Playback | 16 channels |
| Recording | Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264; Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF; Frame Rate: Main Stream: 8 MP @ 8 fps; 3K @ 12 fps; 5 MP @ 12 fps; 4 MP @ 15 fps; 8 MP Lite @ 15 fps; 3 MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N); Sub-stream: WD1/4CIF/CIF @ 25 fps (P)/30 fps (N); Video Bitrate: 32 Kbps to 10 Mbps; Dual-stream Support; Stream Type: Video, Video & Audio; Audio Compression: G.711u; Audio Bitrate: 64 Kbps |
| Network | Total Bandwidth: 128 Mbps; Remote Connection: 128; Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF; Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface; Wi-Fi: Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| Auxiliary Interface | SATA: 2 SATA interfaces; Capacity: Up to 10 TB for each disk |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | Power Supply: 12 VDC, 5 A; Consumption: ≤ 25 W (without HDD); Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F); Working Humidity: 10% to 90%; Dimension (W × D × H): 384 × 315 × 52 mm (15.1 × 12.4 × 2.0 inch); Weight: ≤ 2 kg (without HDD, 4.4 lb.) |
