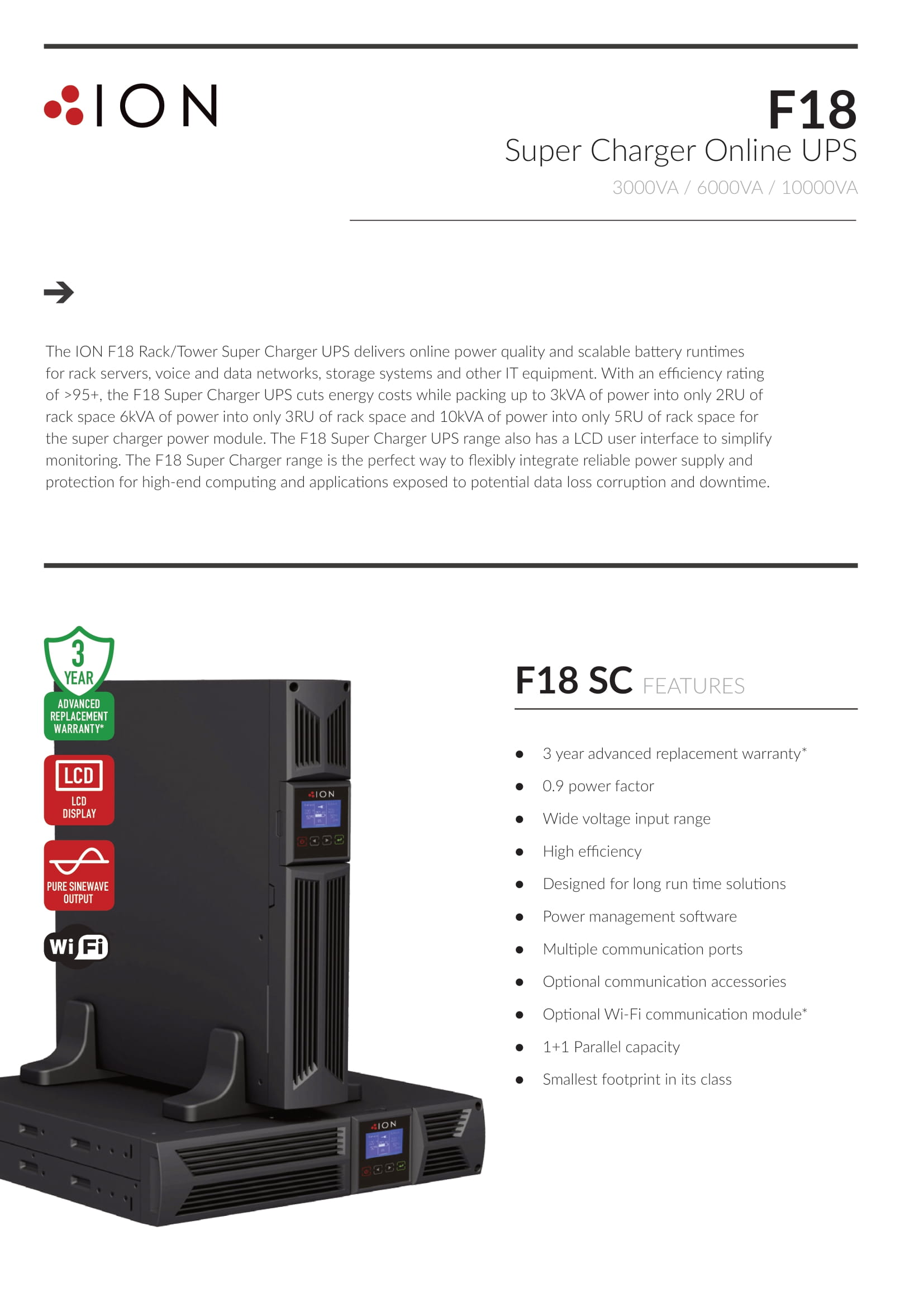

The ION F18 Rack/Tower UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment.
With an efficiency rating of >95+, the F18 UPS cuts energy costs while packing up to 3kVA of power into only 2RU of rack space 6kVA of power into only 3RU of rack space and 10kVA of power into only 5RU of rack space.
The F18 UPS range also has a LCD user interface to simplify monitoring. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss corruption and downtime.

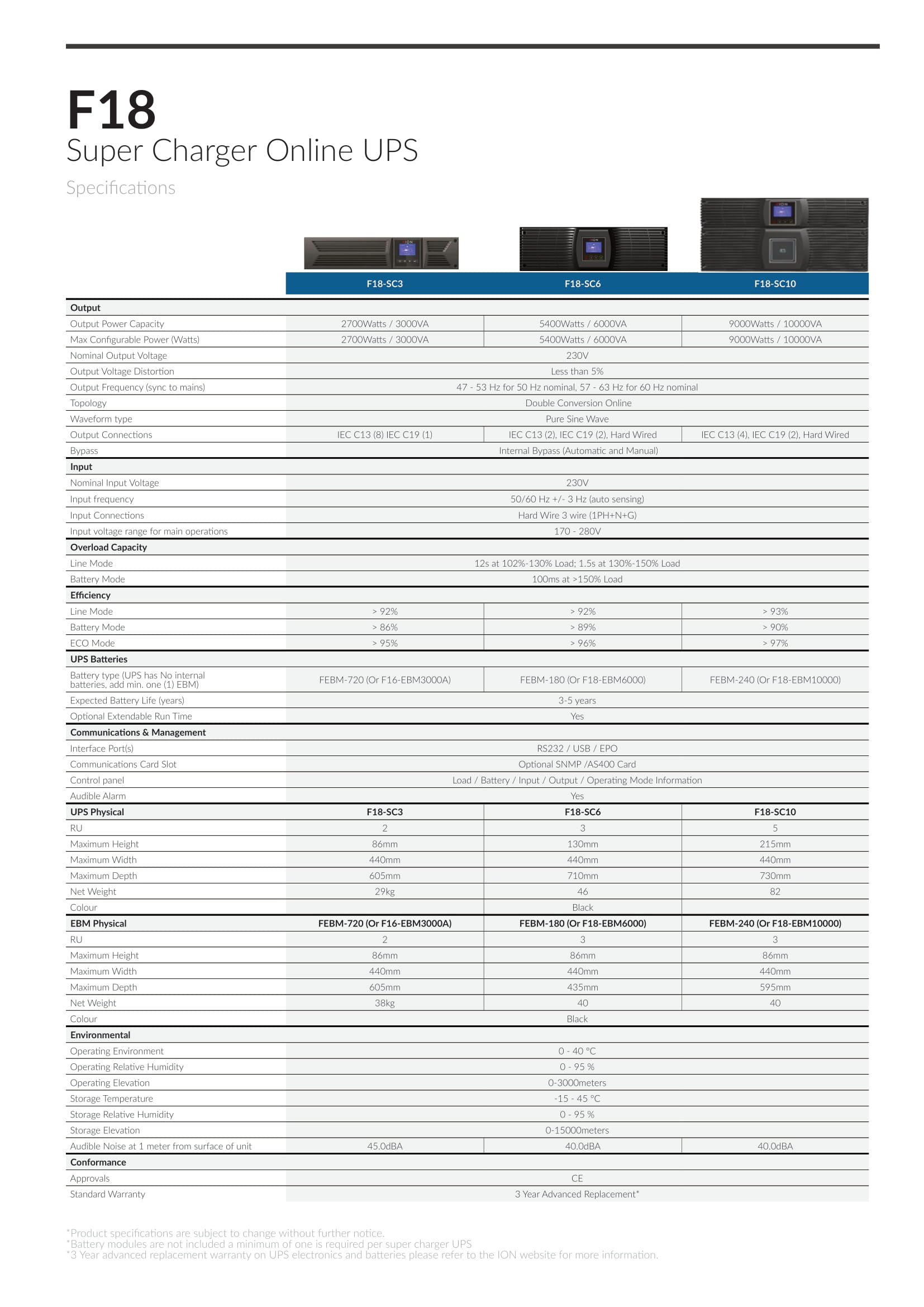

Specifications:
Output
Output Power Capacity
2700Watts / 3000VA
5400Watts / 6000VA
9000Watts / 10000VA
Max Configurable Power (Watts)
2700Watts / 3000VA
5400Watts / 6000VA
9000Watts / 10000VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology
Double Conversion Online
Waveform type
Pure Sine Wave
Output Connections
IEC C13 (8) IEC C19 (1)
IEC C13 (2), IEC C19 (2), Hard Wired
IEC C13 (4), IEC C19 (2), Hard Wired
Bypass
Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations
170 - 280V
Overload Capacity
Line Mode
12s at 102%-130% Load; 1.5s at 130%-150% Load
Battery Mode
100ms at >150% Load
Efficiency
Line Mode
> 92%
> 92%
> 93%
Battery Mode
> 86%
> 89%
> 90%
ECO Mode
> 95%
> 96%
> 97%
UPS Batteries
Battery type (UPS has No internal batteries, add min. one (1) EBM)
