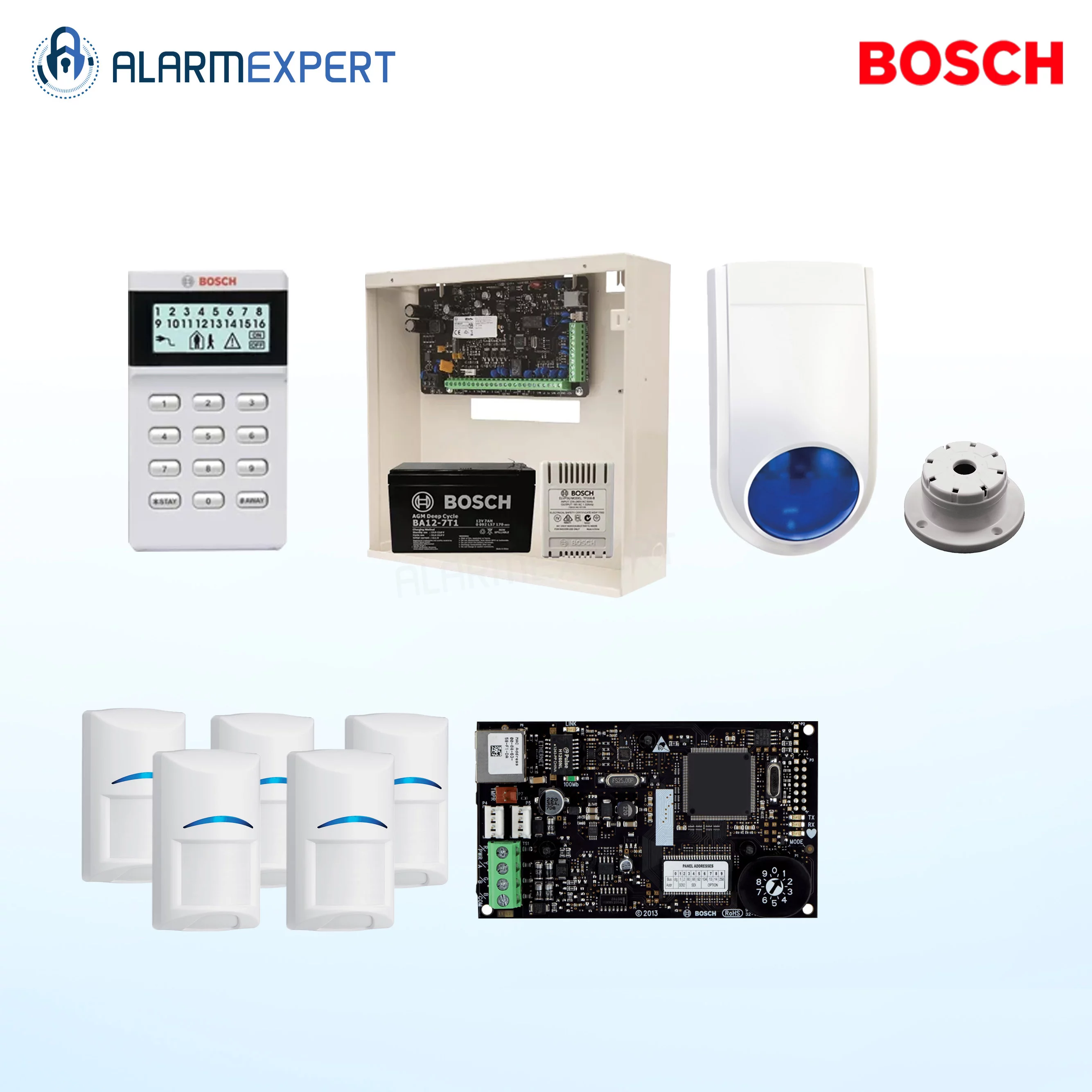

Bosch Solution 2000 IP + 5 PIRs + Icon Keypad

1X Bosch Solution 2000 PCB (ICP-SOL2-P)

ICP-SOL2-P Features:

• • • 8 Fully Programmable Zones,
    • 4 x Output, Max 2 Areas, 32 Users,
    • 4 x Keypad maksimum, 256 Max Events
    • Partitionable into 2 Separate Areas,
    • STAY / AWAY Arming Options,
    • 18VAC Power.

1X LCD Icon Keypad (IUI-SOL-ICON)

IUI-SOL-ICON Features:

• • • Single button arming of alarm system
    • Fire, medical, and panic alarms
    • Clear and easy to use
    • Backlit buttons for illuminated operation during day or night
    • Suits for Solution 2000/ 3000 Panel
    • Voltage: 12 VDC nominal
    • Mounting: Wall Mount.

1X Bosch Alarm 18V Power Plug TF008-B (0)

TF008-B Features:

• • • 240 VAC primary
    • voltage input. 18 VAC
    • 1.3 A secondary input
    • Includes thermal fuses and a three‑wire flying lead with an earth connection.

1X Bosch Solution 2000 Range Empty Metal Box (MW250)

MW250 Features:

• • • BOSCH MW250 metal enclosure suits solution 880/2000/3000 panels
    • 260w x 260h x 70d(mm) (ext dimensions).

1X Bosch Fire Fly type Slimline Siren with Strobe (WP06)

WP06 Features:

• • • Siren tone selectable for different applications
    • Sound volume adjustable: low dB for testing and high dB for regular operation
    • Loud: up to 110dB
    • Bright: new LED strobe design
    • Independent siren and strobe operation
    • High-quality UV-treated case
    • Weatherproof
    • Front and back tampers
    • EOLRs built-in, suitable for most major alarm panels
    • Dimensions 200 x 110 x 70mm.

1X Top Hat Piezo (WP08)

WP08 Features:

• • • Surface Mount
    • SPL: 105dB/m
    • Current: 110mA
    • Voltage: 12VDC.

1X Battery 12V 7Ah CJ12-7

CJ12-7 Features:

• • • CJ series is a general-purpose battery with five years of design life in float service.
    • It meets IEC and JIS standards.
    • With updated AGM valve-regulated technology and high-purity raw materials,
    • the CJ series battery has a reliable standby service life. It suits UPS/EPS, medical equipment, emergency lights, and security systems applications.
    • CJ12-7 (12V7Ah).

ISC-BPR2-W12 Features:

• • • Wall to Wall coverage – Superior catch performance within 12 m x 12 m (40 ft x 40 ft) coverage area
    • Non‑pet Proof
    • Dynamic Temperature Compensation – superior catch performance in any environment
    • Flexible Mounting Height, No Adjustments – reduce installation time and false alarms, improve catch performance
    • Self-locking Enclosure with Integrated Bubble Level – reduce installation time
    • Voltage (operating): 9 VDC to 15 VDC
    • Current (standby/alarm): 10 mA at 12 VDC
