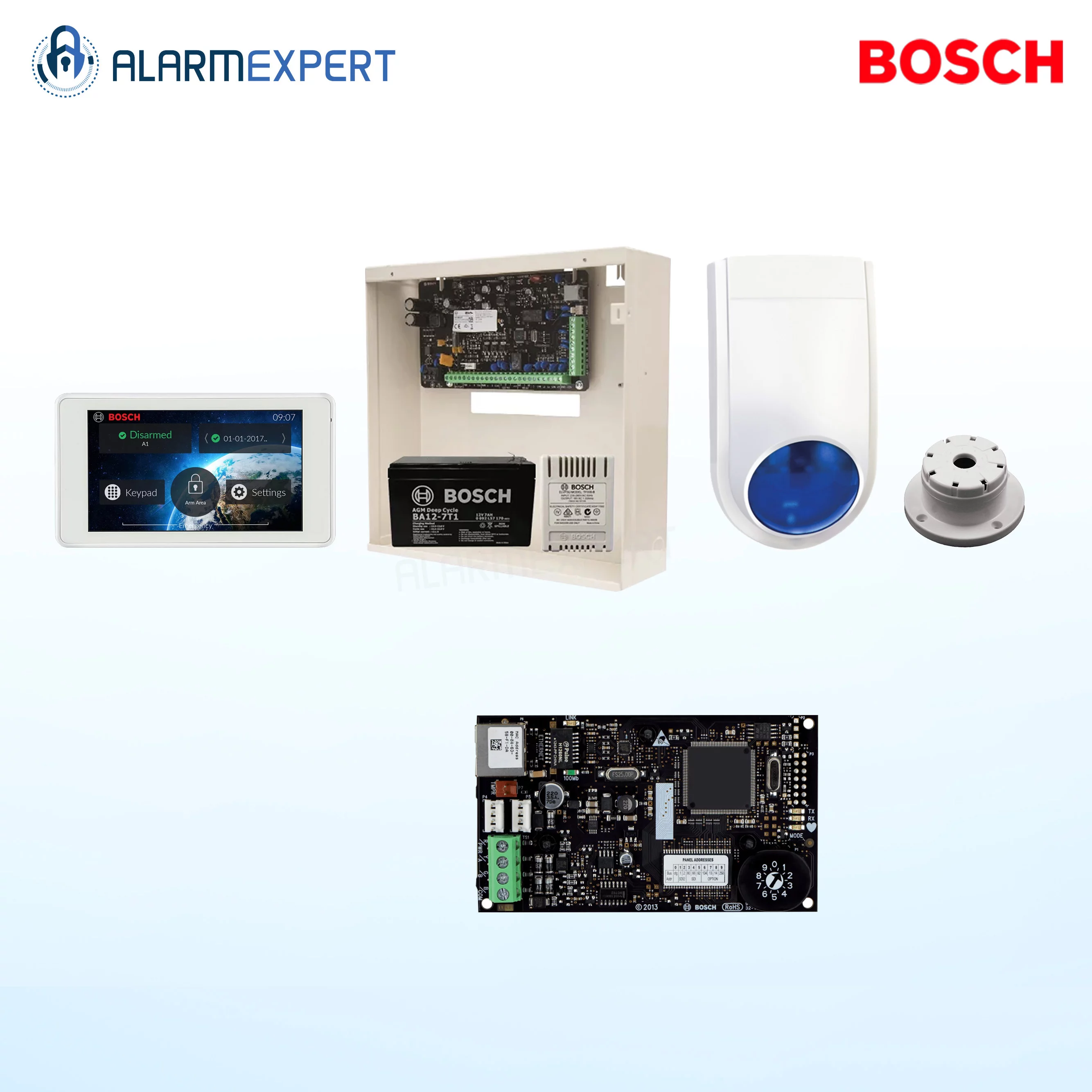

Bosch Solution 2000 IP + No Detector + 5" Touch screen Keypad

Panel

• • • 8 Fully Programmable Zones,
    • 4X Output, Max 2 Areas, 32 Users,
    • 4 X Keypad maksimum, 256 Max Events
    • Partitionable into 2 Separate Areas,
    • STAY / AWAY Arming Options,
    • 18VAC Power.

IP Module

• • • Supports mobile app communication for AMAX and Solution Series control panels
    • Full two-way IP event reporting with remote control panel programming support
    •  support DHCP, UPnP, and Auto IP addressing by default
    • 10/100 Base-T Ethernet communication for IPv6 and IPv4 networks
    • NIST-FIPS197 Certified for 128-bit to 256-bit AES Encrypted Line Security
    • Plug and Play installation, including UPnP service to enable remote programming behind firewalls
    • NIST-FIPS197 Certified for 128-bit to 256-bit AES Encrypted Line Security
    • Easy configuration.

Keypad

• • • 1280-pixel x 720-pixel resolution (Landscape)
    • Display: 5” Touch Screen With Backlit
    • Graphic interface consisting of intuitive icons and menus
    • Language option, individually selectable by the user
    • Setup wizard for easy configuration
    • Mounting: Wall Mount
    • Voltage: 12 VDC nominal
    • Suits for Solution 2000/3000 Alarm Panel.

Enclosure

• • • BOSCH MW250 metal enclosure suits solution 880/2000/3000 panels
    • 260w x 260h x 70d(mm) (ext dimensions).

Outdoor Siren

• • • Siren tone selectable for different applications
    • Sound volume adjustable: low dB for testing and high dB for normal operation
    • Loud: up to 110dB
    • Bright: new LED strobe design
    • Independent siren and strobe operation
    • High-quality UV-treated case
    • Weatherproof
    • Front and back tampers
    • EOLRs built-in, suitable for most major alarm panels
    • Dimensions 200 x 110 x 70mm.

Indoor Siren

• • • Surface Mount
    • Sound Pressure Level (SPL): 105dB/m
    • Current: 110mA
    • Voltage: 12VDC.

Battery

• • • CJ series is a general-purpose battery with five years of design life in float service.
    • It meets IEC and JIS standards.
    • With updated AGM valve-regulated technology and high-purity raw materials,
    • the CJ series battery has a reliable standby service life. It is suitable for UPS/EPS, medical equipment, emergency lights, and security systems applications.
    • CJ12-7 (12V7Ah).

Power Supply

• • • 240 VAC primary
    • voltage input. 18 VAC
    • 1.3 A secondary input
    • Includes thermal fuses and a three‑wire flying lead with an earth connection.
