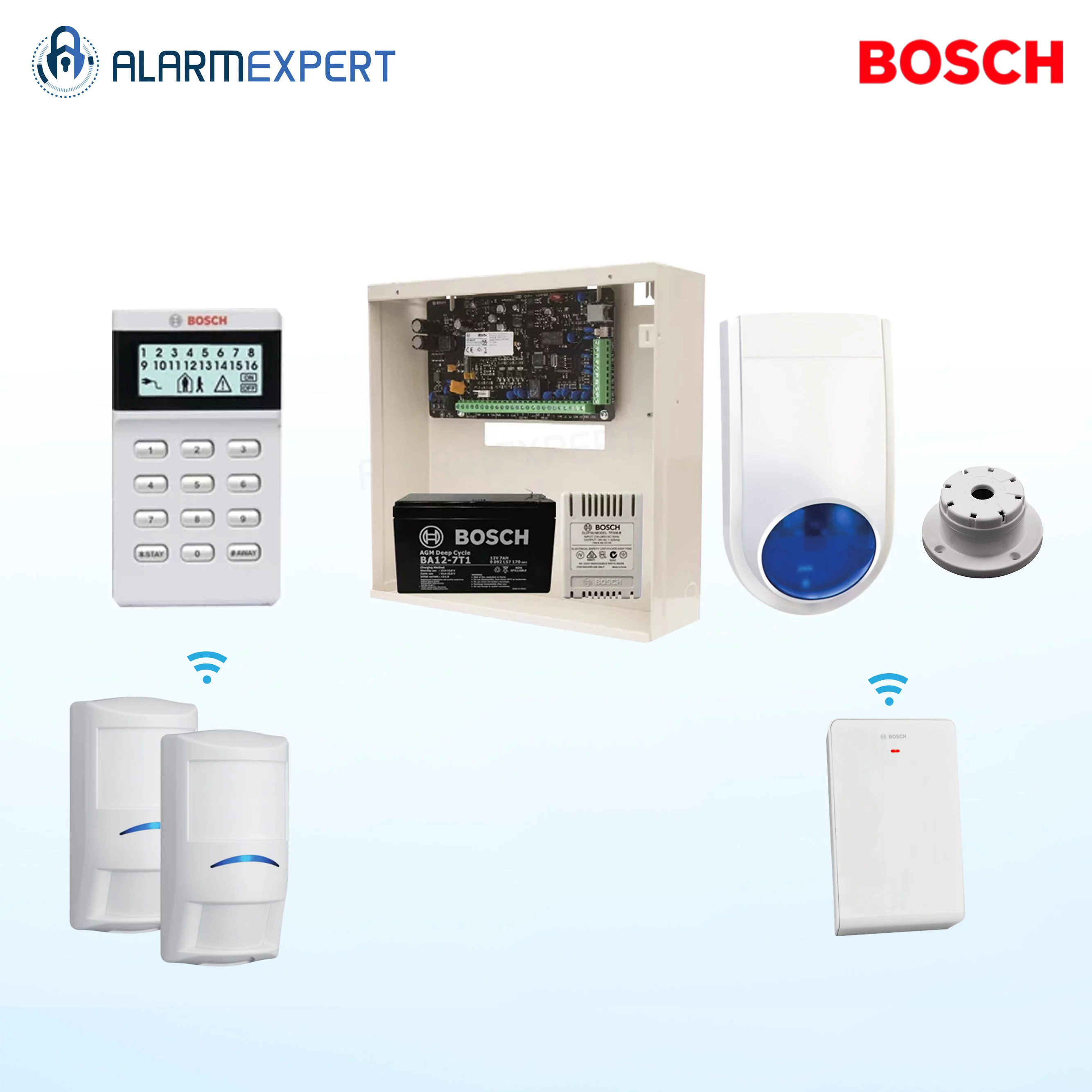

Bosch Solution 3000 + 2 Wireless PIRs + Receiver + Icon Keypad

Panel

• • • 16 Fully Programmable Zones
    • 33 Codes - 1 Installers, 32 User Codes
    • 16 Wireless Devices (on Solution 3000)
    • Partitionable into 2 Separate Areas
    • STAY / AWAY Arming Options
    • Power Requirements: 12 VDC, 6.5Ah from rechargeable sealed lead/acid
      battery

Keypad

• • • Single button arming of alarm system
    • Fire, medical, and panic alarms
    • Clear and easy to use
    • Backlit buttons for illuminated operation during day or night
    • Suits for Solution 2000/ 3000 Panel
    • Voltage: 12 VDC nominal
    • Mounting: Wall Mount.

Receiver

1X Wireless Receiver (B810)

• • • connects RADION wireless peripherals such as motion sensors and special detectors, keyfobs, panic buttons, door window
      contacts, repeaters, and more to Bosch-supported control panels using the SDI2 Bus connection.
    • Dual internal antennas provide spatial and polar RF signal reception for high reliability
    • Cover and wall tamper protection
    • Multiple device enrollment options, as well as RF diagnostics, ensure efficient and effective installation
    • Supports supervision of wireless points (504), keyfobs (1000), and repeaters (8)
    • External status LEDs
    • Detection and reporting of radio frequency interference

Sensors

• • • Coverage pattern for RADION PIR is up to: 12 m x 12 m (40 ft x 40 ft)
    • Two models are available, PIR and PIR C, for living spaces containing curtains
    • Flexible Mounting Height
    • Pet immunity signals caused by pets such as a dog up to 13 kg (30 lb) or two dogs at 27 kg (60 lb)
      or up to ten cats.
    • Surface or corner mount the PIR at a height between 2.1 m (7.0 ft) and 2.7 m (9.0 ft) high when installing
      the PIR, and 2.1 m (7.0 ft) and 2.6 m (8.5 ft) high when installing the PIR-C.
    • One CR123A Lithium battery, 3 VDC (Up to 5 years Operational)
    • Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions.

Enclosure

• • • BOSCH MW250 metal enclosure suits solution 880/2000/3000 panels
    • 260w x 260h x 70d(mm) (ext dimensions).

Outdoor Siren

• • • Siren tone selectable for different applications
    • Sound volume adjustable: low dB for testing and high dB for normal operation
    • Loud: up to 110dB
    • Bright: new LED strobe design
    • Independent siren and strobe operation
    • High-quality UV-treated case
    • Weatherproof
    • Front and back tampers
    • EOLRs built-in, suitable for most major alarm panels
    • Dimensions 200 x 110 x 70mm.

Indoor Siren

• • • Surface Mount
    • Sound Pressure Level (SPL): 105dB/m
    • Current: 110mA
    • Voltage: 12VDC.

Battery

• • • CJ series is a general-purpose battery with five years of design life in float service.
    • It meets IEC and JIS standards.
    • With updated AGM valve-regulated technology and high-purity raw materials,
    • the CJ series battery has a reliable standby service life. It is suitable for UPS/EPS, medical equipment, emergency lights, and security systems applications.
    • CJ12-7 (12V7Ah).

Power Supply

• • • 240 VAC primary
    • voltage input. 18 VAC
    • 1.3 A secondary input
    • Includes thermal fuses and a three‑wire flying lead with an earth connection.
