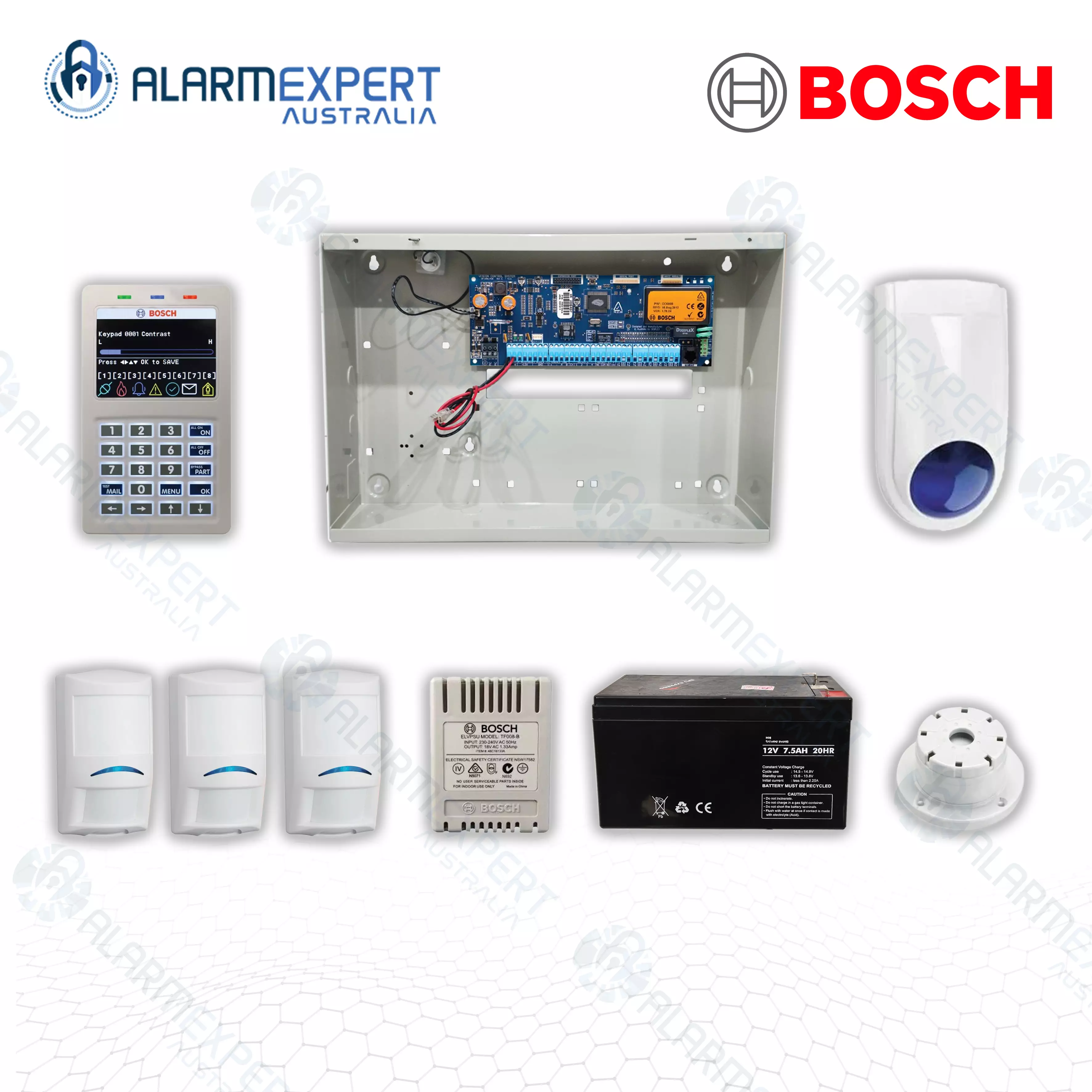

Bosch 6000 Smart Kit with 3 PIRs.

1x Bosch CC610PB Solution 6000 Control Panel PCB only

CC610PB Features:

• • • 16 on-board zones (expandable to 144 wired or wireless) , partitionable to 8 areas with 990 PIN, token, key fob and fingerprint users
    • Integrated access control for up to 16 doors
    • Proximity keypads, Weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available
    • 5 on-board outputs (expandable to 37)
    • GSM/GPRS and Ethernet options.

1X Enclosure (MW350)

MW350 Features:

• • • Suits Solution 6000, 144, 16i, and 16 Plus series
    • Room for five standard modules
    • Comes with tamper switch & bracket
    • Includes lid screws.

ISC-BPR2-W12 Features:

• • • Wall to Wall coverage – Superior catch performance
      within 12 m x 12 m (40 ft x 40 ft) coverage area
    • Non‑pet Proof
    • Dynamic Temperature Compensation – superior
      catch a performance in any environment
    • Flexible Mounting Height, No Adjustments – reduce
      installation time and false alarms, improve catch
      performance
    • Self-locking Enclosure with Integrated Bubble Level
      – Reduce installation time
    • Voltage (operating): 9 VDC to 15 VDC
    • Current (standby/alarm): 10 mA at 12 VDC.

1X Smart Keypad Included(CP736B)

CP736B Features:

• • • Customizable Installer banner display allowing you to personalise every installation with a Site Name,
      Company Name or Contact Number.
    • 3.5” Color graphical display with LED backlight
    • 40bit MiFare smart card reader built-in allows users to present
      a token or card at the keypad to arm or disarm the system,
    • Alpha-numeric text prompting/programming
    • Power: +12VDC, 110mA Max (LAN powered +9VDC - +16VDC).

1X Bosch Fire Fly type Slimline Siren with Strobe (WP06)

WP06 Features:

• • • Siren tone selectable for different applications
    • Sound volume adjustable: low dB for testing and high dB for normal operation
    • Loud: up to 110dB
    • Bright: new LED strobe design
    • Independent siren and strobe operation
    • High-quality UV-treated case
    • Weatherproof
    • Front and back tampers
    • EOLRs built-in, suitable for most major alarm panels
    • Dimensions 200 x 110 x 70mm.

1X Top Hat Piezo (WP08)

WP08 Features:

• • • Surface Mount
    • SPL: 105dB/m
    • Current: 110mA
    • Voltage: 12VDC.

1X General Battery (CJ12-7)

CJ12-7 Features:

• • • CJ series is a general-purpose battery with five years of design life in float service.
    • It meets IEC and JIS standards.
    • With updated AGM valve-regulated technology and high-purity raw materials,
    • the CJ series battery has a reliable standby service life. It suits UPS/EPS, medical equipment, emergency lights, and security systems applications.
    • CJ12-7 (12V7Ah).

1X Bosch Alarm 18V Power Plug (TF008-B)

TF008-B Features:

• • • 240 VAC primary
    • voltage input. 18 VAC
    • 1.3 A secondary input
    • Includes thermal fuses and a three‑wire flying lead with an earth connection.
