Bosch Standalone Receiver Blue 2 X SPDT 12/24V AC/DC HCR-BU2

Overview:

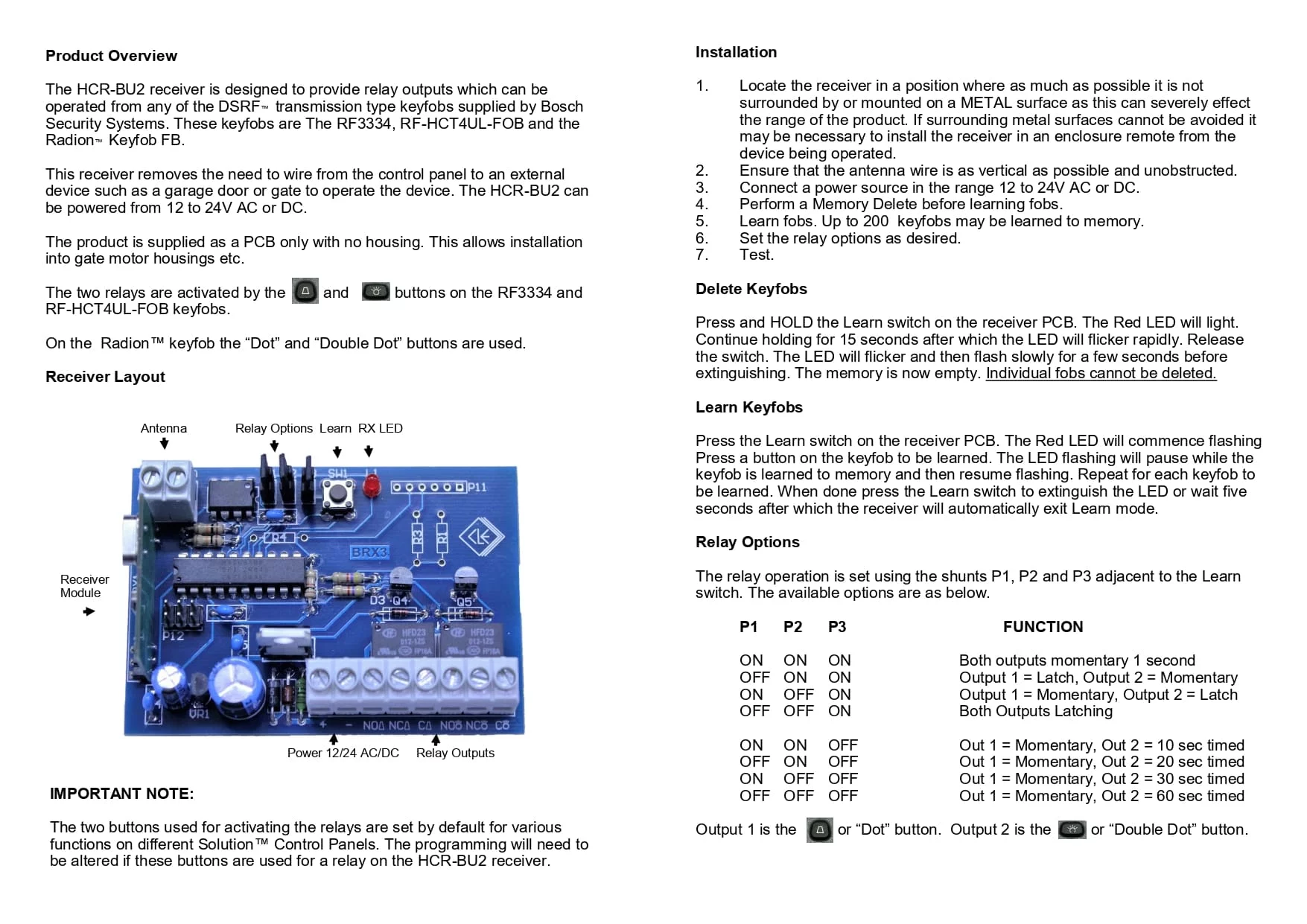

Bosch DSRF 2 Channel Relay Output Receiver (HCR-BU2)

The HCR-BU2 receiver is designed to provide relay outputs that can be
operated from any of the DSRF transmission-type keyfobs supplied by Bosch
Security Systems. These keyfobs are The RF3334, RF-HCT4UL-FOB and the
Radion Keyfob FB.
This receiver removes the need to wire from the control panel to an external
device such as a garage door or gate to operate the device. The HCR-BU2 can
be powered from 12 to 24V AC or DC.

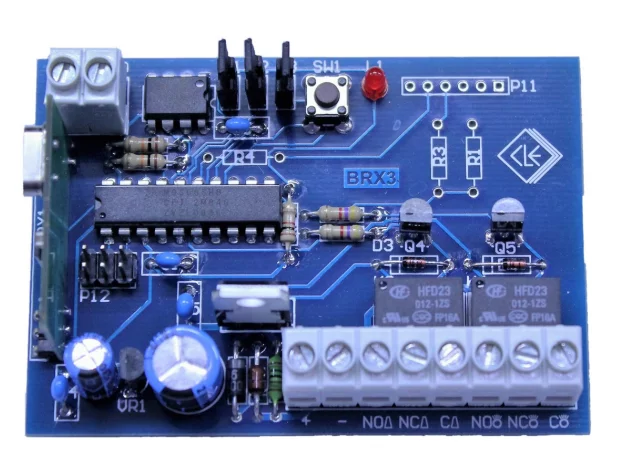

The product is supplied as a PCB only with no housing. This allows installation
into gate motor housings etc.

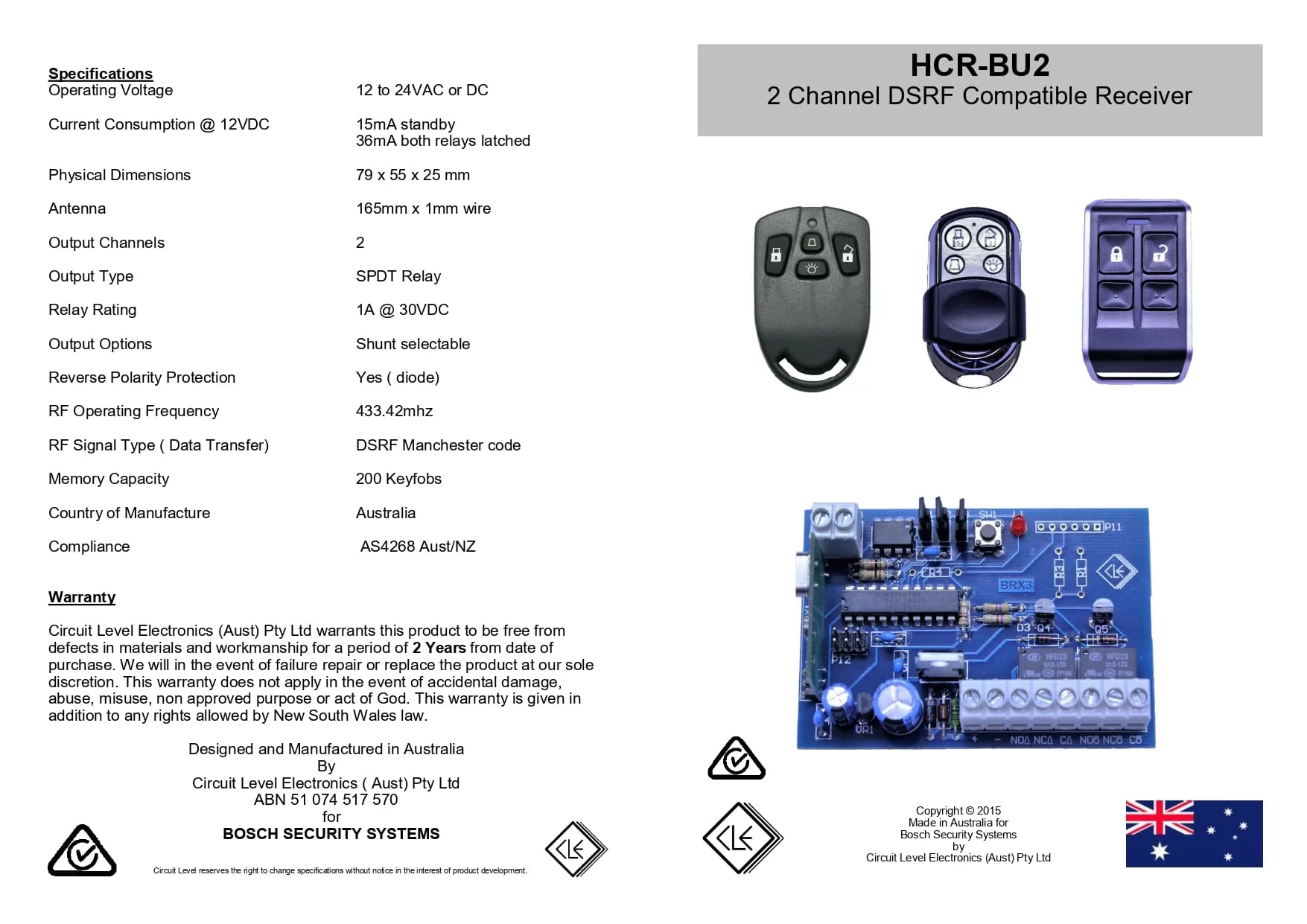

• Operating Voltage 12 to 24VAC or DC
• Current Consumption @ 12VDC 15mA standby 36mA both relays latched
• Antenna 165mm x 1mm wire Output
• Channels 2 Output Type SPDT Relay Rating 1A @ 30VDC
• Output Options DIP switch selectable
• Reverse Polarity Protection Yes ( diode)
• RF Operating Frequency 433.42mhz RF Signal Type
• Memory Capacity 200 Keyfobs.
