Dahua 2 MP Bullet 100W Solar Camera System Kit

Dahua 2 MP Bullet 100W Solar Camera System Kit

Name: Dahua 2 MP Bullet 100W Solar Camera System Kit
Brand: DAHUA
SKU: KIT/DH-PFM378-B100-WB/PFM372-L45-4S14P/DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
Price: 2316.23 AUD
Availability: OutOfStock

Out of stock

Exc. GST

$2,105.66

Inc. GST

$2,316.23

Eligible Coupon

Quantity

SKU: KIT/DH-PFM378-B100-WB/PFM372-L45-4S14P/DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
Categories: CCTV, BRANDS

Frequently Bought Together

Overview :

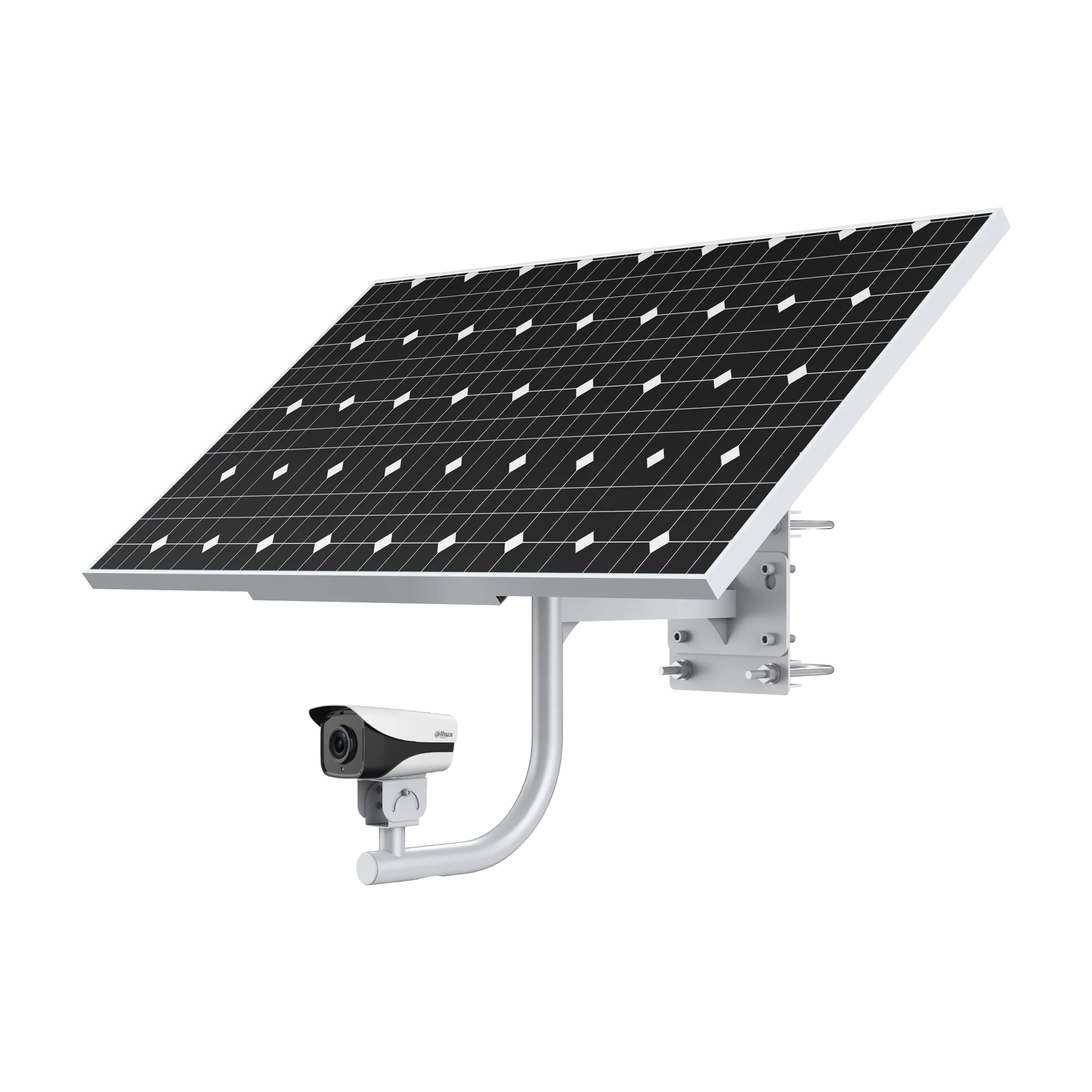

Dahua 2 MP Bullet 100W Solar Camera System Kit

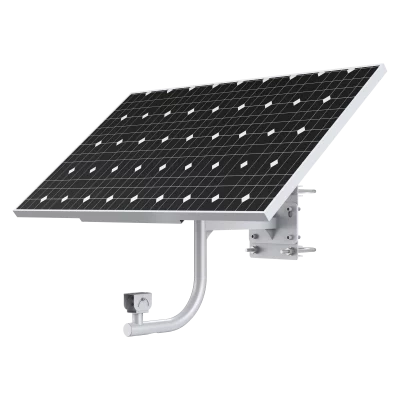

1 x DH-PFM378-B100-WB

Integrated design, easy to install.
Pole mount.
Flexible angle adjustment of the solar panel and the camera.
100W Monocrystalline solar panel.
Built sturdy to resist storms with sustained winds up to 117 km/h.
Remote monitoring available through the mobile app.
Maximum Power Point Tracking (MPPT) charging controller.
RS-485 communication function.
Electric protection.

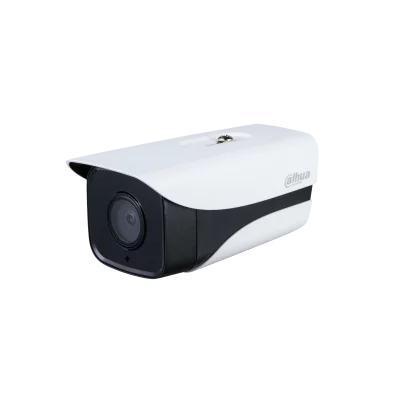

1 x DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120

1/2.9'' 2Megapixel progressive CMOS
H.265&H.264 dual-stream encoding
25/30fps@2M(1920 x 1080)
Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) &DMSS
Micro SD card slot, up to 256GB
3.6mm,6mm fixed lens
Max. IR LEDs Length 40m
4G supported
IP67

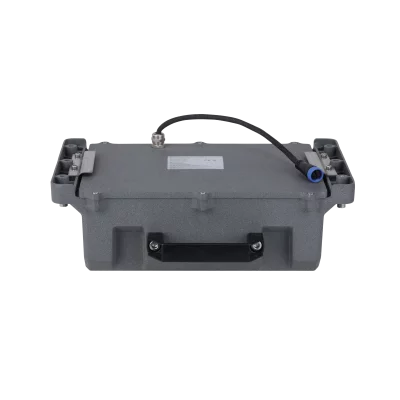

1 x PFM372-L45-4S14P

Integrated Solar Lithium Battery
Die casting aluminum material, IP66 protection grade
Simple structure, compact and light
Applicable to the integrated solar system DH-PFM364L-D1, DH- PFM363L-D1, and DH-PFM363L-SD1

Specification DH-PFM378-B100-WB :

Solar Panel

Type

Monocrystalline silicon

Max. Power

100 W

Output Voltage

18.8 VDC

Solar Cell Efficiency

21%

Max. Mechanical Load

5400 Pa

Controller

Type

MPPT

Operating Voltage

12 VDC

Rated Charging Current

10 A

Rated discharge current

10 A

MPPT Tracking Efficiency

≥ 99%

Communication Mode

RS485

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Rated Charging Power

130 W

Over-discharge Protection Voltage

11.1 VDC

Others

Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load.

Port

Power Output

Φ5.5 mm × Φ2.1 mm × 12 mm

(Φ0.22" × Φ0.08" × 0.47")

RS–485

Red: RS485-A
Black: RS485-B

Output Port

CSA authorized M15 2-core waterproof connector (connected to lithium battery)

General

Main Body Material

Q235

IP Rating

IP65

Installation

Pole mount, Φ80mm~Φ150mm

Adjustable Angle

Solar panel: H: 360°, V: 20°/40°/60°

Camera: H: 360°, V: 0°–75°

Product Dimensions

815mm x 846.8mm x 893.3mm

(32.1” x 33.3” x 35.2”)

Packaging Dimensions

880 mm × 765 mm × 275 mm (34.65" × 30.12" × 10.83")

Packaging Method

1 pc in each carton

Net Weight

20.1 kg (44.31 lb)

Gross Weight

23.8 kg (52.47 lb)

Environment

Operating Altitude

< 3000 m (9842.5 ft)

Applicable Area

Areas with daily exposure to solar radiation for more than 3.5 hours

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

< 95% (RH)

Storage Temperature

0 °C to 40 °C (32 °F to 104 °F)

Storage Humidity

< 95% (RH)

Certifications

CE: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014

UKCA: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014

Specification DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120:

Technical Specification

Model

DH-IPC-HFW4230M-4G-AS-I2

Camera

Image Sensor

1/2.9” 2Megapixel progressive scan CMOS

Effective Pixels )

1920(H) x 1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Minimum Illumination

0.04Lux/F2.0( Color,1/3s,30IRE)

0.22Lux/F2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 56dB

IR Distance

Distance up tp 40m (131.2ft)

IR On/Off Control

Auto/ Manual

IR LEDs

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

3.6mm (6mm optional)

Max. Aperture

F2.0

Angle of View

H: 82.5° (51.5°), V: 44° (29.5°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.9m(2m)

29.5ft(6.56ft)

DORI

Distance

Lens

Detect

Observe

Recognize

Identify

3.6mm

53m(174ft)

21m(69ft)

10m(33ft)

5m(17ft)

6mm

80m(262ft)

32m(105ft)

16m(52ft)

8m(26ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265/H.264

Streaming Capability

2 Streams

Resolution

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

Frame Rate

Main Stream: 1080P@25fps

Sub Stream: D1@25fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32~10240Kbps H.265: 12~6400Kbps

Day/Night

Auto ICR

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization

(EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

N/A

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Mobile Communication

Operating band

Model 1: TDD-LTE:Band38/39/40/41 FDD-LTE:Band1/3/5/8 WCDMA:Band1/8 TD-SCDMA:Band34/39 EVDO/CDMA1X:BC0 GSM:Band3/8 Model 2: FDD-LTE:Band1/2/3/4/5/7/8/20 UMTS:Band1/2/5/8 GSM:850/900/1800/1900

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS Local PC for instant recording Mirco SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Interface

Audio Interface

1/1 channel In/Out

Alarm

2 channel In: 500mA 5VDC

2 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V±30%

Power Consumption

3.6W, 9.5W(IR on); 6W(4G on, IR off)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”)

Net Weight

0.7kg (1.54lb)

Gross Weight

0.8kg (1.76lb)

Electrical

Power Supply

DC12V±30%

Power Consumption

3.6W, 9.5W(IR on); 6W(4G on, IR off)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

Dimensions

194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”)

Net Weight

0.7kg (1.54lb)

Gross Weight

0.8kg (1.76lb)

Specification DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120:

Protection

Grade

IP66

Connection

M15 female connector

Application

Applicable Device

DH-PFM364L-D1, DH-PFM363L-D1, and DH-PFM363LSD1

General

Product Dimensions

Outer: 359.8 mm × 268.7mm × 116.0 mm(14.17" × 10.58" × 4.57") Inner: 282.0 mm × 209.0 mm × 98.5 mm (11.10" × 8.23" × 3.88")

Material

Die casting aluminum

Color

Grey

Net Weight

8.5 kg (18.74 lb)

Gross Weight

9.8 kg (21.61 lb)

Packaging Dimensions

459 mm × 349 mm × 209 mm
(18.07" × 13.74" × 8.23")

Packaging Method

1 pc in each carton

Environment

Operating Temperature

–20°C to 60°C (–4°F to 140°F)

Operating Humidity

<95% (RH)

Storage Temperature

0°C to 40°C (32°F to 104°F)

Storage Humidity

<95% (RH)

Function

Charging Current

Discharge Current

Rated Voltage

DC12.8V

Internal Resistance

≤80mΩ

Nominal Capacity

45Ah

Charging Voltage

Max.DC14.6V

Max.Current

Charging: 10A, Discharging: 10A

Certification

CE: EN 61000-6-3, EN IEC 61000-6-1

FCC: FCC Part 15, Subpart B

BRAND

BRAND DAHUA

Cameras

CAMERAS MEGAPIXEL 2 MP (1080 P)
CAMERA QUANTITY 1 CAMERA
CAMERAS LENS SIZE 6 mm, 3.6 mm
CAMERAS LENS TYPE FIXED
IR DISTANCE Up to 40m
CAMERA QUANTITY 1 CAMERA
RAM 256 MB
VIDEO COMPRESSION CAMERA H.265, H.264, MJPEG
BUILT-IN 256 G Micro SD card, 2 channel In 2 channel Out
ROM 32MB
DORI DISTANCE 3.6mm Detect: 53m(174ft) Observe: 21m(69ft) Recognize: 10m(33ft) Identify: 5m(17ft), 6mm Detect: 80m(262ft) Observe: 32m(105ft) Recognize: 16m(52ft) Identify: 8m(26ft)
CAMERA POWER CONSUMPTION Basic: 3.6 W (12 VDC)

CCTV CAMERA

BODY TYPE BULLET
CAMERA TYPE IP CAMERA
SMART FEATURE MOTION DETECTION
PROTECTION IP67

DEVICE TYPE

DEVICE TYPE Cameras

POWER

POWER SUPPLY DC12V±30%

GLOBAL WARRANTY

WARRANTY 3 Years
