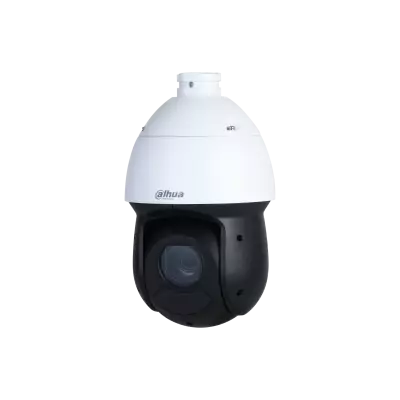

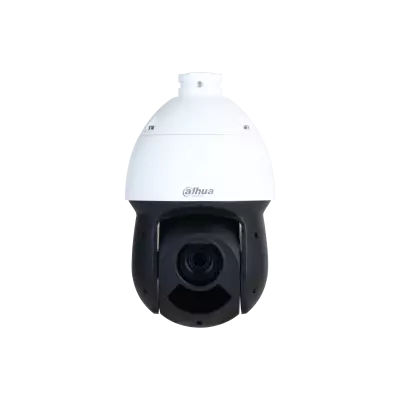

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight Technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day.
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel |
2 MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
1/1 s–1/30,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
Color: 0.005 lux@F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
100 m (328.08 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Zoom Prio; Manual; Smart IR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
3 (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
4.8 mm–120 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6–F3.5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
25x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
Auto; semi-auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.1 m–1.5 m (0.33 ft–4.92 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Auto |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
1,613 m (5,291.99 ft) |
646 m (2,119.42 ft) |
323 m (1,059.71 ft) |
161 m (528.22 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range |
Pan: 0° to 360° endless |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed |
Pan: 0.1°/s–80°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed |
Pan: 80°/s; Tilt: 80°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset |
300 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tour |
8 (up to 32 presets per tour) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pattern |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scan |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion |
Preset;Pattern;Tour;Scan |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Protocol |
DH-SD |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
Supports face detection, capturing pictures, and face enhancement |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD |
SMD 3.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Patrol |
It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream: 1080p/960p/720p@(1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 1792 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto (ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
2D NR; 3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Stabilization |
Electronic (EIS) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
Electronic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
16× |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
180° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
Up to 24 areas can be set, with up to 8 areas in the same view |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
≥ 55 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
CGI; Dahua SDK; API; SDK; ONVIF (Profle S&G&T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method |
Unicast/Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 (total bandwidth: 64 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; Micro SD card (512 GB); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE 7 and later versions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
DMSS; DSS Pro |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client |
iOS; Android; iPhone; iPad |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: EN55032/EN55024/EN50130-4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 channel (LINE IN, bare wire) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1 channel (LINE OUT,bare wire) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Capture; preset; tour; pattern; recording; alarm digital input; audio; send email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm I/O |
2/1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio I/O |
1/1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC/3 A (± 10%) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 12 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
270.4 mm × Φ160.0 mm (10.65" × Φ6.30") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
2.4 kg (5.29 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
3.9 kg (8.60 lb) |
