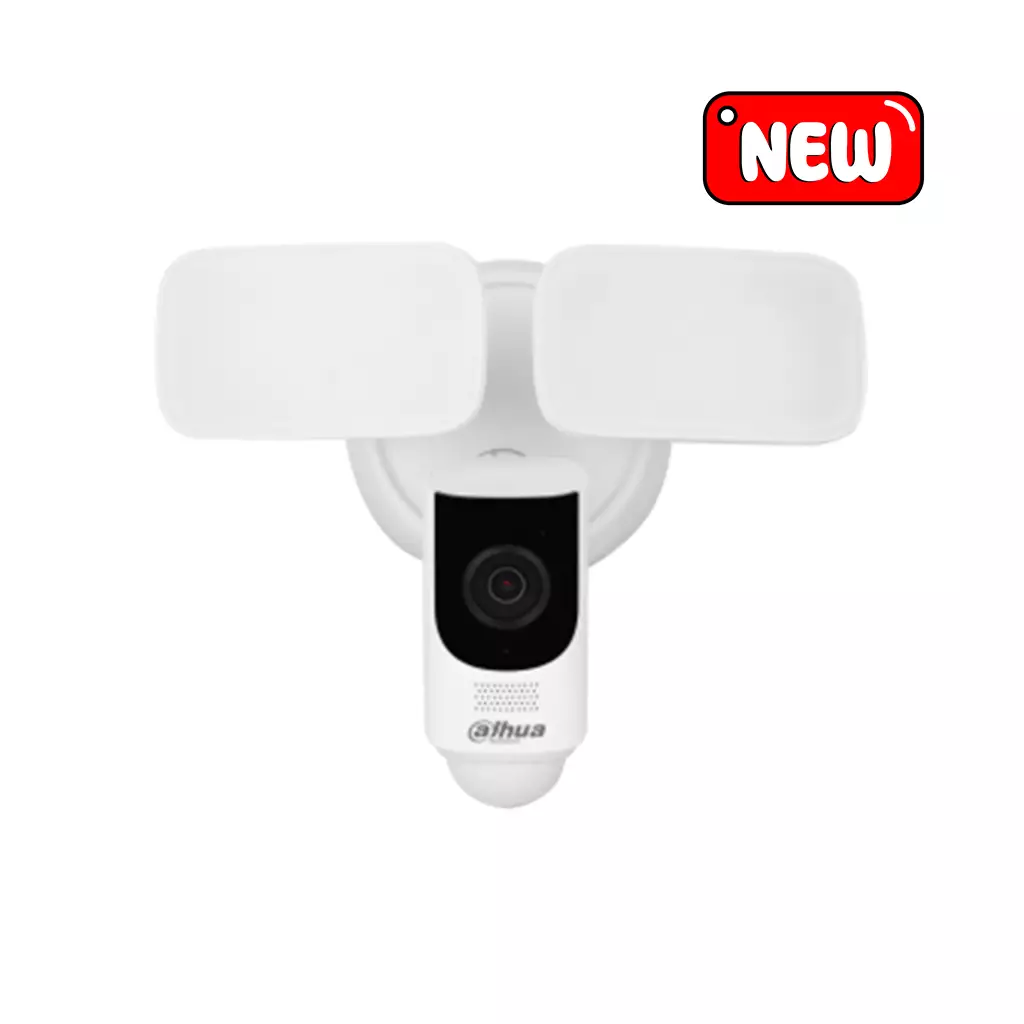

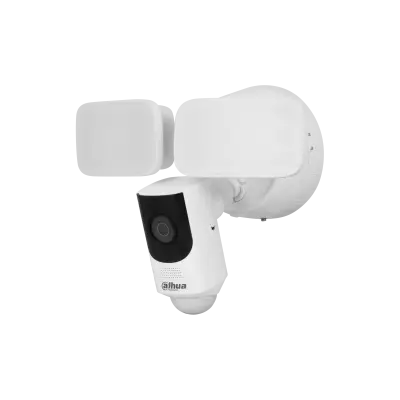

Dahua 4MP Fixed-focal Floodlight Network Camera - DH-IPC-WL46AP

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.6 (Color,30 IRE)
0.0005 lux@F1.6 (B/W,30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

10 m (32.81 ft) (IR);
30 m (98.43 ft) (Floodlight)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

1 (IR LED); 2 (Floodlight, color can be switched between warm and cool)

Floodlight Brightness

1500-2400 lm

Floodlight Color Temperature

3000K±200K (warm);
6000K±300K (cool)

Floodlight Modes

Motion Activation
Manual
Schedule
PIR Activation

Pan/Tilt/Rotation Range

Camera:
Pan: –85° to +85°
Tilt: –90° to +45°
Rotation: 0° to +360°
Floodlight:
Tilt: –90° to +90°
Rotation: –145° to +145°

PIR Sensor Distance

10 m (the height of the device is 3  m, placed at an angle of 30° from the horizontal)

PIR Detection Range

270°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F1.6

Field of View

H: 98°; V: 55°; D: 115°

Iris Control

Fixed

Close Focus Distance

1.0 m (3.28 ft)

DORI Distance

Detect

Observe

Recognize

Identify

61.2 m (200.79 ft)

24.5 m

(80.38 ft)

12.2 m

(40.03 ft)

6.1 m

(20.01 ft)

Video

Video Compression

H.264B; H.264; H.264H; H.265; MJPEG

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream:

2560 × 1440@(1–25 fps)

2560 × 1440@(1–30 fps)

Sub stream 1:

704 × 576@(1–25 fps)

704 × 480@(1–30 fps)

Sub stream 2:

640 × 480@(1 fps–25 fps)

640 × 480@(1 fps–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 1M (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 32 kbps–8192 kbps;
H265: 32 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Privacy Masking

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; security exception; motion detection; video tampering; sence changing; SMD (human, animal and vehicle); audio detection; intensity change

Network

Wi-Fi

IEEE802.11a/b/g/n/ac 2.4–2.4835GHz & 5.18–5.85GHz

SDK and API

Yes

Cyber Security

Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPV4; IPV6; ARP&Ping; TCP; UDP; HTTP; RTSP; HTTPS; DDNS; Email; SNMP; Multicast; Auto Registration; Wireless Qos; Wi-Fi setting; hotspot scanning; 802.1x; UPnP status; Bonjour; UPnP; device discovery

Interoperability

ONVIF; CGI; P2P; RTMP

User/Host

6 (Total bandwidth: 36 M)

Storage

Micro SD card (support max. 256 GB); FTP; SFTP; NAS

Browser

IE;
Chrome;
Firefox

Management Software

DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C

Power

Power Supply

100–240 VAC

Power Consumption

Basic: 5.2 W (100–240 VAC )
Max. (Illuminator+IPC): 48.3 W (100–240 VAC )

Environment

Operating Temperature

–20 °C to +50 °C (–4 °F to +122 °F)

Operating Humidity

≤ 95%

Storage Temperature

–20 °C to +50 °C (–4 °F to +122 °F)

Protection

IP65

Structure

Casing

Metal + Plastic

Product Dimensions

270.7 mm × 217.2 mm × 195.6 mm (10.66" × 8.55" × 7.70") (L × W × H)

Net Weight

1.40 kg (3.08 lb)

Gross Weight

1.88 kg (4.14 lb)
