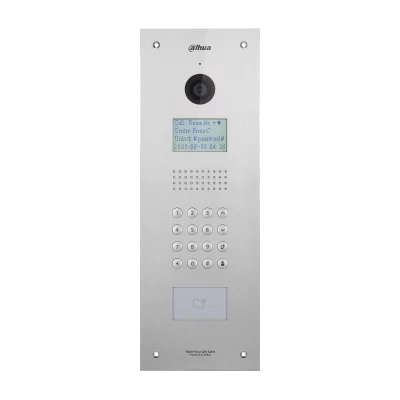

Dahua Apartment Outdoor Station DHI-VTO1210C-X
- * Please contact us about stock information
- DHI-VTO1210C-X
- INTERCOM, BRANDS
- Click Here
Overview:
Features:
- HD CMOS camera
- Stainless steel panel, IP54, IK07
- Night vision & Voice indication
- Local card opening
- Video & Audio messaging
- Surface and flush mounted.
Specifications:
|
Technical Speciļ¬cation |
|
|
Model |
VTO1210C-X |
|
System |
|
|
Main Processor |
Embedded Micro Processor |
|
Operation System |
Embedded LINUX OS |
|
Video |
|
|
Video Compression |
H.264 |
|
Image Sensor |
1/3” 1.3MP CMOS |
|
Lens |
3.6mm |
|
Angle of View |
D:95° H:75° |
|
Day/Night |
Color Image |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Audio Input |
Omnidirectional Mic |
|
Audio Output |
Built-in Speaker |
|
Bidirectional Talk |
Support Dual-way Bidirectional talk |
|
Display |
|
|
LCD Screen |
3" STN 128x64 |
|
Operation Mode |
|
|
Keypad |
Mechanical Button |
|
Reader |
Mifare Card |
|
Approaching Induction |
|
|
Body approaching |
1m |
|
Interface |
|
|
Door Control |
1 |
|
Alarm In |
2(1ch unlock button, 1ch feedback) |
|
RS485 |
1 |
|
Network |
|
|
Ethernet |
10M/100Mbps |
|
Network Protocol |
TCP/IP |
|
General |
|
|
Ingress Protection |
IP54, IK07 |
|
Tamper Switch |
1 |
|
Installation |
Surface & Flush |
|
Material |
Stainless steel |
|
Power |
DC 12V |
|
Power Consumption |
Standby ≤1W, Work ≤10W |
|
Working Temperature |
-40°C~+60°C |
|
Relative Humidity |
10%~90%RH |
|
Dimensions |
143.0mm×406.0mm×42.0mm |
|
Weight |
1.6Kg |
