| Power supply | 100-240V~ 50/60Hz or 24-30V DC |
| Rated load current | 6A per one channel 9.5A total |
| Compatible load types | resistive or incandescent only |
| Active element | micro-gap relay μ |
| Maximum length of wires | 3 meters |
| Recommended wire cross-section area | 0.2–2.0mm2 (24–14 AWG) (depending on load current) |
| Operating temperature | 0–35°C |
| Ambient humidity | 0–95% RH without condensation |
| Radio protocol | Z-Wave (500 series chip) |
| Radio frequency band | 868.0–868.6MHz; 869.7–870.0MHz |
| Max. transmitting power | +5dBm |
| Range | up to 50m outdoors up to 40m indoors (depending on terrain and building structure |
| Dimensions (Height x Width x Depth) |
42.5 x 38.25 x 20.3 mm |
| Classification of installation and use | Automatic electrical control for use in equipment for household or similar use |
| Mode of operation | Type 1.B Action |
| Pollution degree | 2 |
| Software class | Class A |
| Compliance with EU directives | 2011/65/EU 2015/863 2014/53/EU |
FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
CALL US ON 1300 843 883

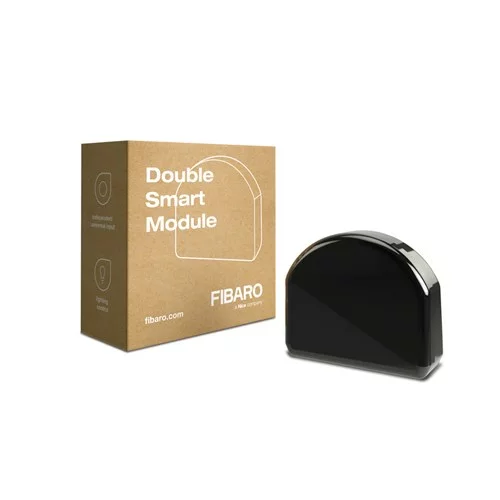

Fibaro - FGS-224 Double Smart Module
9 left in stock
Adelaide: 0
|
Brisbane: 0
|
Melbourne: 9
|
Sydney: 0
Exc. GST
$91.76
Inc. GST
$100.94
Eligible Coupon
- FGS-224
- BRANDS, SECURITY & AUTOMATION
- Click Here
Overview:
The Double Smart Module remotely controlled by the FIBARO System is designed for switching devices or circuits on and off. The device allows control two circuits or the device via the Z-Wave network or directly using the connected buttons.
The small dimensions of the module allow it to be installed in the casings of other devices.
Features:
- compatible with various types of switches and buttons
- control by means of FIBARO system devices or any controller Z-Wave
- support for Z-Wave protected mode: S0 with AES-128 and S2 encryption Authenticated with PRNG-based encryption
- works as a Z-Wave signal amplifier
Specifications:
