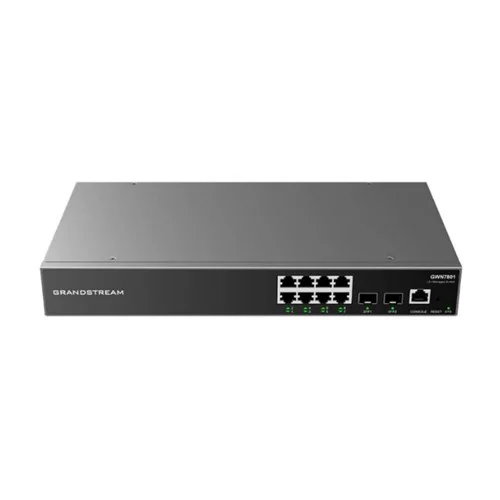

Grandstream GWN7801 Layer 2+ cloud smart switch

Overview:

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models
provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to-medium businesses.

Key Features & Benefits of the Grandstream GWN7801 Enterprise 8-Port Gigabit L2+ Managed non-PoE Switch:

• 8x Gigabit Ethernet Ports
• 2x Gigabit SFP Ports
• 1x Console Port
• Total non-blocking throughput 10Gbps
• Switching Capability 20Gbps
• Forwarding Rate 14.88M packets per second
• Packet Buffer 4.1MB
• Forwarding Mode: store-and-forward
• Integrated Power Supply 30W
• Multicast: IGMP Snooping, MLD Snooping, MVR
• DHCP server, DHCP relay, Option 82, 60,160 and 43
• 1x tri-color LED for device tracking and status indication,
• 10x green LEDs for data ports
• Fanless operation
• Desktop/Wall-Mount installation
• Operating temperature 0°Cto 45°C, humidity 10-90% RH (Non-condensing)
• Storage temperature -10°C to 60°C, humidity: 5% to 95% (Non-condensing)
• 3 Year Warranty

Switching:

• 8K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 8 link aggregation groups
• Spanning tree, 64 instances for STP/RTSP/MSTP

QoS/ACL:

• Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 1.5K ACL for Ethernet, IPv4 and IPv6

Maintenance:

• CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test

Security:

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support
