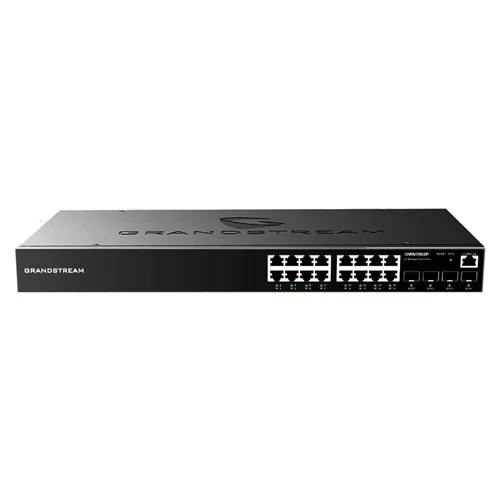

Grandstream GR-GWN7802P Enterprise Layer 2+ Managed Poe Network Switch, 16 X GIGE, 4 X SFP

Overview:

The Grandstream GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high-performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The GWN7800 series can be managed in several ways, including the local network controller embedded in the web user interface of the GWN7800 series switch. The series is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series is the ideal managed network switch for small-to-medium businesses.

Key Features & Benefits of the Grandstream GWN7802P Enterprise 16-Port Gigabit L2+ Managed PoE Switch:

• 16x Gigabit Ethernet Ports with PoE/PoE+ support (IEEE 802.3af/at), 4x Gigabit SFP Ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port
• Max. PoE Power Budget 240W
• Max Output Power per PoE Port 30W
• Total non-blocking throughput 20Gbps
• Switching Capability 40Gbps
• Forwarding Rate 29.76M packets per second
• Packet Buffer 4.1MB
• Forwarding Mode: store-and-forward
• Integrated Power Supply 270W
• Multicast: IGMP Snooping, MLD Snooping, MVR
• DHCP server, DHCP relay, Options 82, 60,160 and 43
• 1x Console Port
• 1x tri-color LED for device tracking and status indication,
• 20x green LEDs for data ports
• 16x yellow-color LEDs for PoE ports
• Desktop, wall-mount, or rack-mount (rack-mount brackets included)
• Operating temperature 0°Cto 45°C, humidity 10-90% RH (Non-condensing)
• Storage temperature -10°C to 60°C, humidity: 5% to 95% (Non-condensing)
• 3-Year Warranty

Switching:

• 8K static, dynamic, and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP (pending)
• 8 link aggregation groups
• Spanning tree, 64 instances for STP/RTSP/MSTP

QoS/ACL:

• Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 1.5K ACL for Ethernet, IPv4, and IPv6

Maintenance:

• CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, Syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD), and copper test

Security:

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection, and loopback protection
• Kensington Security Slot (Kensington Lock) support
