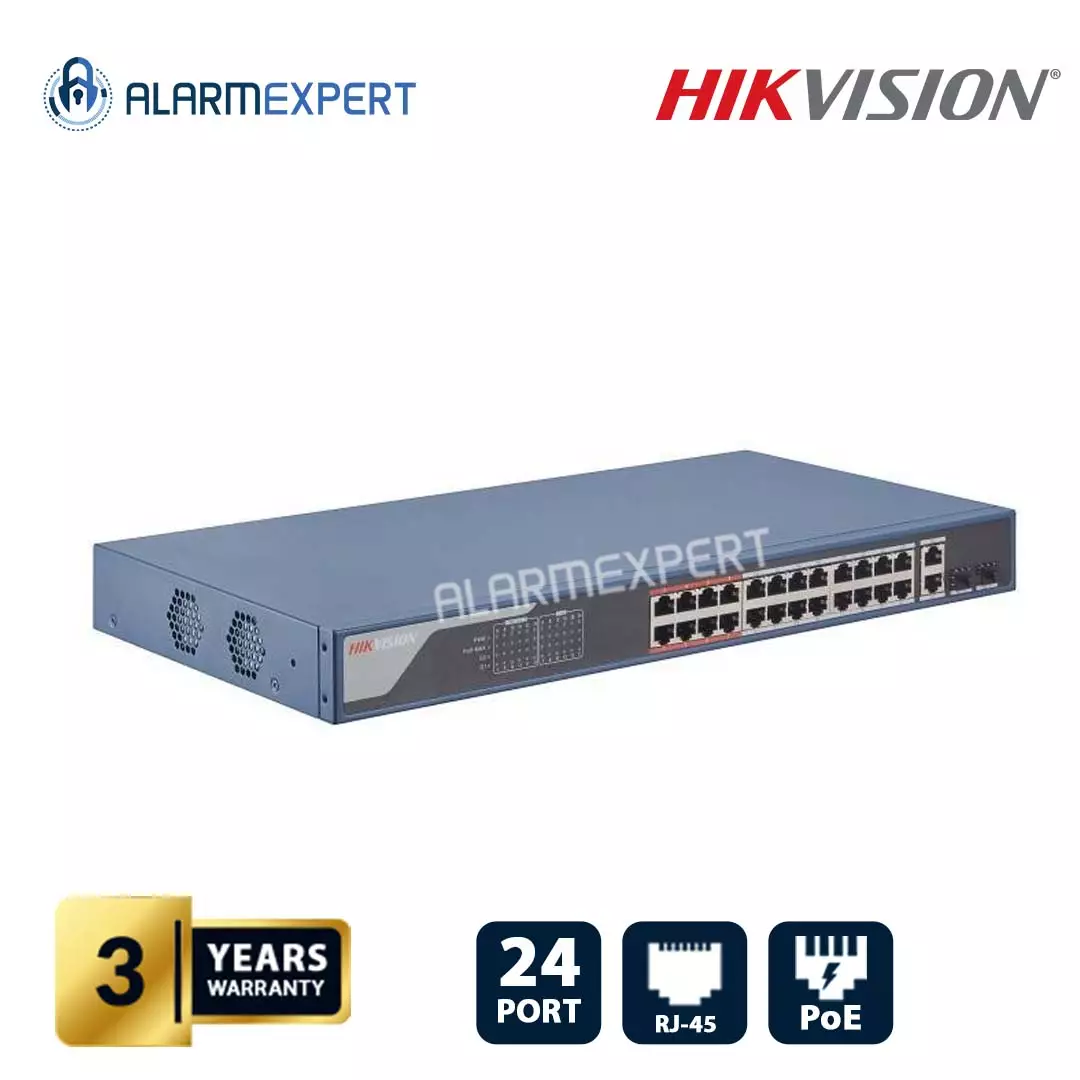

Hikvision 24 Port Fast Ethernet Smart POE Switch DS-3E1326P-EI
Features:
- 24 × 100 Mbps PoE RJ45 ports, 2 × gigabit combos.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
Specifications:
| General | |
| Shell | Metal material |
| Net Weight | 2.83 kg (6.24 lb) |
| Gross Weight | 3.800 kg (8.38 lb) |
| Dimensions (W × H × D) | 440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'') |
| Operating Temperature | 0 °C to 45 °C (0 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100~240 V AC, 50/60 Hz, Max. 6.5 A |
| Installation Mode | Rack (equipped with mounting ears) |
| Max. Power Consumption | 400 W |
| Power Consumption in Idle | 30 W |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 24 x 10/100 Mbps PoE port,2 x Gigabit combo |
| MAC Address Table | 16 K |
| Switching Capacity | 14.8 Gbps |
| Packet Forwarding Rate | 11.01 Mpps |
| Internal Cache | 4 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 24 |
| Max. Port Power | 30 W |
| PoE Power Budget | 370 W |
| Software Function | |
| Long Range | Ports 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| VIP Port | Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters. |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
