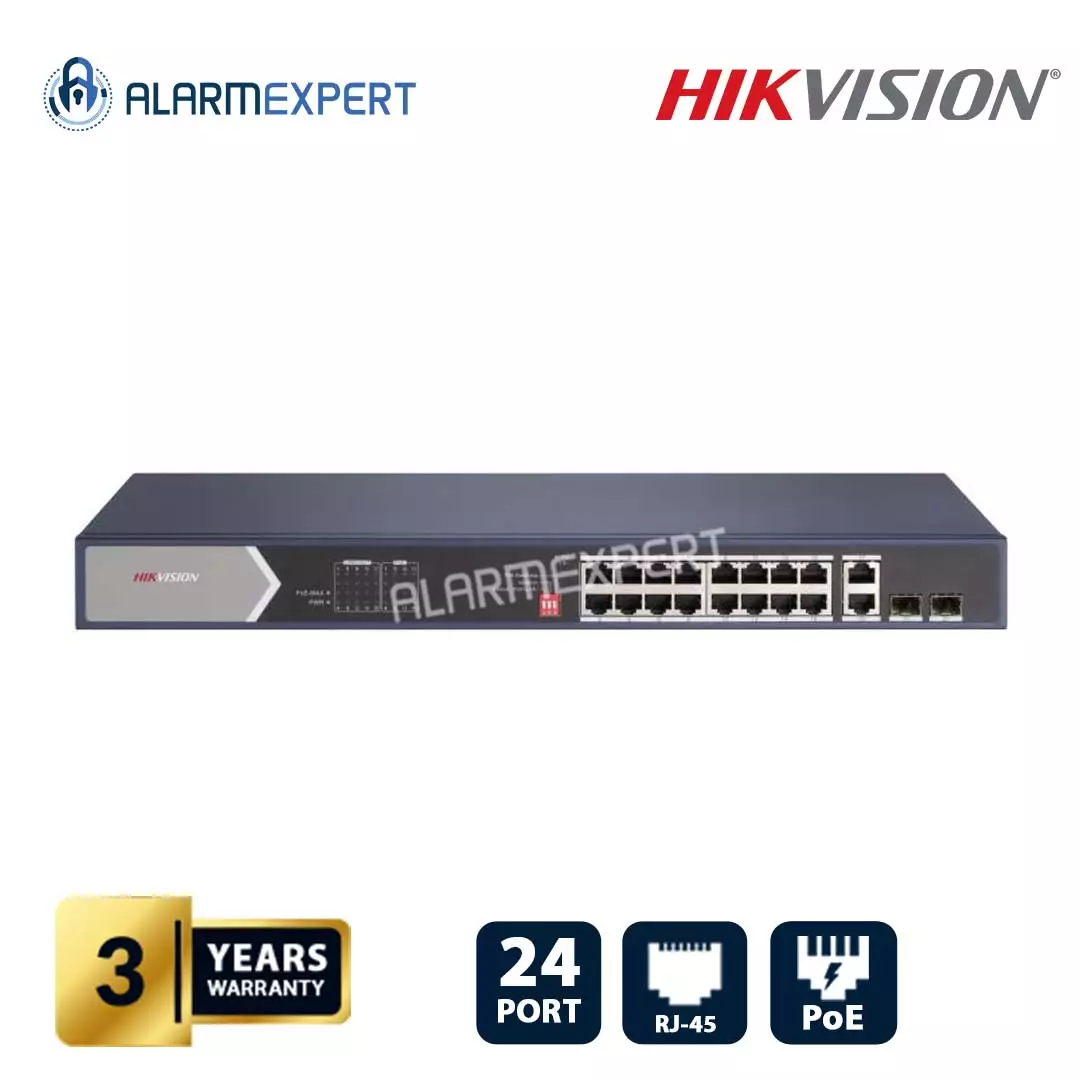

Hikvision 24 Port Gigabit Unmanaged POE Switch DS-3E0528HP-E



Features:

  • 20 × gigabit PoE port, 4 × gigabit Hi-PoE port, 2 × gigabit RJ45 port, and 2 × gigabit fiber optical port.
  • IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
  • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
  • 6 KV surge protection for PoE ports.
  • Up to 300 m long-range transmission.
  • PoE watchdog to auto detect and restart the cameras that do not respond.
  • Port isolation to improve network security.
  • Gigabit network access design.
  • Wire-speed forwarding.
  • Store-and-forward switching.
  • Solid high-strength metal shell.



Specifications:

Model DS-3E0528HP-E
General Shell Metal material
Net Weight 2.98 kg (6.57 lb)
Dimensions (W × H × D) 440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')
Operating Temperature 0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100~240 V AC, 50/60 Hz, Max. 6.5 A
Max. Power Consumption 400 W
Power Consumption in Idle 30 W
Installation Mode Desk-Mounted
Surge Protection 6 kV
Network Parameters Ports 24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC Address Table 8 K
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.664 Mpps
Internal Cache 4.1 Mbits
PoE Power Supply PoE Standard IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Port Hi-PoE: Ports 1 to 4
PoE: Ports 1 to24
PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Max. Port Power Ports 1 to 4: 90 W Ports 5 to 24: 30 W
PoE Power Budget 370 W
Dialing Function Long Range Ports 21 to 24: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation Ports 1 to 24: port isolation mode to improve network security.
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog Ports 1 to 24: auto detect and restart the cameras that do not respond.
Approval EMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC
61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN
55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32:
2015)
Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second
Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU)
