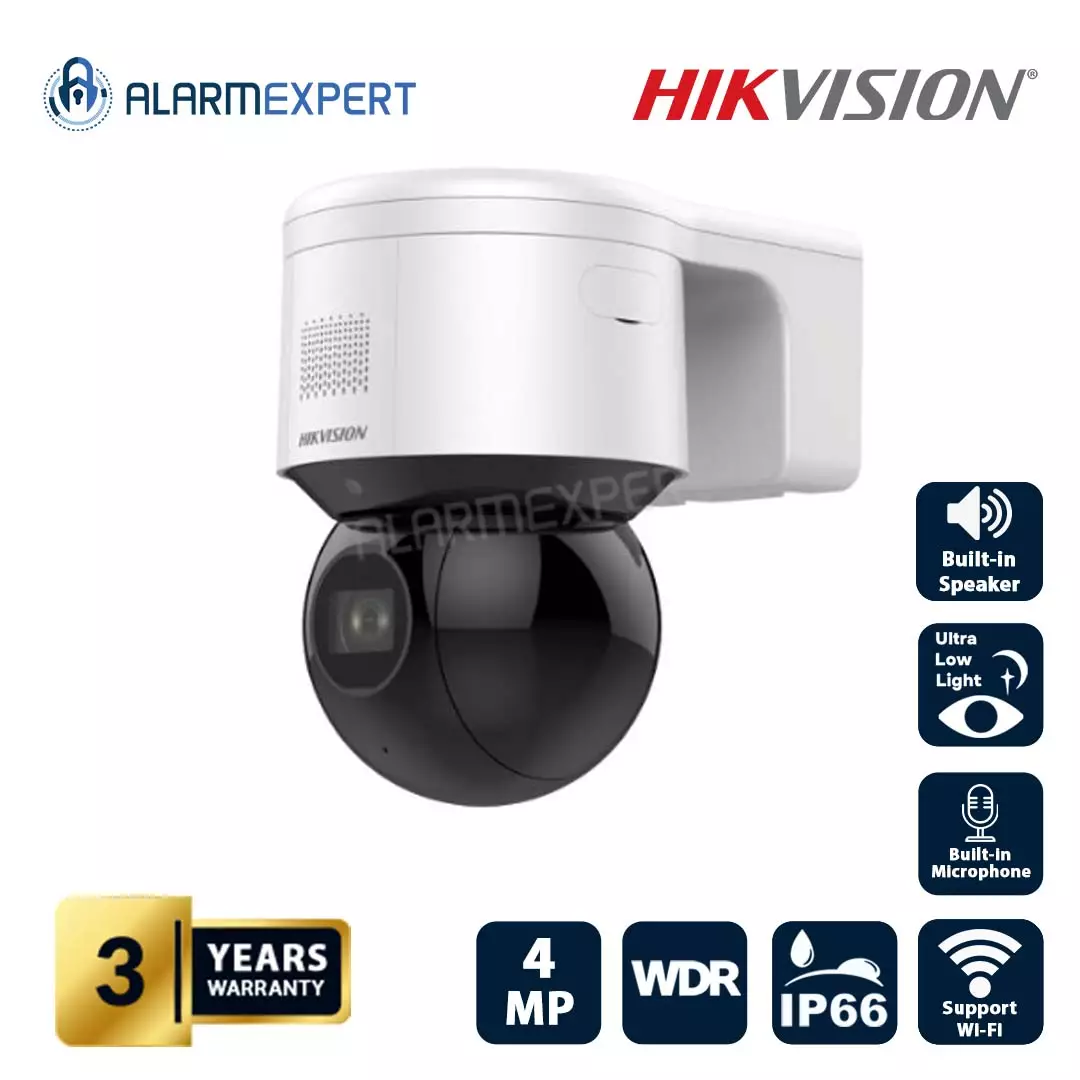

Hikvision 4 MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera DS-2DE3A404IW-DE/W(S6)
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
- DS-2DE3A404IW-DE/W(S6)
- 36
- CCTV, BRANDS
- Click Here
Hikvision 4 MP 4x Zoom IR Wi-Fi Mini PT Dome Network Camera DS-2DE3A404IW-DE/W(S6)
Features:
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4 × optical zoom allows for closer viewing of subjects in expansive areas
- Up to 50 m IR range ensures safety at night
- Wi-Fi connection and easy installation
- Support audio visual alarm
| DORI | Detect | Observe | Recognize | Identify | ||
| Definition | 25 px/m | 63 px/m | 125 px/m | 250 px/m | ||
| Distance (Tele) | 180 m (590.5 ft) | 71.4 m (234.2 ft) | 36 m (118.1 ft) | 18 m (59.1 ft) | ||
Specifications:
| Camera | |||||
| Image Sensor | 1/2.8" progressive scan CMOS | ||||
| Max. Resolution | 2560 × 1440 | ||||
| Min. Illumination | Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR | ||||
| Shutter Speed | 1 to 1/30,000 s | ||||
| Day & Night | IR cut filter | ||||
| Zoom | 4 × optical, 16 × digital | ||||
| Lens | |||||
| Focal Length | 2.8 to 12 mm | ||||
| FOV | Horizontal field of view: 96.7° to 31.6° (wide-tele) Vertical field of view: 51.1° to 17.7° (wide-tele) Diagonal field of view: 115.1° to 36.3° (wide-tele) |
||||
| Focus | Auto, semi-auto, manual | ||||
| Aperture | Max. F1.5 | ||||
| Zoom Speed | Approx. 2 s (optical lens, wide-tele) | ||||
| Illuminator | |||||
| Supplement Light Range | IR distance: up to 50 m, white light distance: up to 6 m | ||||
| Smart Supplement Light | Yes | ||||
| PTZ | |||||
| Movement Range (Pan) | 0° to 350° | ||||
| Movement Range (Tilt) | 0° to 90° | ||||
| Pan Speed | Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s | ||||
| Tilt Speed | Configurable, from 0.1°/s to 50°/s. Preset speed: 50°/s | ||||
| Proportional Pan | Yes | ||||
| Presets | 300 | ||||
| Preset Freezing | Yes | ||||
| Patrol Scan | 8 patrols, up to 32 presets for each patrol | ||||
| Park Action | Preset, patrol scan | ||||
| 3D Positioning | Yes | ||||
| PTZ Status Display | Yes | ||||
| Scheduled Task | Preset, patrol scan, dome reboot, dome adjust, aux output | ||||
| Power-off Memory | Yes | ||||
| Video | |||||
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
||||
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
||||
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
||||
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
||||
| Video Bit Rate | 32 Kbps to 16 Mbps | ||||
| H.264 Type | Baseline profile/main profile/high profile | ||||
| H.265 Type | Main profile | ||||
| Scalable Video Coding (SVC) | H.264 and H.265 encoding | ||||
| Region of Interest (ROI) | 8 fixed regions for each stream | ||||
| Audio | |||||
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | ||||
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) | ||||
| Network | |||||
| Protocols | IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
||||
| Simultaneous Live View | Up to 20 channels | ||||
| API | Open Network Video Interface, ISAPI, SDK, ISUP | ||||
| User/Host | Up to 32 users. 3 user levels, administrator, operator and user | ||||
| Security | Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
||||
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) | ||||
| Client | iVMS-4200, HikCentral, Hik-Connect *Wi-Fi connection with Hik-Connect directly is not possible. |
||||
| Web Browser | IE10-11, Chrome 57.0+, Firefox 52.0+, Safari 12+ | ||||
| Wireless (Wi-Fi) | |||||
| Encryption Mode | 64/128-bit WEP,WPA/WPA2,WPS | ||||
| Wi-Fi Protocols | IEEE802.11b, 802.11g, 802.11n | ||||
| Frequency Range | 2.4 GHz - 2.4835 GHz | ||||
| Channel Bandwidth | 20/40MHz | ||||
| Modulation | 802.11b: CCK, DQPSK, DBPSK 802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK 802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK |
||||
| Transfer Rate | 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: mcs0 - msc7 |
||||
| Wireless Range | Up to 150 m (The performance varies based on actual environment) | ||||
| Antenna | Built-in 2 antennas | ||||
| Image | |||||
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
||||
| Wide Dynamic Range (WDR) | 120 dB | ||||
| Defog | Digital defog | ||||
| Image Enhancement | BLC, HLC, 3D DNR | ||||
| Privacy Mask | 24 programmable polygon privacy masks, mask color configurable | ||||
| Regional Focus | Yes | ||||
| Regional Exposure | Yes | ||||
| Interface | |||||
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | ||||
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB | ||||
| Built-in Microphone | 1 built-in microphone | ||||
| Built-in Speaker | 1 built-in speaker, 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm) | ||||
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
||||
| Alarm | 1 input, 1 output | ||||
| Power Output | 12 VDC, max. 60 mA | ||||
| Event | |||||
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output |
||||
| Smart Event | Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
||||
| Alarm Linkage | Preset, patrol scan, upload to FTP/memory card/NAS, notify surveillance center, send email, audible warning, flashing alarm |
||||
| General | |||||
| Power | 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 16 W (including max. 2.4 W for IR, 1.2 W for white light flashing) |
||||
| Dimension | 179.3 mm × 120.5 mm × 182 mm (7.06" × 4.74" × 7.17") | ||||
| Weight | Approx. 1.125 kg (2.48 lb.) | ||||
| Material | ADC12 + PC | ||||
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) | ||||
| Approval | |||||
| Protection | IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection |
||||
