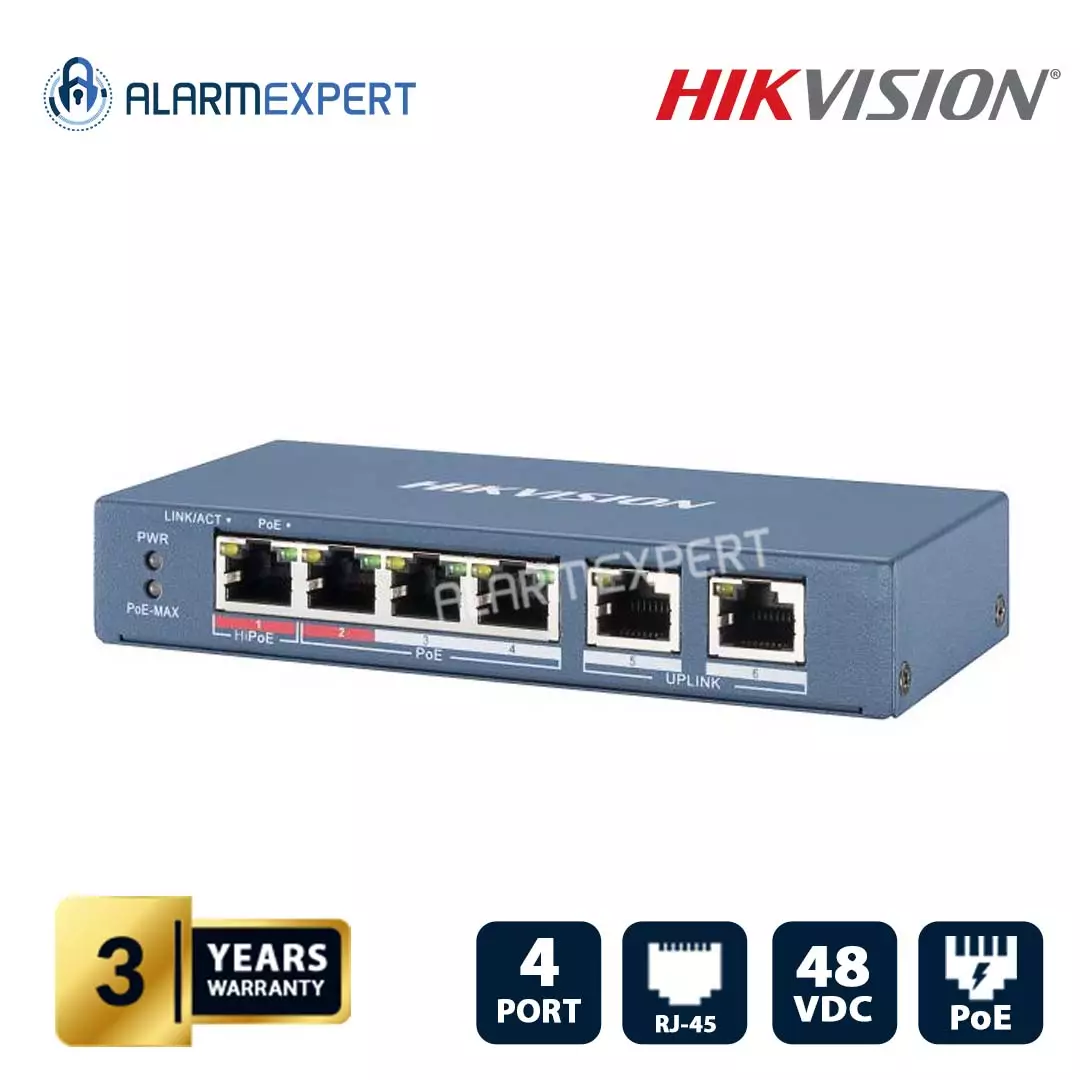

Hikvision 4 Port Fast Ethernet Unmanaged POE Switch DS-3E0106HP-E
Features:
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Specifications:
| Model | DS-3E0106HP-E | |
| Shell | Metal material, fan-free design | |
| Net Weight | 0.24 kg (0.53 lb) | |
| Gross Weight | 0.77 kg (1.70 lb) | |
| General | Dimensions (W × H × D) | 145 mm × 25.6 mm × 68.45 mm (5.7'' × 1.0'' × 2.7'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) | |
| Operating Humidity | 5% to 95% (no condensation) | |
| Relative Humidity | 5% to 95% (no condensation) | |
| Power Supply | 48 V DC, 1.35 A | |
| Max. Power Consumption | 65 W | |
| Power Consumption in Idle | 5 W | |
| Installation Mode | Desk-Mounted,Wall-Mounted | |
| Surge Protection | 6 kV | |
| Network Parameters | Ports | 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K | |
| Switching Capacity | 1.20 Gbps | |
| Packet Forwarding Rate | 0.89 Mpps | |
| Internal Cache | 768 Kbits | |
| PoE Power Supply | PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) | |
| PoE Port | Hi-PoE: Port 1 PoE: Ports 2 to 4 |
|
| Max. Port Power | Port 1: 60 W Ports 2 to 4: 30 W |
|
| PoE Power Budget | 60 W | |
| Dialing Function | Long Range | Ports 1 to 4: up to 300 m Long range performance may vary depend on camera model or cable condition. |
| Software Function | VIP Port | Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. |
| Approval | EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|
| Chemistry | CE-RoHS (2011/65/EU) | |
