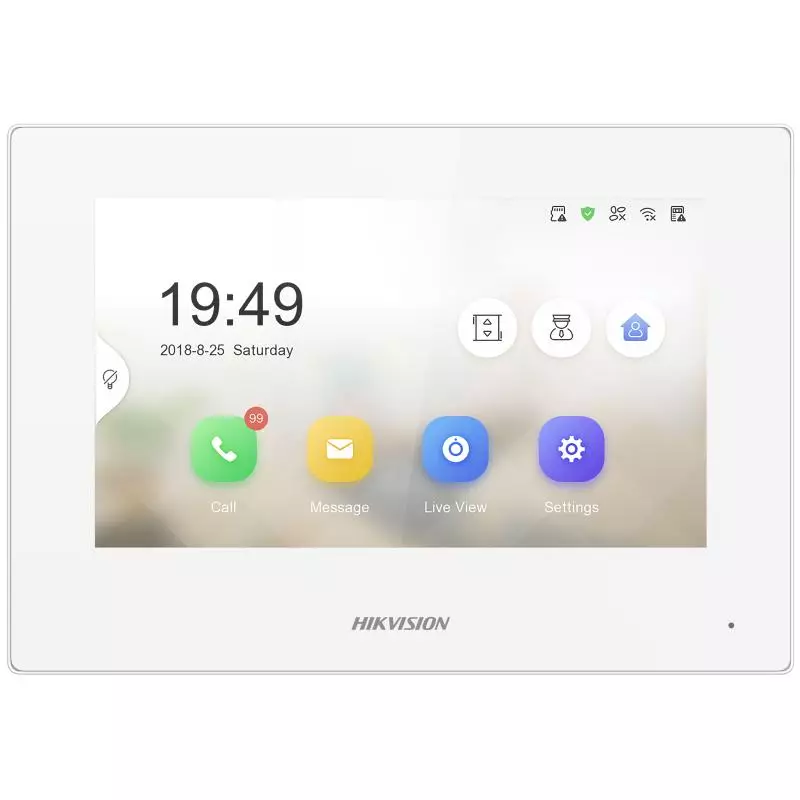

Hikvision 7 Inch Touch Screen IP indoor station Colour White DS-KH6320-LE1(B)/White
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
- DS-KH6320-LE1(B)/White
- INTERCOM, BRANDS
- Click Here
Frequently Bought Together
Hikvision 7 Inch Touch Screen IP indoor station Colour White - DS-KH6320-LE1(B)/White
Features:
- 7-inch TFT touch screen with 1024 × 600 resolution
- Plug & Play
- Standard PoE power supply
- Live view of the door station and cameras in public areas
- Support multiple languages
Specifications:
| System parameters | |||
| Operating system | Linux | ||
| ROM | 32 MB | ||
| RAM | 128 MB | ||
| CPU | Embedded processor | ||
| Display parameters | |||
| Screen size | 7-inch | ||
| Operation method | Capactive touch | ||
| Type | TFT LCD | ||
| Resolution | 1024 × 600 | ||
| Video parameters | |||
| Lens | / | ||
| Resolution | / | ||
| FOV | / | ||
| WDR | / | ||
| Video compression standard | / | ||
| Focal length | / | ||
| Audio parameters | |||
| Audio compression standard | G.711 U, G.711 A | ||
| Audio input | Built-in omnidirectional microphone | ||
| Audio output | Built-in loudspeaker | ||
| Audio compression bitrate | 64 Kbps | ||
| Audio quality | Noise suppression and echo cancellation | ||
| Volume adjustment | Adjustable | ||
| Capacity | |||
| Event capacity | 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events |
||
| Linked indoor extensions capacity |
16 | ||
| Linked network camera capacity | 16 | ||
| Linked doorphone capacity | 17 IP doorphones Max. | ||
| Network parameters | |||
| Communication protocol | TCP/IP, RTSP | ||
| Wired network | Support | ||
| Wi-Fi standard | / | ||
| Bluetooth version | / | ||
| 3G/4G standard | / | ||
| Zigbee | / | ||
| Device interfaces | |||
| Alarm input | 8 | ||
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive | ||
| TAMPER | / | ||
| RS-485 | / | ||
| USB | / | ||
| TF card | / | ||
| Alarm output | / | ||
| Power interface | 1 (12VDC power input) | ||
| General | |||
| Button | / | ||
| Installation | Surface mounting, table mounting | ||
| Indicator | / | ||
| Protective level | / | ||
| Working temperature | -10 °C to 50 °C (14 °F to 133 °F) | ||
| Working humidity | 10% to 90% | ||
| Dimensions | 200 mm × 140 mm × 23.6 mm (7.87" ×5.51" × 0.93") | ||
| Battery | / | ||
| Power supply | IEEE802.3af, standard PoE 12 VDC |
||
| Application environment | Indoor | ||
| Power consumption | ≤ 3 W | ||
| Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian |
||
| Weight | Without package: 330 g (0.73 lb),With package: 667g (1.47 lb) | ||
