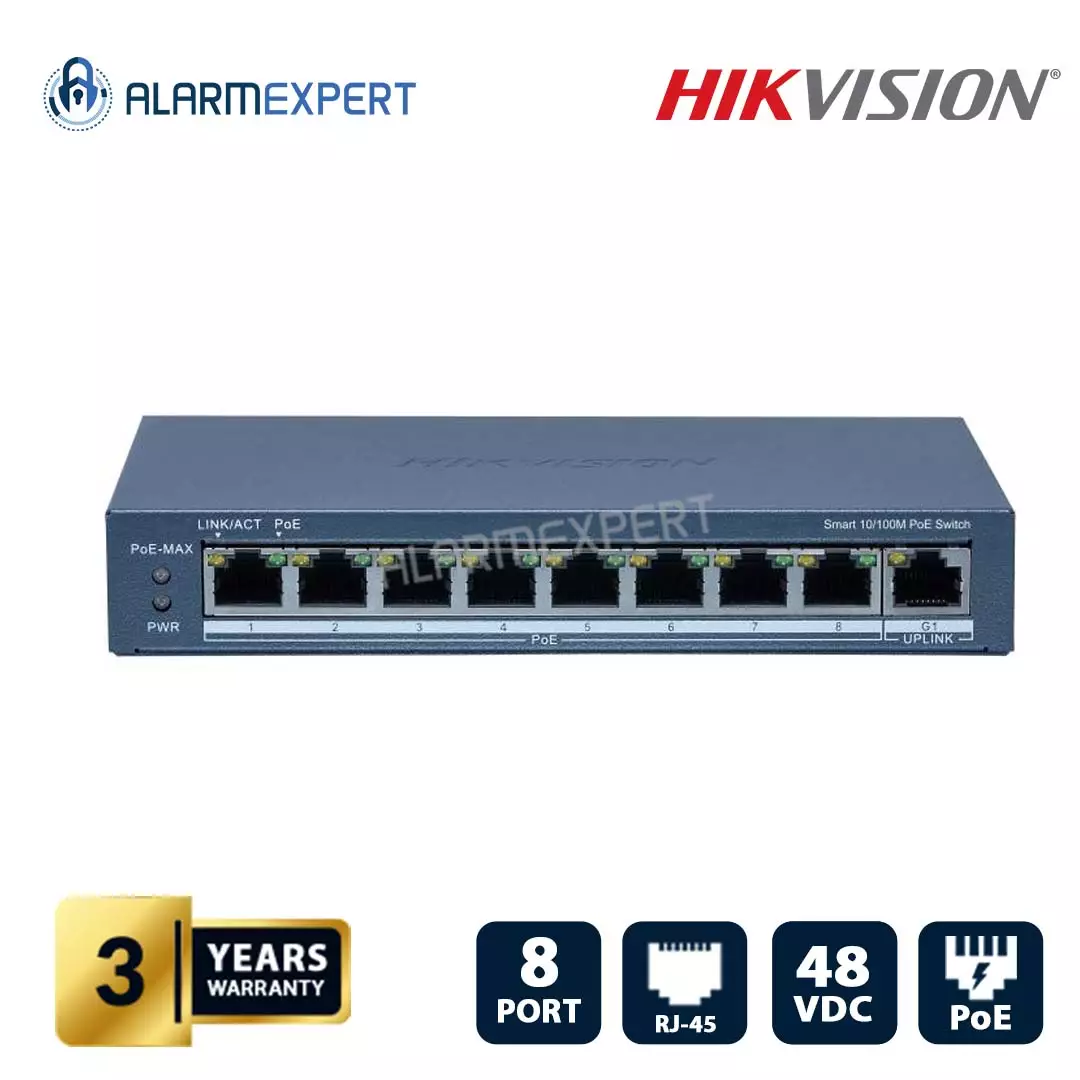

Hikvision 8 Port Fast Ethernet Smart POE Switch DS-3E1309P-EI
Features:
- 8 × 100 Mbps PoE RJ45 port, 1 × gigabit network RJ45 port.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- AF/AT camera can reach up to 300 m in extend mode.
Specifications:
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.35 kg (0.77 lb) |
| Gross Weight | 1.114 kg (2.45 lb) |
| Dimensions (W × H × D) | 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 48 V DC, 2.5 A |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 10 W |
| Surge Protection | 6 kV |
| Network Parameters | |
| Ports | 8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port |
| MAC Address Table | 16 K |
| Packet Forwarding Rate | 4.17 Mpps |
| Internal Cache | 4 Mbits |
| Switching Capacity | 5.6 Gbps |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 110 W |
| Software Function | |
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters. |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
