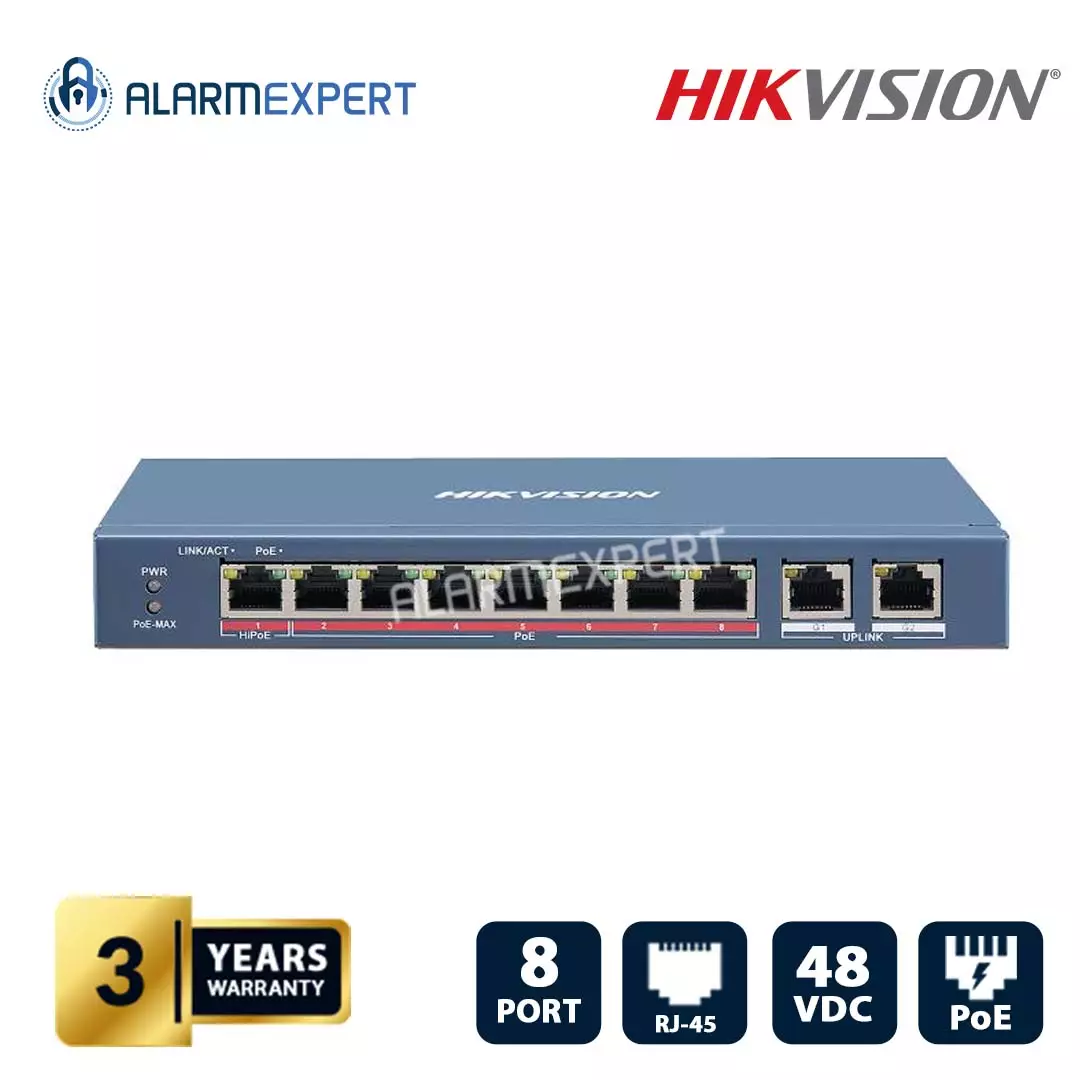

Hikvision 8 Port Fast Ethernet Unmanaged POE Switch DS-3E0310HP-E
Features:
- Intelligent PoE Management
- Up to 300 m Long Range PoE Transmission
- IEEE 802.3bt Standard Hi-PoE, Max. 90 W for One Port
- 4/8-Core Adaptive Power Supply with Less Power Loss
- 6KV Surge Protection to Improve Reliability in Harsh Environment
Specifications:
| Model | DS-3E0310HP-E | |
| Shell | Metal material, fan-free design | |
| Net Weight | 0.55 kg (1.21 lb) | |
| Gross Weight | 1.22 kg (2.69 lb) | |
| General | Dimensions (W × H × D) | 217.6 mm × 27.8 mm × 103.55 mm (8.6'' × 1.1'' × 4.1'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) | |
| Operating Humidity | 5% to 95% (no condensation) | |
| Relative Humidity | 5% to 95% (no condensation) | |
| Power Supply | 48 V DC, 2.5 A | |
| Max. Power Consumption | 120 W | |
| Power Consumption in Idle | 10 W | |
| Installation Mode | Wall-Mounted,Desk-Mounted | |
| Surge Protection | 6 kV | |
| Network Parameters | Ports | 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port |
| MAC Address Table | 8 K | |
| Switching Capacity | 5.60 Gbps | |
| Packet Forwarding Rate | 4.17 Mpps | |
| Internal Cache | 4 Mbits | |
| PoE Power Supply | PoE Standard | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) | |
| Max. Port Power | Port 1: 90 W Ports 2 to 8: 30 W |
|
| PoE Port | Hi-PoE: Port 1 PoE: Ports 2 to 8 |
|
| PoE Power Budget | 110 W | |
| Dialing Function | Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Software Function | VIP Port | Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. |
| Approval | EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|
| Chemistry | CE-RoHS (2011/65/EU) | |
