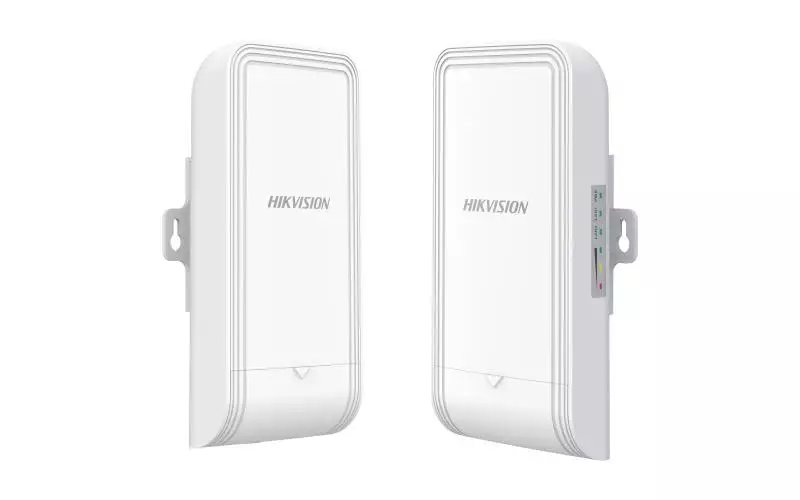

Hikvision 5Ghz 867Mbps 5KM Wireless Bridge Kit DS-3WF02-5AC/D
Features:
- Up to 5 km wireless transmission distance
- 867 Mbps 802.11ac wireless bridge
- Built-in 12 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Standard PoE Input & Output
- Plug and Play
Specifications:
| General | ||
| Product Dimensions (W × H × D) | 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'') | |
| Package Dimensions (W × H × D) | 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38") | |
| Net Weight | 0.26 kg (0.57 lb) per device | |
| Gross Weight | 1.1 kg (2.43 lb) | |
| Packing List | Wireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4 |
|
| Packing Method | Packing in pairs | |
| Working Temperature | -30 °C to 65 °C (-22 °F to 149 °F) | |
| Working Humidity | 5% to 95% (no condensation) | |
| Storage Temperature | -40 °C to 80 °C (-40 °F to 176 °F) | |
| Storage Humidity | 5% to 95% (no condensation) | |
| Installation Mode | Pole Mounting | |
| Ingress Protection | IP55 | |
| Power Consumption | 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W | |
| Wireless Parameter | ||
| Wireless Standard | IEEE 802.11/a/n/ac | |
| Max. Transmission Rate of Air Interface |
≤ 867 Mbps | |
| Working Frequency Band | 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz |
|
| Antenna Gain | 12 dBi | |
| Antenna Angle | (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35° | |
| Transmitting Power | 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.) | |
| Receiving Sensitivity | -84 ±2dBm@AC80-MCS0 | |
| Throughput Rate | PTP: ,90 Mbps/0.5 KM(AC80),90 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 4): ,80 Mbps/1 KM(AC80) |
|
| PoE Power Supply | ||
| PoE Port | AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT | |
| PoE Power Budget | 10 W | |
| PoE Distance | 100 m | |
| Hardware Parameter | ||
| Network Interface | 2 × 10/100 Mbps RJ45 ports | |
| LED Indicator | Power indicator,LAN indicator,Signal intensity indicator | |
| Reset | Hardware resetting button | |
| Power Supply | 48V PoE/12~24V DC;Check the physical interface image below for more details. | |
| Software Function | ||
| Application Function | IFM,IPM,DFS,TPC | |
| Channel Width | 20/40/80 MHz | |
| Channel Selection | Auto/manual selection | |
| Network Protocol | NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management) |
|
| Security Mode | WPA2-PSK | |
| Security Mechanism | Wireless network name hidden | |
| Management Method | Web,iVMS-4200,HCP | |
| Upgrade | Web,iVMS-4200,HCP | |
| System Log | Syslog,Control center information | |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate. 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power 6. Bridge alignment 7. Spectrum scanning 8. PoE output management |
|
| Approval | ||
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000 -3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
|
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) | |
| Radio | EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17 | |
