- DS-3WF0FC-2N/O
- BRANDS, NETWORKING

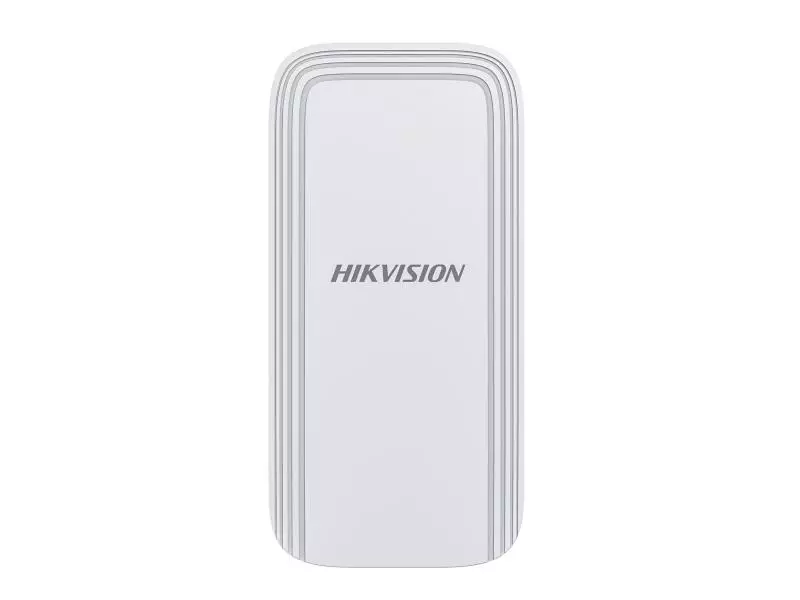

Hikvision 2.4Ghz 300Mbps 1KM Wireless CPE DS-3WF0FC-2N/O
Features:
- Up to 1 km wireless transmission distance
- 300 Mbps 802.11n wireless bridge
- Built-in 7dBi 2 x 2 MIMO antenna
- Visualized topology management
- Real-Time alarm push technology
Specifications:
| General | ||
| Product Dimensions (W × H × D) | 81 mm × 165 mm × 52 mm (3.62'' × 7.36'' × 2.28'') | |
| Package Dimensions (W × H × D) | 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58") | |
| Net Weight | 0.19 kg (0.42 lb) | |
| Gross Weight | 0.49 kg (1.08 lb) | |
| Packing List | Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,10/100 Mbps PoE Injector × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1 |
|
| Packing Method | Single unit packing | |
| Working Temperature | -30 °C to 70 °C (-22 °F to 158 °F) | |
| Working Humidity | 5% to 95% (no condensation) | |
| Storage Temperature | -40 °C to 80 °C (-40 °F to 176 °F) | |
| Storage Humidity | 5% to 95% (no condensation) | |
| Installation Mode | Pole Mounting | |
| Ingress Protection | IP55 | |
| Power Consumption | 1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W | |
| Wireless Parameter | ||
| Max. Transmission Rate of Air Interface |
≤ 300 Mbps | |
| Wireless Standard | IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps) | |
| Working Frequency Band | 2400 MHz ~ 2483.5 MHz | |
| Receiving Sensitivity | -87±2 dBm @HT40 MCS0 | |
| Antenna Gain | 7 dBi | |
| Antenna Angle | (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35° | |
| Transmitting Power | 23 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.) | |
| Throughput Rate | PTP: ,90 Mbps/0.2 KM(HT40),75 Mbps/0.5 KM(HT40),40 Mbps/1 KM(HT40),PTMP(1 to 4): ,20 Mbps/1 KM(HT40) |
|
| Hardware Parameter | ||
| Network Interface | 2 × 10/100 Mbps RJ45 ports | |
| LED Indicator | Power indicator,LAN indicator,Signal intensity indicator | |
| Reset | Hardware resetting button | |
| Power Supply | 12-24 VDC Passive PoE | |
| Software Function | ||
| Application Function | TDMA,DFS,TPC,IFM,IPM | |
| Channel Width | 10/20/40 MHz | |
| Channel Selection | Auto/manual selection | |
| Network Protocol | NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging) |
|
| Security Mode | WPA2-PSK | |
| Security Mechanism | Wireless network name hidden | |
| Management Method | Web,iVMS-4200,HCP | |
| Upgrade | Web,iVMS-4200,HCP | |
| System Log | Syslog,Control center information | |
