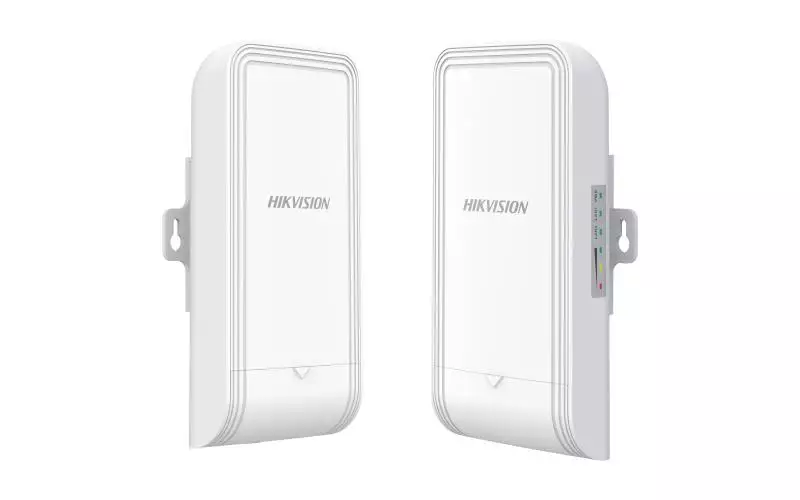

Hikvision 2.4Ghz 300Mbps 1KM Wireless Bridge Kit DS-3WF1000-EI-2N
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
- DS-3WF1000-EI-2N
- BRANDS, NETWORKING
Hikvision 2.4Ghz 300Mbps 1KM Wireless Bridge Kit DS-3WF1000-EI-2N
Features:
- Up to 1 Km wireless transmission distance
- 300 Mbps 802.11n wireless bridge
- Built-in 7dBi 2 x 2 MIMO antenna
- Visualized topology management
- Real-Time alarm push technology
Specifications:
| General | ||
| Product Dimensions (W × H × D) | 90.8 mm × 187.87 mm × 57.87 mm (3.57'' × 7.39'' × 2.27'') | |
| Package Dimensions (W × H × D) | 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38") | |
| Net Weight | 0.26 kg (0.57 lb) per device | |
| Gross Weight | 0.9 kg (1.98 lb) | |
| Packing List | Wireless Bridge × 2,Power Adapter (12 VDC, 1 A) × 2,10/100 Mbps PoE Injector × 2,Binding Tape × 4,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1 |
|
| Packing Method | Packing in pairs | |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) | |
| Working Humidity | 5% to 95% (no condensation) | |
| Storage Temperature | -40 °C to 80 °C (-40 °F to 176 °F) | |
| Storage Humidity | 5% to 95% (no condensation) | |
| Installation Mode | Pole Mounting | |
| Ingress Protection | IP55 | |
| Power Consumption | 1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W | |
| Wireless Parameter | ||
| Wireless Standard | IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps) | |
| Max. Transmission Rate of Air Interface |
≤ 300 Mbps | |
| Working Frequency Band | 2400 MHz ~ 2483.5 MHz | |
| Antenna Gain | 7 dBi | |
| Antenna Angle | (H) Beamwidth [3 dB] 60° (V) Beamwidth [3 dB] 50° | |
| Transmitting Power | 22 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.) | |
| Receiving Sensitivity | -87±2 dBm @HT40 MCS0 | |
| Throughput Rate | PTP: ,90 Mbps/0.2 KM(HT40),90 Mbps/0.5 KM(HT40),70 Mbps/1 KM(HT40),PTMP(1 to 4): ,40 Mbps/1 KM(HT40) |
|
| Hardware Parameter | ||
| Network Interface | 2 × 10/100 Mbps RJ45 ports | |
| LED Indicator | Power indicator,LAN indicator,Signal intensity indicator | |
| Reset | Hardware resetting button | |
| Power Supply | 12-24 VDC Passive PoE | |
| Software Function | ||
| Application Function | IFM,IPM | |
| Channel Width | 10/20/40 MHz | |
| Channel Selection | Auto/manual selection | |
| Network Protocol | NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging) |
|
| Security Mode | WPA2-PSK | |
| Security Mechanism | Wireless network name hidden | |
| Management Method | Web,iVMS-4200,HCP | |
| Upgrade | Web,iVMS-4200,HCP | |
| System Log | Syslog,Control center information | |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power 6. Bridge alignment 7. Spectrum scanning |
|
| Approval | ||
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000 -3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
|
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) | |
| Radio | EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17 | |
