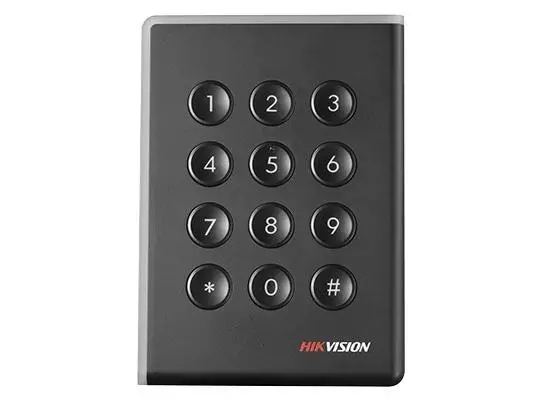

Hikvision Pro 1108 Series Card Reader DS-K1108MK
Features:
- 32-bit high-speed processor
- Support RS-485, Wiegand (W26, W34) protocol, and OSDP protocol
- Build-in Mifare card reading module (Frequency: 13.56MHz). Meets the standard of ISO 14443-A.
- Supports reading Mifare card No (DS-K1108M/DS-K1108MK)
- Tamper-proof function
- Build-in buzzer for status indication
- Online upgrading
- Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
Specifications |
||||
| Power Supply | DC 12V | |||
| Power Consumption | ≤2W | |||
| Processor | 32bit | |||
| Radio Frequency Standard | ISO 14443-A | |||
| Induction Distance | ≤50mm (≤1.97") | |||
| ID Settings | via DIP Switch | |||
| Communication Mode | RS485/Wiegand (Set via DIP Switch) | |||
| Prompt | Buzzer | |||
| Keypad | Physical Key/No Key | |||
| LED Indicator | Power/Status | |||
| Working Temperature | -20°C to +65°C (-4°F to +149°F) | |||
| Working Humidity | 10%~90% (No Condensing) | |||
| Dimension | 123mm × 88mm × 21mm (4.84" × 3.46" × 0.83") | |||
| Tamper Alarm | Support | |||
| Protection Level | IP65 | |||
| Mounting Method | Wall Mounting with/without Gang Box | |||
