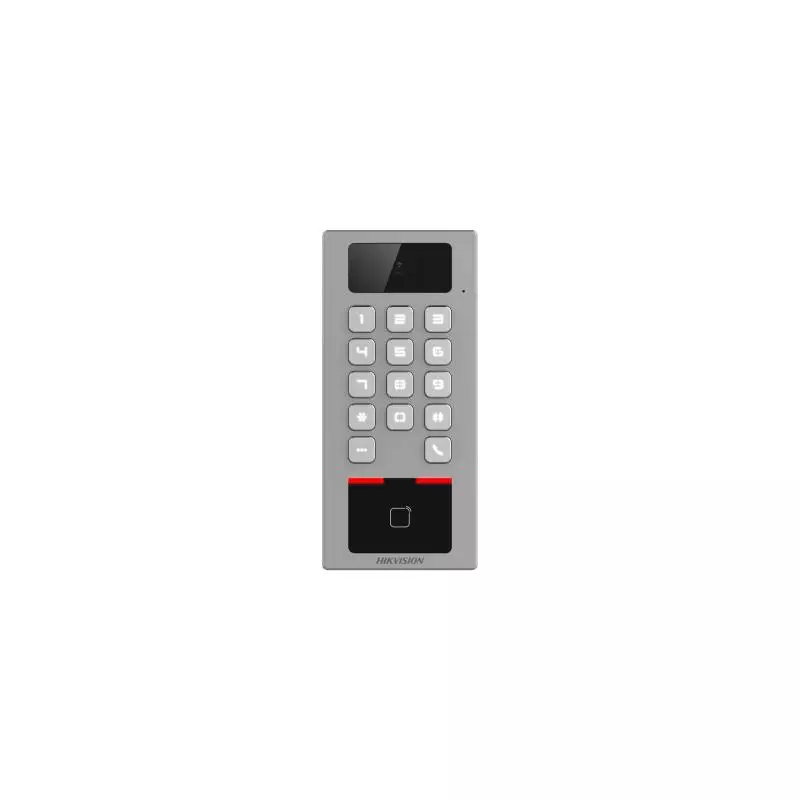

Hikvision Access Control Terminal DS-K1T502DBWX-C

free-shipping Chat with us now to check the stock.
Login to See Better Price
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%

Hikvision Access Control Terminal DS-K1T502DBWX-C



Features:

  • Manage access control and intercom functions in one device
  • IP65 & IK09 protections, as well as increased stability with zinc alloy materials
  • Supports multiple authentication methods (card, PIN, etc.)
  • Remote control via the Hik-Connect mobile app
  • Connects to external access controller via Wiegand protocol
  • Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer,FreePBX, Asterisk, 3CX, ELASTIX, and PBX ware
  • RS-485 communication for connecting external card reader and calling elevator
  • Supports AP mode
  • Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App
  • Supports up to 256 GB SD card memory
  • Supports PIN settings under platform mode and local mode
  • Setting the priority of wired network and wireless network is available



Specifications:

System
Operating system Linux
ROM 4 GB
RAM 256 MB
CPU 960 MHz
Video
Lens 1
Video compression standard H.264 and H.265
Resolution 2 MP
FOV HFOV = 110°; VFOV = 81°; DFOV = 122°
Video standard PAL (Default) and NTSC
Aperture F 2.0
Audio
Audio input Build-in omnidirectional microphone
Audio output Build-in loudspeaker
Volume adjustment Adjust via web or client
Network
Network protocol IPV4: SADP, SIP 2.0, SIP, RTSP, ISAPI (80\443 Interface), ISAPI, ISUP 5.0; IPV6: SADP,
SIP, RTSP, ISAPI (80\443 Interface), ISAPI
Wired network Support
Wi-Fi Support, 2.4 G, 802.11b/g/n
Bluetooth BT 2.1/4.2
Interface
Network interface 1 RJ-45 10/100 Mbps self-adaptive
Lock control 1
Exit button 1
Door contact input 1
Alarm input 1
Alarm output 1
TAMPER 1
RS-485 1,RS-485 (Half duplex,HIKVISION
Wiegand 1, Wiegand (Hik 26bit,Hik 34bit)
SD card slot
Capacity
Card capacity 100,000
Event capacity 300,000
Authentication
Card type M1 card,DESfire card
Card reading distance 0 to 3 cm
Card reading duration < 1 s
General
Built-in access controller Yes
Supplement light White light and IR light
Power supply 12 VDC to 24 VDC/1 A
Power consumption ≤ 12 W
Working temperature -40 °C to 70 °C (-40 °F to 158 °F)
Protective level IK09, IP65
Language Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian,
Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish
Function
Hik-Connect Support
Video intercom Support
Live view Support
Two-way audio Support
Multi-factor authentication Support
