- DS-K1T673TDWX
- ACCESS CONTROL, BRANDS

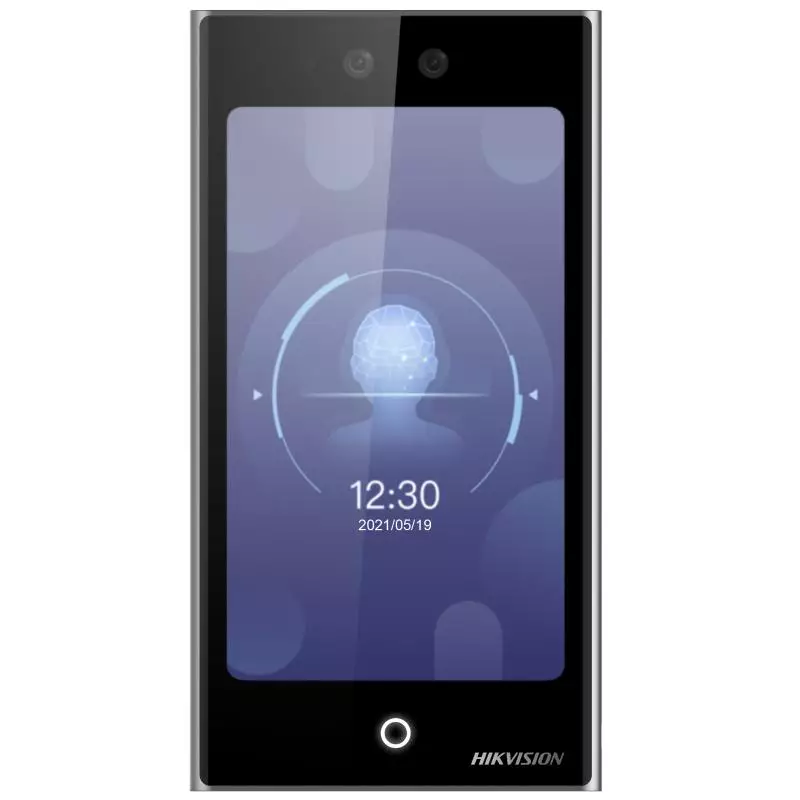

Hikvision Ultra Series Face Access Terminal DS-K1T673TDWX
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 100,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 500,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
Specifications:
| System | ||
| Operation system | Linux | |
| Display | ||
| Size | 7-inch | |
| Type | Touch screen | |
| Video | ||
| FOV | HFOV= 75.5°; VFOV= 41.5°; DFOV= 87° | |
| Pixel | 2 MP | |
| Lens | Dual-lens | |
| Video standard | PAL (Default)/NTSC | |
| Network | ||
| Wi-Fi | Support, 2.4 G, 802.11b/g/n | |
| Wired network | Support 10/100/1000 Mbps self-adaptive | |
| Interface | ||
| Alarm input | 2 | |
| Alarm output | 1 | |
| USB | 1 (For Module) | |
| Audio Output Interface | 1 (3.5 mm) | |
| Network interface | 1 | |
| RS-485 | 1 | |
| Wiegand | 1 | |
| Lock output | 1 | |
| Exit button | 1 | |
| Door contact input | 1 | |
| TAMPER | 1 | |
| Capacity | ||
| Card capacity | 500,000 | |
| Face capacity | 100,000 | |
| Event capacity | 150,000 | |
| Authentication | ||
| Face recognition accuracy rate | ≥ 99% | |
| Card type | M1 card,DESfire card,Felica card | |
| Card reading distance | 0 to 3 cm | |
| Card reading duration | ＜ 1 s | |
| Face recognition duration | ＜ 0.2 s per person | |
| Face recognition distance | 0.3 to 3 m | |
| General | ||
| Power supply | 12 VDC to 24 VDC/2 A | |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) | |
| Working humidity | 0 to 90% (no condensing) | |
| Protective level | IP65 | |
| Dimensions | 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94") | |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish |
|
