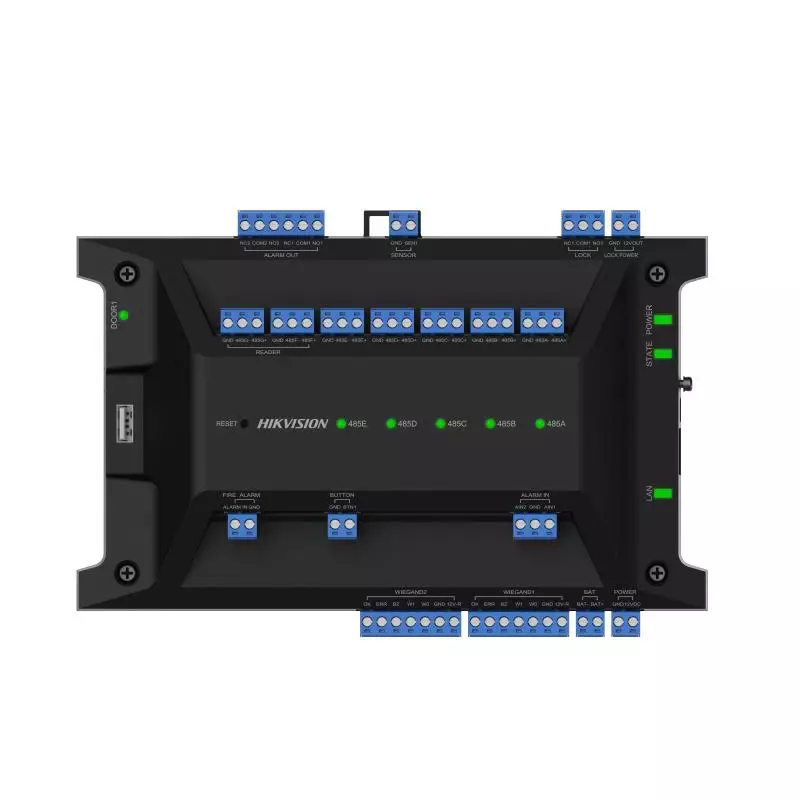

Hikvision Access Controller DS-K2701X(P)
Features:
- Supports 1 door control. It can extend up to 62 DS-K2M002X access modules, and up to 125 doors can be controlled
- Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
Specifications:
| System | ||
| Operating system | Linux | |
| Network | ||
| Wired network | 1, 10/100/1000 Mbps self-adaptive | |
| Interface | ||
| Network interface | 1 | |
| Lock control | 1 | |
| Exit button | 1 | |
| Door contact input | 1 | |
| Alarm input | 2 | |
| Alarm output | 2 | |
| TAMPER | 1 | |
| RS-485 | 7, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy) |
|
| Wiegand | 2, standard 26/34 input, supports custom Wiegand settings | |
| USB | 1, USB 2.0 | |
| Fire interface | 1 | |
| Capacity | ||
| User capacity | 100,000 | |
| Fingerprint capacity | 10,000 | |
| Card capacity | 200,000 | |
| Event capacity | 600,000 | |
| Linked door capacity | Self: 1 doors Extended: up to 125 doors (connected with 62 access modules) |
|
| Linked card reader capaciry | 2 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers | |
| Authentication | ||
| Fingerprint recognition duration | ＜ 1 s | |
| General | ||
| Indicator | 9 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 1 for door status |
|
| Battery | Charge and discharge | |
| Power supply | 12 ± 15% VDC | |
| Power consumption | ≤ 42 W | |
| Working temperature | -10 °C to 55 °C (14 °F to 131 ° F) | |
| Working humidity | 0% to 90% (No condensing) | |
| Installation | Installation with guide rail | |
| Language | English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian |
|
| Function | ||
| Configuration via Web browser | Support | |
| Multi-factor authentication | Support | |
| First person in | Support | |
| Anti-passback | Support 32 routes (64 card readers each) | |
| Multi-door interlocking | Support 32 groups (32 doors each) | |
