- DS-K2708X
- ACCESS CONTROL, BRANDS

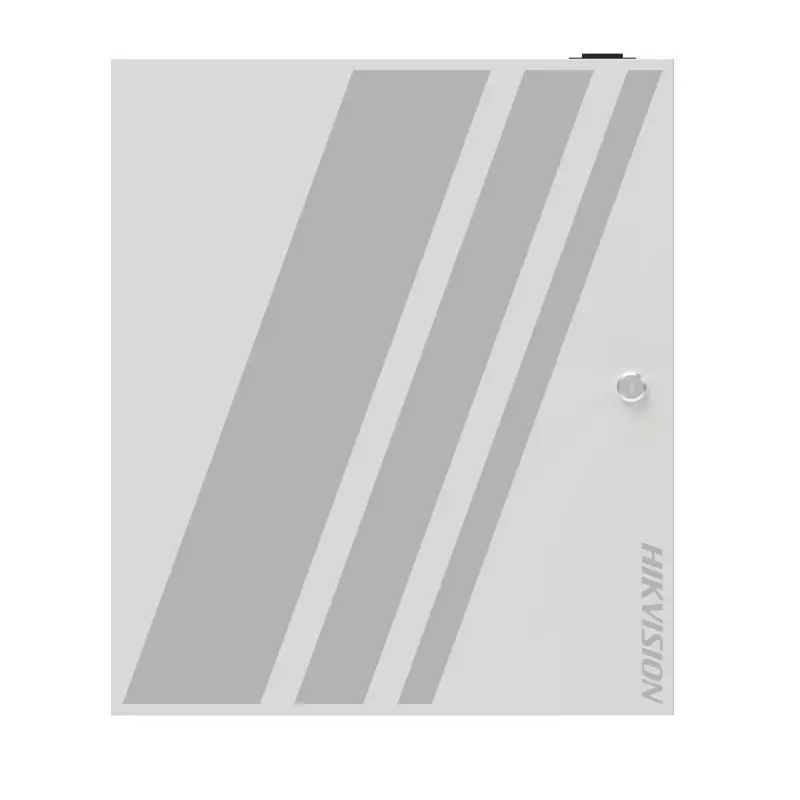

Hikvision Access Controller DS-K2708X
Features:
- Supports 8-door control. It is formed by 2 DS-K2M002X access modules, and one 4-doors access controller
- Access controller: downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus. Access Module: supports 8-ch RS-485 interface for card reader connecting
- Web configuration management. All configurations can be realized via web without software application
- Supports professional access control applications such as multi-door interlocking and anti-passback
- Supports backup battery access. Charging and discharging are available
- It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
Specifications:
| System | |
| Operating system | Linux |
| Network | |
| Wired network | 1, 10/100/1000 Mbps self-adaptive |
| Interface | |
| Network interface | 1 |
| Lock control | 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules. |
| Exit button | 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules. |
| Door contact input | 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules. |
| Alarm input | 16, including 8 on access controller and 8 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules. |
| Alarm output | 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules. |
| TAMPER | 1 |
| RS-485 | 15, including 7 on access controller and 8 on access modules 7 on access controller: 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy) 8 on access modules: 4 for card reader, 4 for access controller |
| Wiegand | 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules. |
| USB | 1, USB 2.0 |
| Fire interface | 1 |
| Capacity | |
| User capacity | 100,000 |
| Fingerprint capacity | 10,000 |
| Card capacity | 200,000 |
| Event capacity | 600,000 |
| Linked door capacity | 8, including 4 on access controller and 4 on access modules |
| Linked card reader capaciry | 16 RS-485 card readers (OSDP protocol) and 8 Wiegand card readers; 8 RS-485 card readers on the access controller and 8 on access modules (4 for each); 4 Wiegand card readers on the access controller and 2 on access modules |
| Authentication | |
| Fingerprint recognition duration | ＜ 1 s |
| General | |
| Indicator | DS-K2704X(P): 12 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status DS-K2M002X: 6 indicators, 1 for indicating power status, 1 for running status, 2 for RS- 485 status, and 2 for door status |
| Battery | Charge and discharge |
| Power supply | 100 VAC to 240 VAC |
| Power consumption | ≤ 200 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 ° F) |
| Working humidity | 0% to 90% (No condensing) |
| Installation | Wall mounting |
| Language | English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian |
| Function | |
| Configuration via Web browser | Support |
| Multi-factor authentication | Support |
| First person in | Support |
| Anti-passback | Support 32 routes (64 card readers each) |
| Multi-door interlocking | Support 32 groups (32 doors each) |
