Overview:

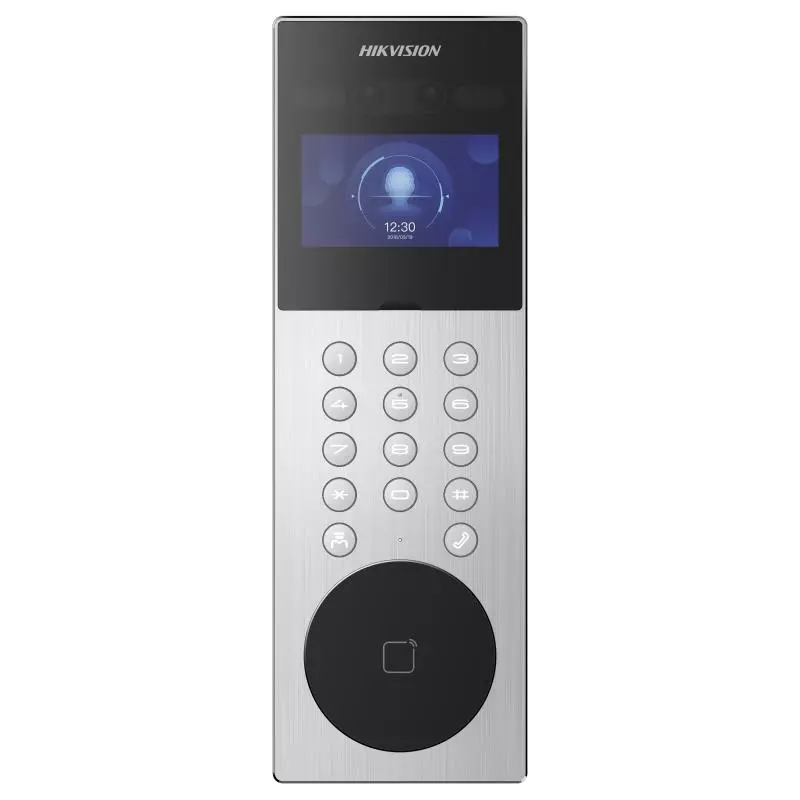

Hikvision Facial Recognition Door station DS-KD9203-ME6, Features :
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP wide-angle HD lens
- IP65 protection level
- Built-in M1 card reading module
- Multiple interfaces: RJ45, RS-485, alarm input, relay
- Convenient configuration via Web remotely
- Convenient unlock methods: face, cards, PIN code
Specification :
| System parameters | ||||
| Operation system | Linux | |||
| ROM | 1 GB | |||
| RAM | 4 GB | |||
| Processor | Embeded high performance processor | |||
| Display parameters | ||||
| Screen size | 4.3-inch | |||
| Operation method | / | |||
| Type | Colorful LCD | |||
| Resolution | 800 × 480 | |||
| Video parameters | ||||
| Lens | 2 MP HD camera | |||
| Resolution | Main stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps |
|||
| FOV | / | |||
| Wide dynamic range (WDR) | Digital WDR/120 dB | |||
| Supplement light | IR light, up to 3 m | |||
| Video compression standard | H.264 | |||
| Audio parameters | ||||
| Audio input | 1 built-in omnidirectional microphone | |||
| Audio compression standard | G.711 U, G.711 A | |||
| Audio output | 1 built-in loudspeaker | |||
| Audio compression bitrate | 64 Kbps | |||
| Audio quality | Noise suppression and echo cancellation | |||
| Volume adjustment | Adjustable | |||
| Capacity | ||||
| User capacity | 10,000 | |||
| Face capacity | 5,000 | |||
| Card capacity | 50,000 | |||
| Network parameters | ||||
| Network protocol | TCP/IP, RTSP | |||
| Wi-Fi | / | |||
| Bluetooth | / | |||
| 3G/4G | / | |||
| Device interfaces | ||||
| Alarm input | 4 | |||
| Network interface | 1 RJ-45 10/100/1000 Mbps self-adaptive | |||
| TAMPER | 1 | |||
| Exit button | 1 | |||
| RS-485 | 2 RS-485 (Half duplex, HIKVISION) | |||
| USB | / | |||
| Wiegand | / | |||
| TF card | / | |||
| Alarm output | / | |||
| Lock control | 1 relays, Max. 30 VDC, 2 A | |||
| Door contact input | 1 | |||
| General | ||||
| Button | Physical buttons | |||
| Installation | Flush mounting | |||
| Indicator | / | |||
| Weight | Net weight: 1.186 kg Gross weight: 1.471 kg | |||
| Protective level | IP65 | |||
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) | |||
| Working humidity | 10% to 90% (no-condensing) | |||
| Dimension (W × H × D) | 373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72") | |||
| Power supply | 12 VDC, 1.5 A | |||
| Application environment | Outdoor | |||
| Power consumption | ≤ 13 W | |||
| Language | English, French, German, Spanish, Italian, Portuguese, Dutch, Czech, Danish, Hungarian, polish, Romanian, Slovak, Indonesian, Burmese, Turkish, Russian, Ukrainian, Arabic |
|||
