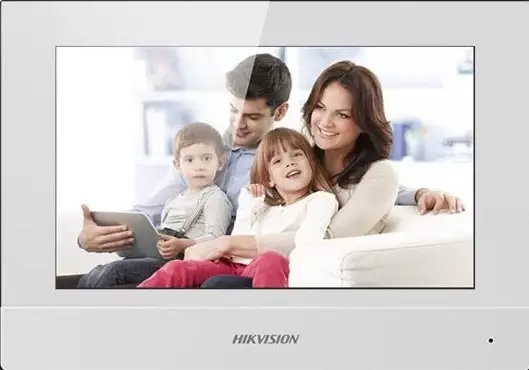

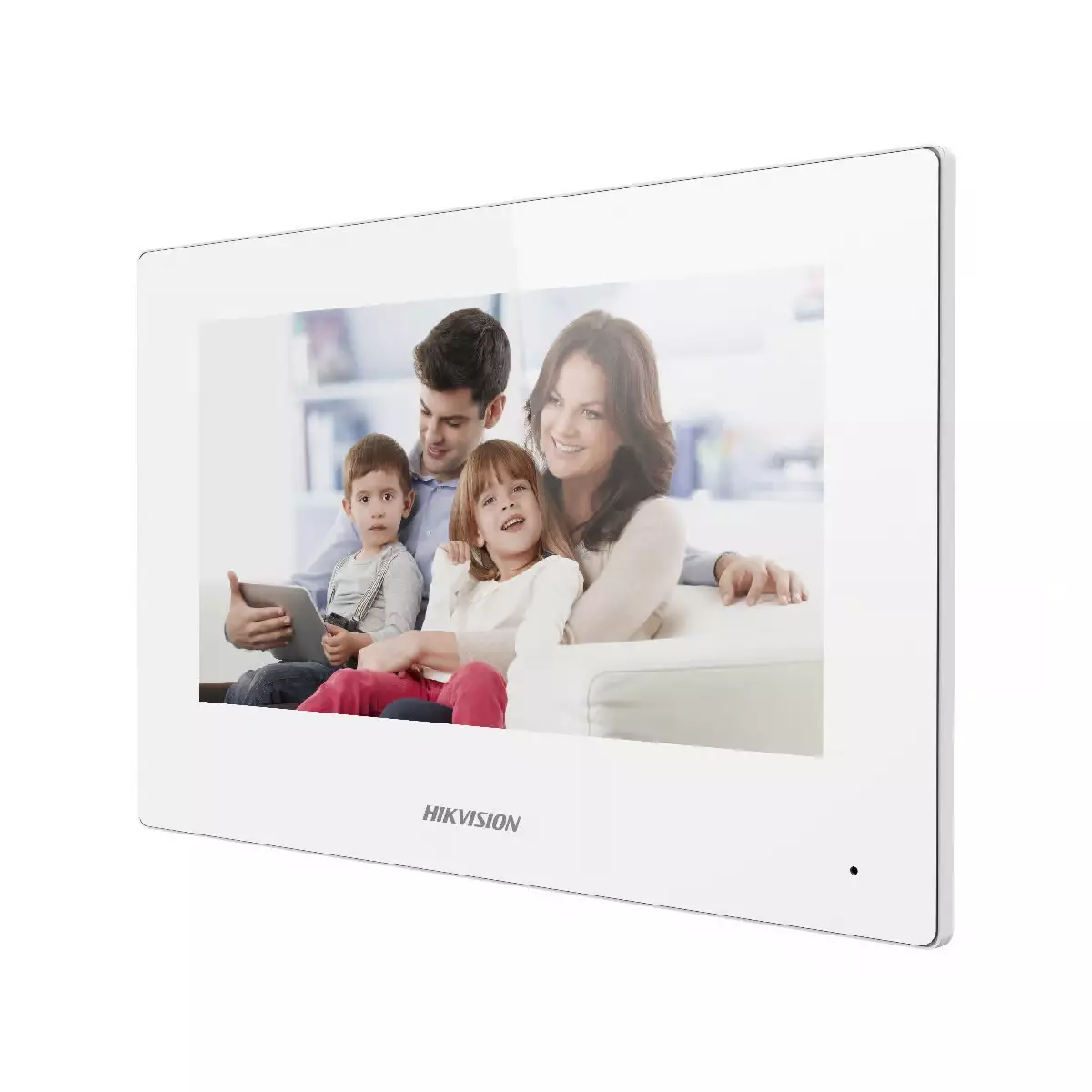

Hikvision KH8 Series Indoor Station Colour White DS-KH8520-WTE1
Chat with us now to check the stock.
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
- DS-KH8520-WTE1/White
- INTERCOM, BRANDS
- Click Here
Frequently Bought Together
Hikvision KH8 Series Indoor Station White DS-KH8520-WTE1
Features:
- 10.1-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Rich functions and extensions
- Live-view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
Specifications:
| System parameters | ||
| Operation system | Embedded Linux operation system | |
| Flash | 32 MB | |
| RAM | 128 MB | |
| CPU | Embedded processor | |
| Display parameters | ||
| Size | 10.1-inch | |
| Operation method | Capacitive touch screen | |
| Type | Colorful TFT screen | |
| Resolution | 1024 × 600 | |
| Video parameters | ||
| Video compression standard | / | |
| Lens | Not supported. | |
| FOV | / | |
| WDR | / | |
| Pixel | / | |
| Focal length | / | |
| Audio parameters | ||
| Audio input | Built-in omnidirectional microphone | |
| Audio compression standard | G.711 U | |
| Audio output | Built-in loudspeaker | |
| Audio compression bitrate | 64 Kbps | |
| Audio quality | Noise suppression and echo cancellation | |
| Volume adjustment | Adjustable | |
| Capacity | ||
| Linked IPC | 16 | |
| Linked indoor extensions | 16 | |
| Notices | 200 | |
| Linked doorphone | 17 | |
| Network parameters | ||
| Communication protocol | TCP/IP, SIP, RTSP | |
| Wired network | 10/100 Mbps self-adaptive | |
| Wi-Fi | Wi-Fi 802.11 b/g/n | |
| Bluetooth | / | |
| 3G/4G | / | |
| Zigbee | / | |
| Device interfaces | ||
| Alarm input | 8-ch alarm inputs | |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive | |
| TAMPER | / | |
| RS-485 | 1 | |
| USB | 0 | |
| TF card | Max to 128 G, SD 2.0 or lower version | |
| Alarm output | 2 | |
| Power interface | 1 | |
| General | ||
| Button | 0 | |
| Installation | Surface mounting | |
| Indicator | 0 | |
| Weight | 1118 g (with packaging) 660 g (without packaging) |
|
| Protective level | / | |
| Power supply method | IEEE802.3af, standard PoE 12 VDC/1 A |
|
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) | |
| Working humidity | 10% to 90% | |
| Dimensions | 254 mm × 166 mm × 22.55 mm (10.0" × 6.5" × 0.89") | |
| Battery | / | |
| Application environment | Indoor | |
| Power consumption | ≤ 6 W | |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak |
|
