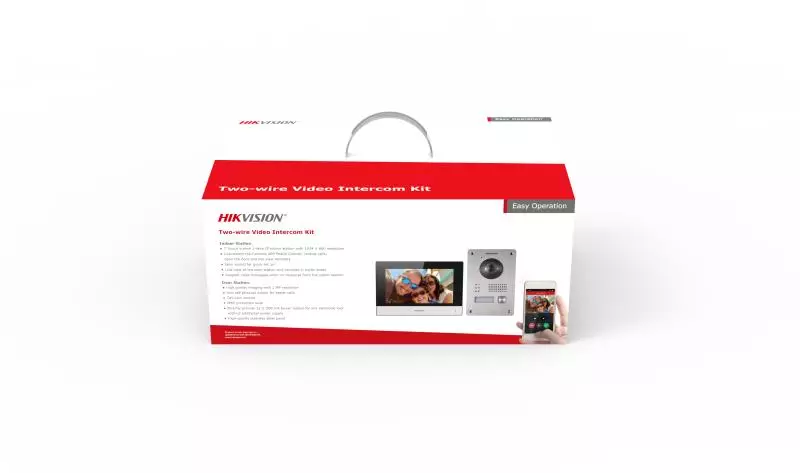

Hikvision Two-wire Digital IP Video Intercom Kit DS-KIS703Y-P
- Indoor Station: 7' touch screen 2-Wire IP indoor station with 1024 × 600 resolution
- Indoor Station: Convenient Hik-Connect APP Mobile Control: receive calls, open the door and live view remotely
- Indoor Station: Easy wizard for quick set up
- Indoor Station: Live-view of the door station
- Indoor Station: Support voice messages when no response from the indoor station
- Door Station: High quality imaging with 2 MP resolution
- Door Station: One call physical button for easier calls
- Door Station: Two-lock control
- Door Station: IP65 protection level
- Door Station: Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
- Door Station: High-quality stainless steel panel
Specifications:
| Door station | |
| Operation system | Embedded Linux operation system |
| Operation mode | Single-button |
| Flash | 32 MB |
| RAM | 256 MB |
| Door station | |
| Camera | 2 MP HD camera |
| Resolution | Main stream: 1280*720P, 1920*1080p Sub stream: 640*480 |
| Night vision | Low illumination IR supplement distance: 3 m |
| WDR | Support |
| Field of view | Horizontal: 140° Vertical: 85° |
| Video Compression Standard | H.264 |
| Door station | |
| Audio input | Built-in 1*omnidirectional microphone |
| Audio output | Built-in 1*loudspeaker, 8Ω |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Door station | |
| Network protocol | TCP/IP, RSTP, SIP2.0 |
| Wired network | Support, 2-Wire wiring |
| Door station | |
| RS-485 | / |
| Alarm input | 2( Exit button or door contact) |
| Output | 1*12 V/500 mA output |
| Two-wire interface | 1 |
| TAMPER switch | 1 |
| Door station | |
| Power consumption | ＜ 10 W |
| Working temperature | -40° C to +60° C(-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Installation | Surface mounting, flush mounting |
| Protection level | IP65 |
| Indicator | 3 |
| Power supply | From indoor station |
| Indoor station | |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Indoor station | |
| Display screen | 7-inch TFT touch screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Brightness | Adjustable |
| Indoor station | |
| Audio input | Built-in 1*omnidirectional microphone |
| Audio output | Built-in 1*loudspeaker, 8Ω |
| Audio quality | Noise suppression and echo cancellation |
| Volume | Local adjustable |
| Audio compression standard | G.711 U, G.711 A |
| Indoor station | |
| Wired network | 1*10 Mbps through 2-wire interface |
| Wireless network | Wi-Fi 802.11 b/g/n, 2.400-2.4835 GHz |
| Indoor station | |
| RS-485 | 1 |
| Alarm input | 8 |
| Two-wire (output) | 1 |
| Two-wire (input) | 1 |
| Power input | 24 VDC/1.5 A |
| Indoor station | |
| Power supply | 24 VDC/1.5 A |
| Power consumption | ≤ 8 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% |
