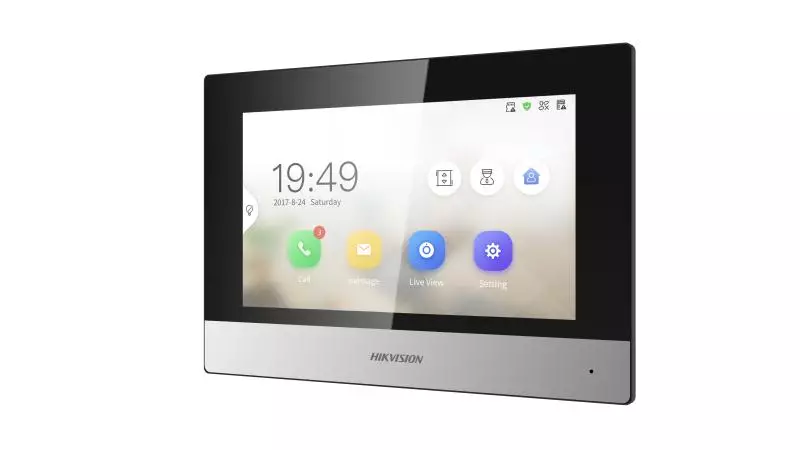

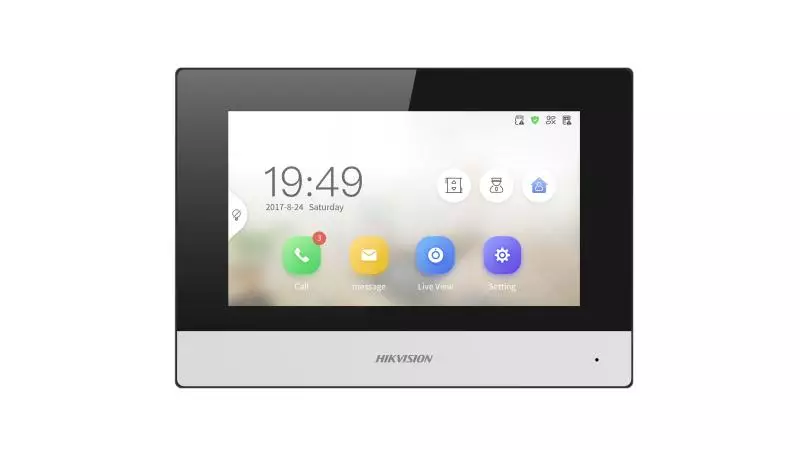

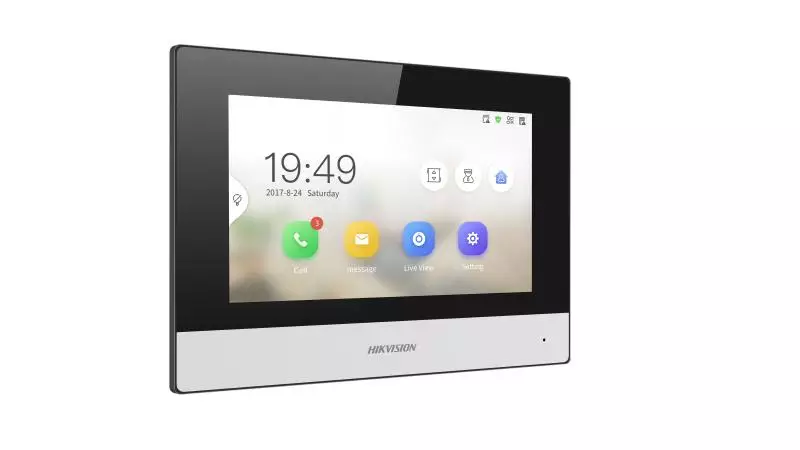

Hikvision Two wire indoor stations - DS-KH6320Y-WTE2
- 7-inch IPS touch screen 2-Wire IP indoor station with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
Specifications:
| System parameters | |
| Operation system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | TFT |
| Resolution | 1024 × 600 |
| Video parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide dynamic range (WDR) | / |
| Video compression standard | / |
| Focal length | / |
| Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio compression standard | G.711 U G.711 A |
| Audio output | Buit-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Message capacity | 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events |
| Notice capacity | 200 |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity |
16 |
| Linked doorphone capacity | 17 IP doorphones Max. |
| Network parameters | |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |
| Device interfaces | |
| Alarm input | 8-ch alarm inputs |
| TAMPER | / |
| RS-485 | 1 |
| USB | / |
| TF card | Max to 128 G, SD 2.0 or lower version |
| Alarm output | 2 relays (30 V Max.) |
| Lock control | 2 relays, Max. to 30 VDC, 0.3 A |
| Two-Wire IP interface | 1 |
| General | |
| Button | / |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Net weight:0.325 kg Gross weight: 0.650 kg |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93") |
| Battery | / |
| Power supply | Powered by KAD704Y or KAD706Y series distributor |
| Application environment | Indoor |
| Power consumption | ≤ 4 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak |
