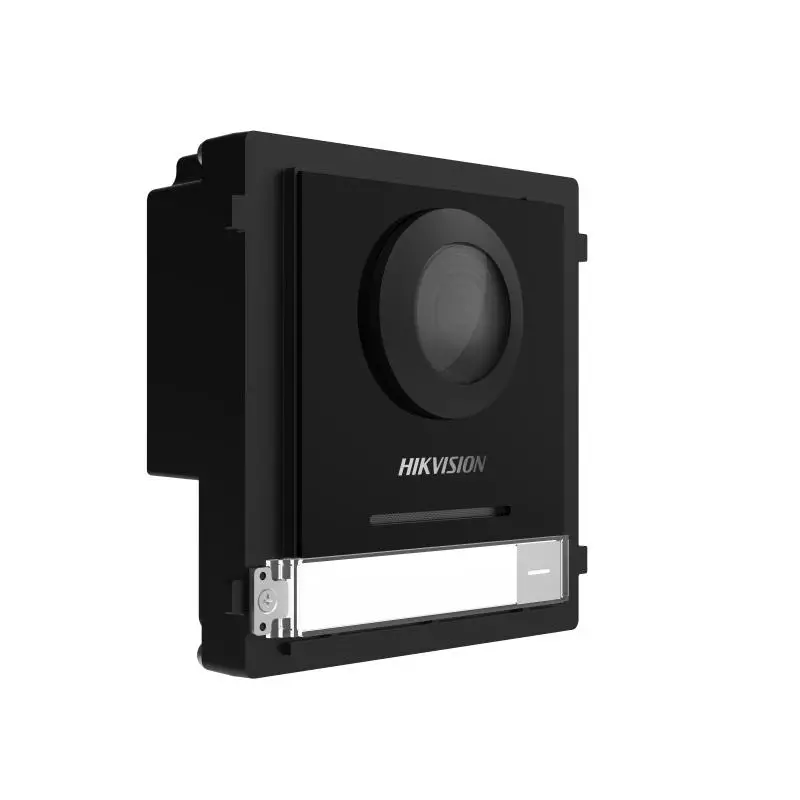

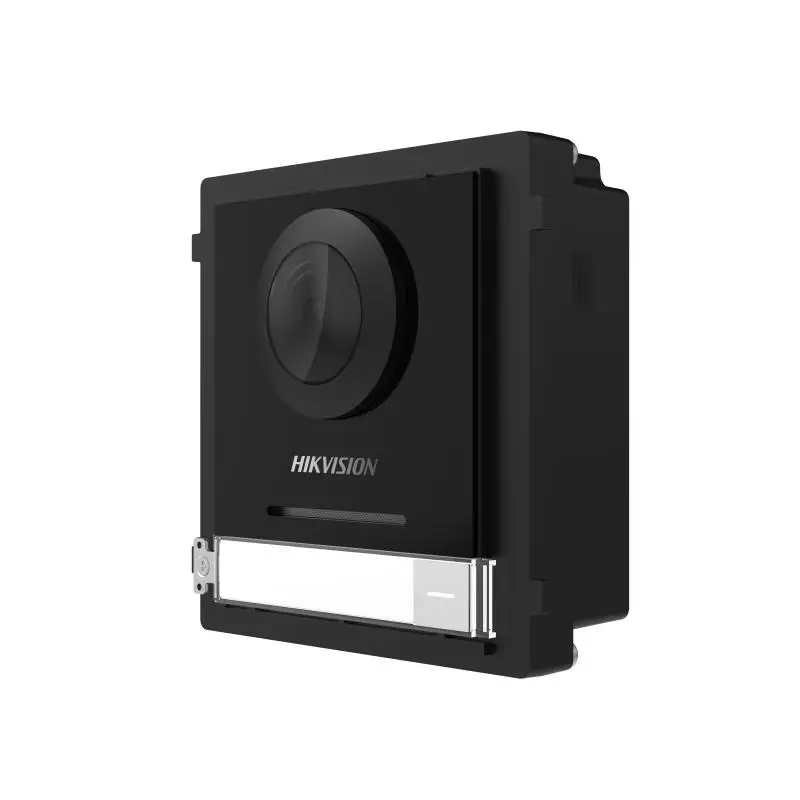

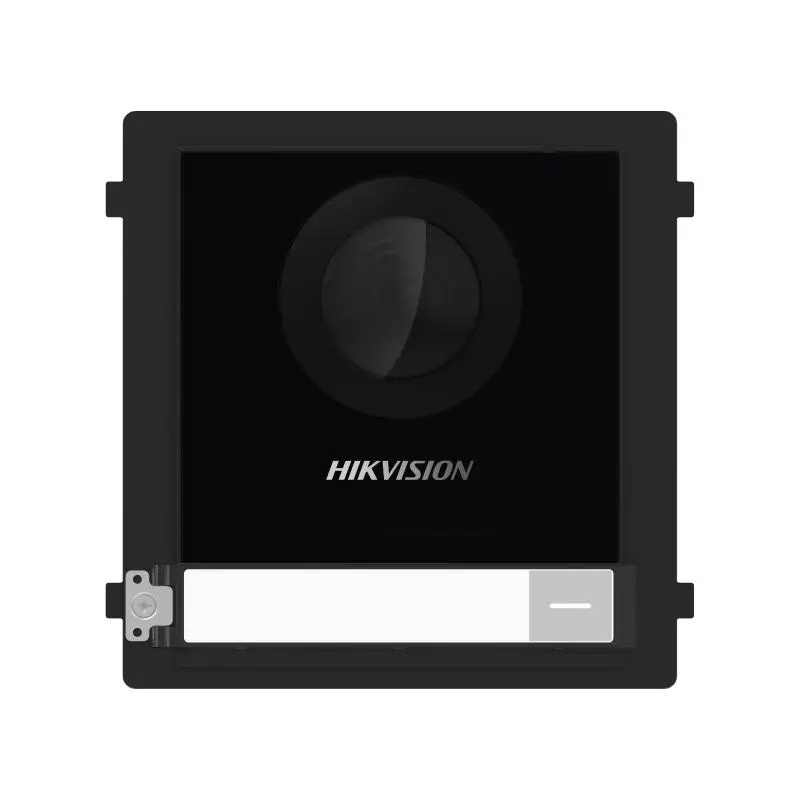

Hikvision Two Wire Main Unit DS-KD8003Y-IME2

Chat with us now to check the stock.
Login to See Better Price
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%

Frequently Bought Together

Hikvision Two Wire Main Unit DS-KD8003Y-IME2



  • 2-Wire main unit of modular door station
  • 2MP fisheye camera with IR supplement
  • One call Physical Button For easier calls
  • Two-lock control
  • IP65 protection level
  • Convenient configuration via Web remotely
  • Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply



Specifications:

System parameters
Operation system Embedded Linux operation system
ROM 32 MB
RAM 256 MB
Processor Embedded Processor
Display parameters
Screen size /
Operation method /
Type /
Resolution /
Video parameters
Lens 1
Resolution 2 MP
FOV Horizontal: 146°, Vertical: 82°
Wide dynamic range (WDR) Support
Supplement light IR light, up to 3 m
Video compression standard H.264
Audio parameters
Audio input 1 built-in omnidirectional microphone
Audio compression standard G.711 U, G.711 A
Audio output 1 built-in loudspeaker
Audio compression bitrate 64 Kbps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Capacity
User capacity 2000
Face capacity NA
Fingerprint capacity /
Message capacity /
Linked indoor station capacity 500
Sub door station capacity 16
Network parameters
Network protocol NA
Wi-Fi /
Bluetooth /
3G/4G /
Device interfaces
Alarm input 4 (2 exit buttons and 2 door contacts by default)
Network interface NA
TAMPER 1
Exit button 2 (2 for lock control)
RS-485 1 (1 for Hikvision's sub module communication)
USB NA
Wiegand NA
TF card NA
Alarm output NA
Lock control 2 relays, Max. to 30 VDC, 2 A
Door contact input 2
Two-Wire IP interface 1
General
Button 1
Installation Surface mounting, flush mounting
Indicator /
Weight Net weight: 0.380 kg
Gross weight: 0.541 kg
Protective level IP65
Working temperature -40° C to 60° C (-22° F to 140° F)
Working humidity 10% to 90%
Dimension (W × H × D) 100 mm × 98 mm × 42 mm
Battery /
Power supply Powered by KAD704Y or KAD706Y series distributor
Application environment Outdoor
Power consumption ≤ 4 W
Language English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish, Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croa
tian,Serbian,Greek,Slovak
