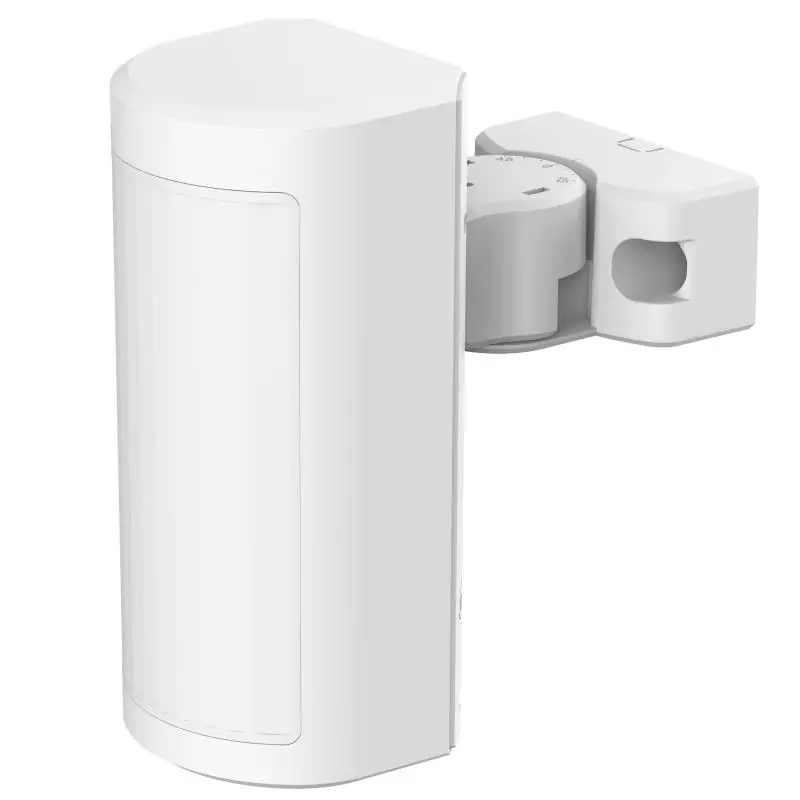

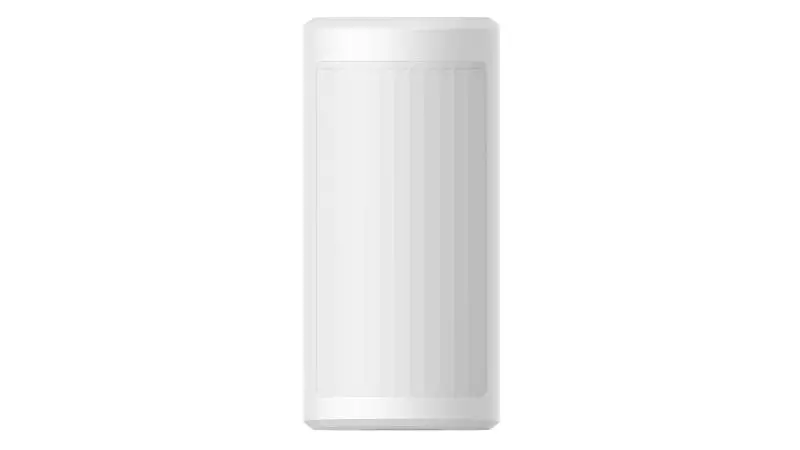

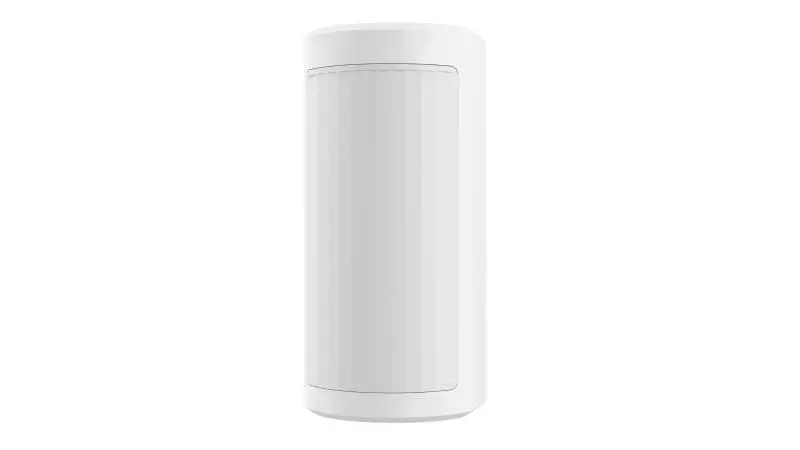

Hikvision Wired Double PIR Detector DS-PDP18-HM
Wired Double PIR Detector is an exceptional outdoor double PIR detector that boasts up to 2000 lux high light resistance.
This device is specifically designed to safeguard the outdoor areas of your property, ensuring that any potential intrusion is
detected and an alarm is triggered before any damage can occur. Its advanced features make it a reliable and effective
security solution for your property.
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
- DS-PDP18-HM
- ALARM, BRANDS
- Click Here
Frequently Bought Together
Hikvision Wired Double PIR Detector DS-PDP18-HM
Wired Double PIR Detector is an exceptional outdoor double PIR detector that boasts up to 2000 lux high light resistance.
This device is specifically designed to safeguard the outdoor areas of your property, ensuring that any potential intrusion is
detected and an alarm is triggered before any damage can occur. Its advanced features make it a reliable and effective
security solution for your property
Features:
- High/Low mount adjustment
- IP65 weather resistance for outdoor application
- Automatic sensitivity
- Selectable EOL resistors for alarm and tamper-proof wiring
- Digital temperature compensation and IFT technology
- 9 to 16 V wide voltage adaptation with polarity reverse conncection protection
Specifications:
| Detection Performance | |
| Detection Method | Passive Infrared |
| Detection Range | 18 m |
| Detection Angle | 90° |
| Detection Zones | 118 |
| Detectable Speed | 0.3 to 2 m/s |
| Sensitivity | Auto, Pet |
| White Light Filter | 2000lux |
| Digital Temperature Compensation | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front,Rear |
| Detection performance | |
| Pet Immunity | Up to 24 Kg |
| Software features | |
| End of line resistance | Alarm: 1K,2K2,4K7,5K6,6K8 Tamper: 1K,2K2,4K7,5K6 |
| Hardware features | |
| Alarm output | Normally Closed |
| Interface | |
| LED Indicator | Blue(Alarm), Orange(Fault) |
| Electrical characteristics | |
| Power consumption | Maximum current: 9 mA @12 VDC Quiescent current: 14 mA@12 VDC |
| Typical voltage | 12 VDC |
| Power supply | 9 to 16 VDC |
| General | |
| Operation Temperature | -25 °C to 70 °C (-13 °F to 158 °F) |
| Storage Temperature | -25 °C to 70 °C (-13 °F to 158 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | φ101.2 mm x 32.9 mm |
| Weight | 2.5 to 3 m High Mount 0.8 to 1.2 m Low Mount |
| Mounting Height | 2.4 to 4m |
| Mounting Method | Wall |
| Application Scenario | Indoor, Outdoor |
| General | |
| IP rate | IP 65 |
