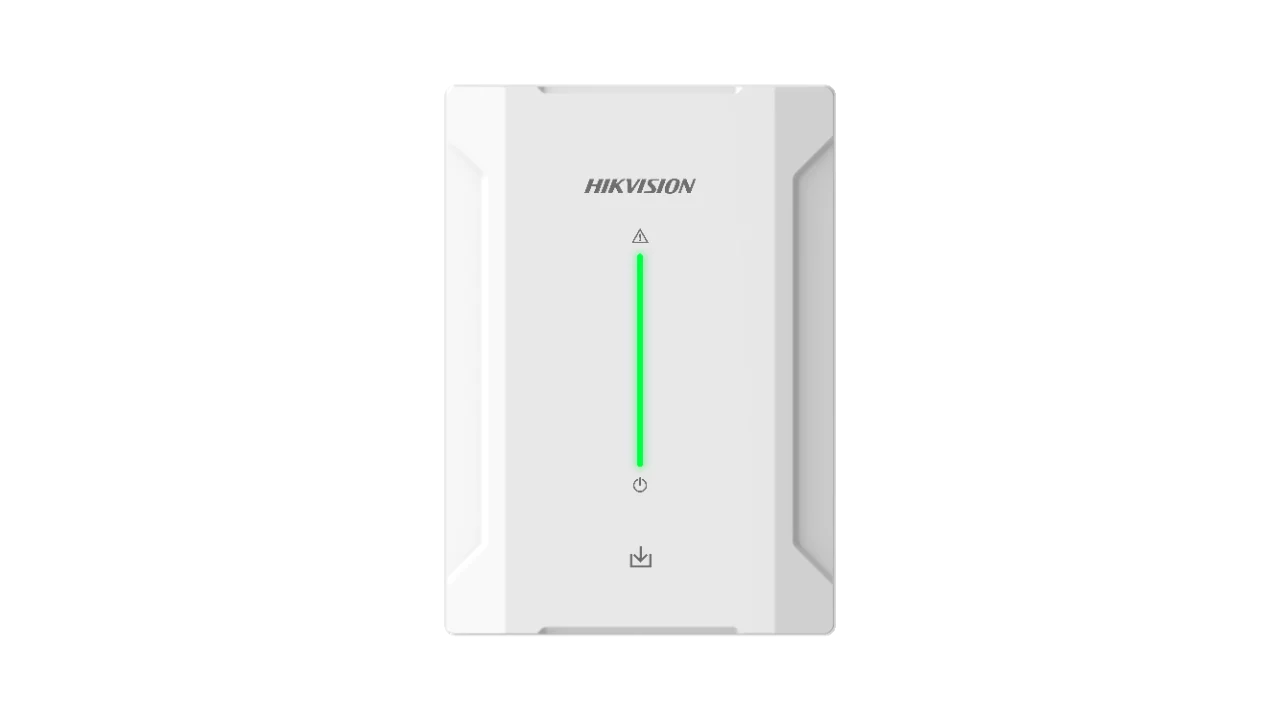

Hikvision Wired Input Expander (Cascade) DS-PM1-I8O2-H

Overview:

Hikvision DS-PM1-I8O2-H is a wired zone expander for the AX Hybrid Pro control panel， which has 8 onboard zones and 2 onboard collector outputs. This zone expander communicates with the control panel via high-speed RS-485， and the maximum distance between the zone expander and the control panel can be 900m.

Wired Input Expander（Cascade）

• 8 on-board wired zones
• Support 3EOL connection(Alarm: 1KΩ; Tamper: 1KΩ; Fault: 2.2KΩ)
• Support zone alarm, tamper, masking, fault, short detection
• 1 power output for wired detectors
• 2 Speed-X bus, supporting wired input expander cascade mode.
