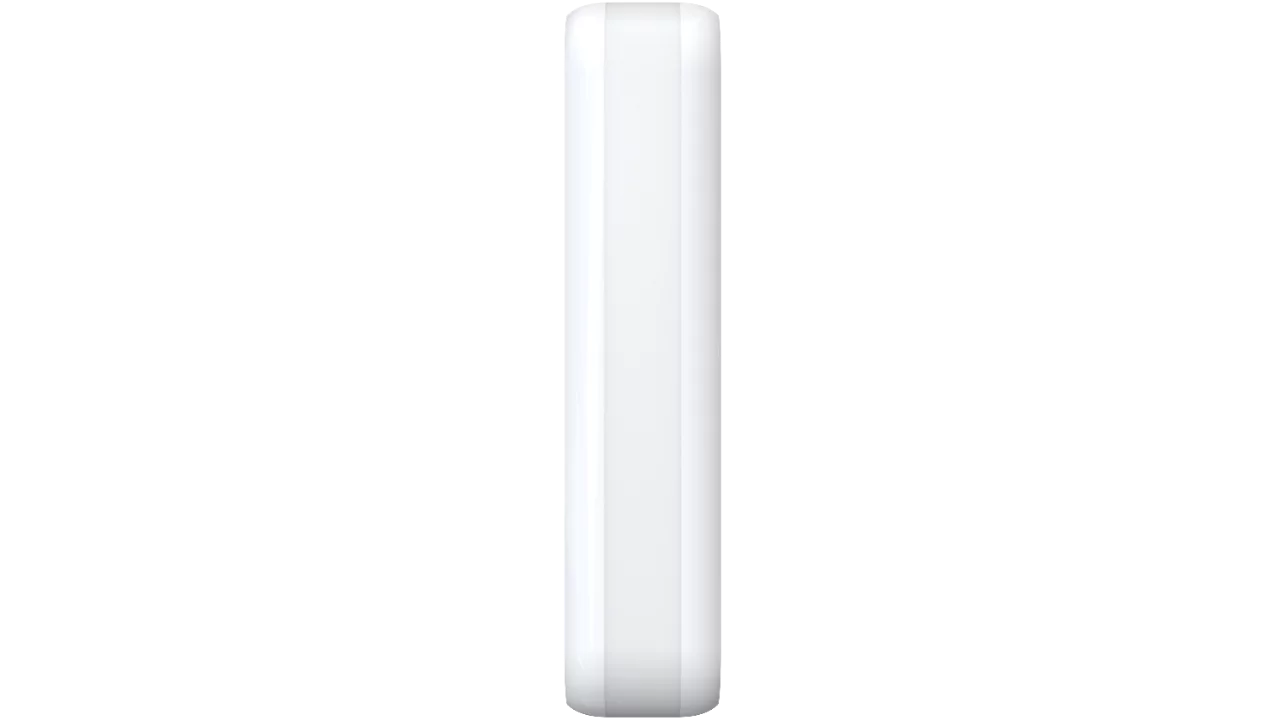

Hikvision Wired PIR AM Curtain Detector DS-PDC10AM-VG3
IP65 weather resistance for outdoor application
* FIND A CHEAPER PRICE WE WILL BEAT IT BY 1% TO 5%
- DS-PDC10AM-VG3
- ALARM, BRANDS
- Click Here
Overview:
Wired PIR AM Curtain Detector
- Slim design for window frame installation
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Automatic sensitivity
- Selectable EOL resistors for alarm and tamper-proof wiring
- Directional detection support
Specifications:
Specifications:
| Model | DS-PDC10AM-VG3 | |
| Detection Performance | Detection Method |
Passive Infrared |
| Detection Range |
Wall Mount：10m Ceiling Mount：6m |
|
| Detection Angle |
5° | |
| Detection Zones |
32 | |
| Detectable Speed |
0.2～3m/s | |
| Sensitivity | Auto | |
| White Light Filter |
6500lux | |
| Digital Temperature Compensation |
Support | |
| Creep Zone Protection |
Support | |
| Anti-masking | Support | |
| Feature | Digital Processing |
Support |
| Sealed Optics | Support | |
| Tamper Protection |
Front,Rear | |
| Directional Detection |
Support | |
| Interface | Alarm Output | Normally Closed |
| LED Indicator | Blue(Alarm), Green+Orange(Mask) | |
| Transmission | Transmission Method |
Wired |
| Electrical Characteristics | Power Consumption |
22mA Max |
| Power Supply | 9 to 16 VDC | |
| Typical Voltage |
12 VDC | |
| General | Operation Temperature |
-25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature |
-25 °C to 60 °C (-13 °F to 140 °F) | |
| Operation Humidity |
10% to 90% | |
| IP Rate | IP65 | |
| Dimension(Wx HxD) |
29.2mm × 134.4mm × 39.5mm | |
| Weight | 77.5g | |
| Mounting Height |
2 to 4m | |
| Mounting Method |
Wall,Ceiling | |
| Application Scenario |
Indoor,Outdoor | |
| Bracket | L-shaped adapter included | |
