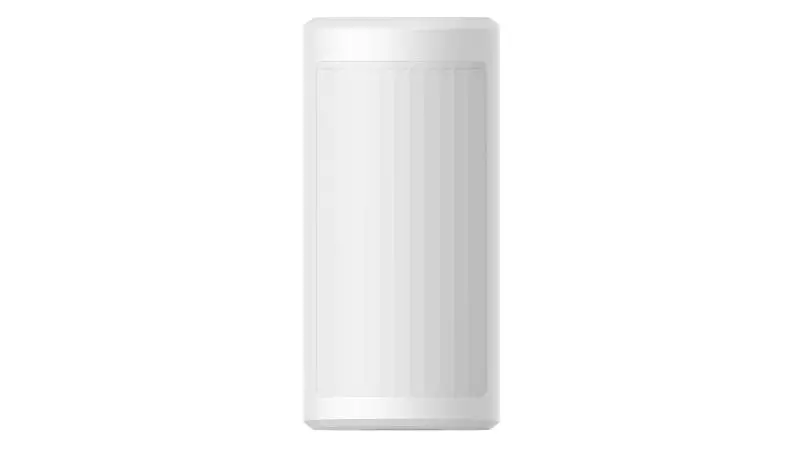

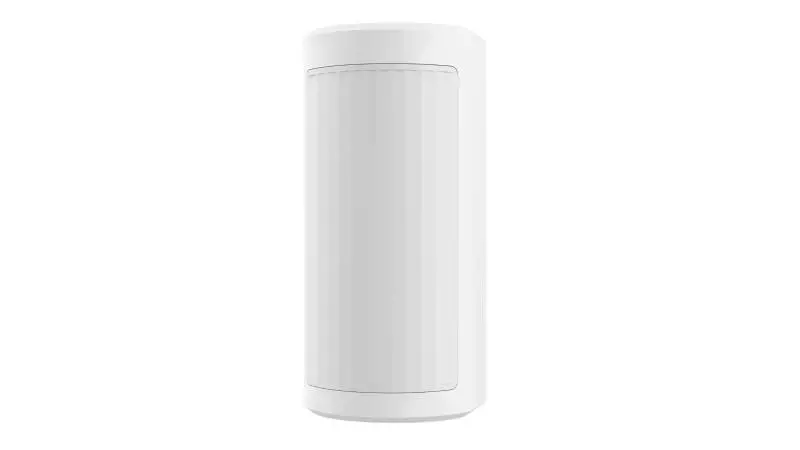

Wireless Double PIR Detector is a two-way wireless outdoor double PIR detector with up to 20000lux high light resistance.
This device is designed to protect the outdoor areas of your property and triggers an alarm before an intruder breaks in.
Detection Performance | |||
Detection Method | Passive Infrared | ||
Detection Range | 18 m | ||
Detection Angle | 90° | ||
Detection Zones | 118 | ||
Detectable Speed | 0.3~2m/s | ||
Sensitivity | Auto,Pet | ||
White Light Filter | 20000lux | ||
Pet Immunity | Up to 24 kg | ||
Digital Temperature Compensation |
Support | ||
Feature | |||
Digital Processing | Support | ||
Sealed Optics | Support | ||
Tamper Protection | Front,Rear | ||
Environment Temperature Indicator |
Support | ||
Signal Strength Indicator | Support | ||
Interface | |||
Power Switch | Power up enrolling | ||
LED Indicator | Blue (Alarm) | ||
Transmission | |||
Transmission Technology | Tri-X Wireless | ||
Transmission Method | Two-Way RF Wireless | ||
Transmission Frequency | 433MHz | ||
Transmission Security | AES-128 Encryption | ||
Transmission Range(Free Space) | 1Km | ||
Frequency Hopping | Support | ||
Enrolling Method | Power up,Remote ID,QR Code | ||
Electrical Characteristics | |||
Standard Battery Life | Up to 5 years (standby time) | ||
Power Supply | Battery powered | ||
Battery Type | CR123A × 2 | ||
Typical Voltage | 3V | ||
General | |||
Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) | ||
Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) | ||
Operation Humidity | 10% to 90% | ||
IP Rate | IP65 | ||
Dimension(WxHxD) | 67.3 mm × 141.6 mm × 60 mm | ||
Weight | 301 g | ||
Mounting Height | 2.5 to 3 m High Mount 0.8 to 1.2 m Low Mount |
||
Mounting Method | Wall | ||
Application Scenario | Indoor, Outdoor | ||
Bracket | Adjustment bracket included |
