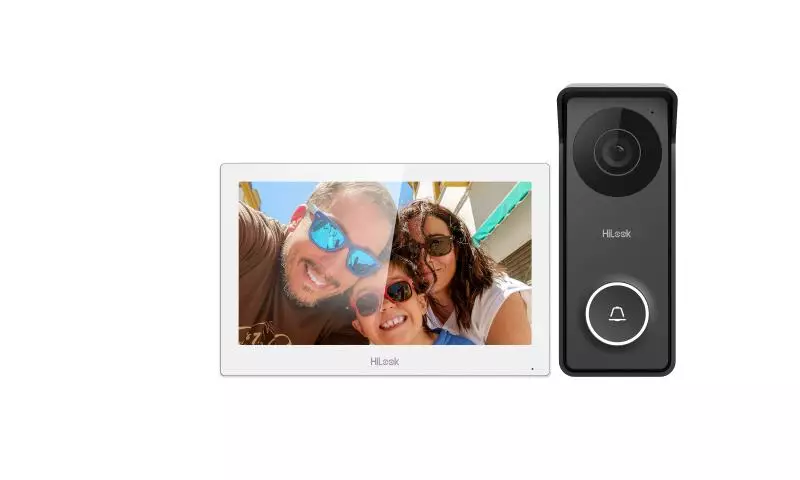

HiLook Hybrid HD Intercom Kit HA-KIT-H1
Features:
- Hik-Connect mobile control
- HD TVI video quality
- 7 inch touch screen
- Plug & Play
Specifications:
| Door station | |
| Supplement light | IR light, up to 3 m |
| Resolution | Stream resolution:1280 * 720@60fps |
| FOV | Horizontal: 117°, Vertical: 70°, Diagonal: 141° |
| Door station | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Door station | |
| Linked indoor station capacity | 3 |
| Sub door station capacity | 1 |
| Card capacity | / |
| Door station | |
| Lock control | 1 relay, max 30 V 1 A |
| Power supply input | 12 VDC |
| Debugging port | 1 |
| Four-Wire interface | 1 |
| Door station | |
| Button | 1 physical button(s) |
| Indicator | / |
| Power supply | 12 VDC |
| Power consumption | ≤ 4 W |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 55 mm × 145 mm × 24 mm (2.17" × 5.71" × 0.94") |
| Application environment | Outdoor |
| Installation | Surface mounting |
| Protective level | IP65, IK08 |
| Weight | Without package: 200 g (0.44 lb) |
| Material | Aluminum alloy and Plastic |
| Indoor station | |
| Operation system | Embedded Linux operation system |
| RAM | 128 MB |
| ROM | 32 MB |
| Processor | Embedded high performance processor |
| Indoor station | |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Viewing Angle | Horizontal 160°, vertical 130° |
| Contrast | 700 (Typ) |
| Luminance | 250 cd/m² （Typ） |
| Operatiing method | Capacitive touch screen |
| Screen size | 7-inch |
| Indoor station | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio compression standard | G.711U, G.711A |
| Audio quality | Noise suppression and echo cancellation |
| Indoor station | |
| Linked network camera capacity | / |
| Linked indoor extensions capacity |
2 |
| Linked doorphone capacity | 2 |
| Linked analog camera | 1 |
| Indoor station | |
| Wi-Fi | Wi-Fi 802.11 b/g/n |
| Indoor station | |
| Network interface | / |
| RS-485 | / |
| Alarm input | 2 |
| Alarm output | / |
| Power supply input | 12 VDC |
| TF card | Support TF card, up to 128 G |
| Debugging port | 2 |
| Four-Wire interface | 4 |
| Relay | / |
| Indoor station | |
| Button | 0 physical button |
| Power supply | 12 VDC |
| Power consumption | ≤ 5 W |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 175 mm × 113.5 mm × 18.1 mm (6.89" × 4.47" × 0.71") |
| Installation | Surface mounting |
| Application environment | Indoor |
| Weight | Without package: 260 g (0.573 lb) |
| Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese |
