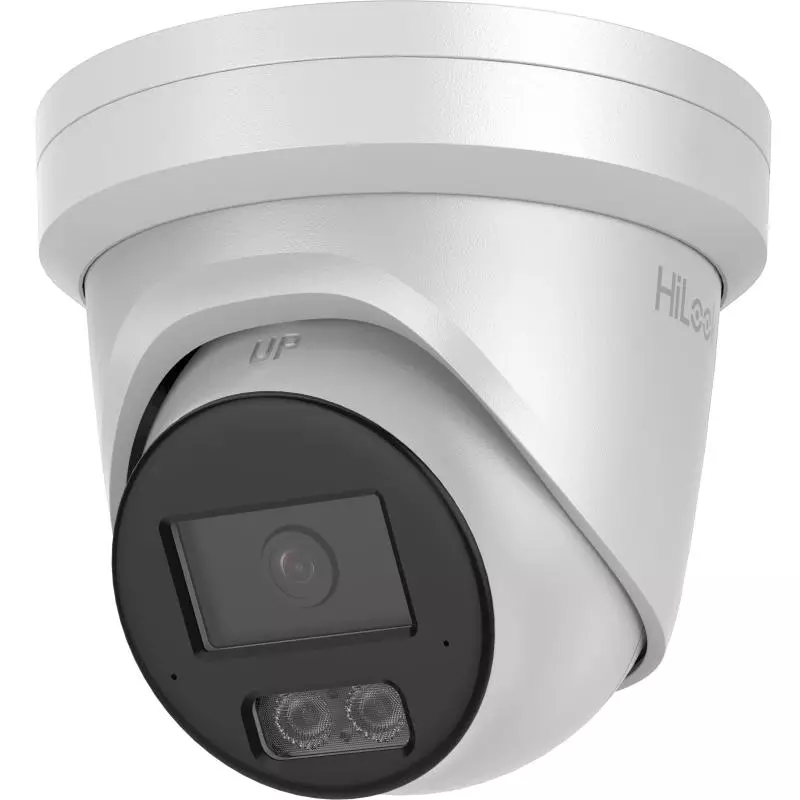

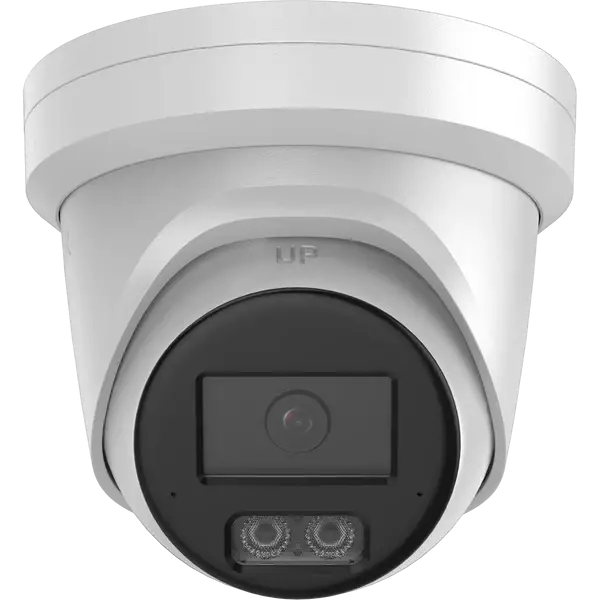

HiLook 6 MP Hi-Colour Fixed Turret Network Camera IPC-T561H-MU
Features:
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Built-in arrayed dual-microphone for real-time high quality audio security
- White Supplement Light for dark night
- Water and dust resistant (IP67)
Spesifications:
| Camera | ||
| Image Sensor | 1/1.8" Progressive Scan CMOS | |
| Max. Resolution | 3200 × 1800 | |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light | |
| Shutter Time | 1 s to 1/100,000 s | |
| Day & Night | IR cut filter | |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° | |
| Lens | ||
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2° |
|
| Lens Mount | M16 | |
| Iris Type | Fixed | |
| Aperture | F1.0 | |
| Depth of Field | 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞ |
|
| DORI | ||
| DORI | 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m |
|
| Illuminator | ||
| Supplement Light Type | White Light | |
| Supplement Light Range | Up to 30 m | |
| Video | ||
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
|
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
|
| Video Bit Rate | 32 Kbps to 16 Mbps | |
| H.264 Type | Baseline Profile, Main Profile, High Profile | |
| H.265 Type | Main Profile | |
| Bit Rate Control | CBR, VBR | |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding | |
| Region of Interest (ROI) | 1 fixed region for main stream | |
| Audio | ||
| Audio Type | Mono sound with built-in dual-mic | |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
|
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC | |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz | |
| Environment Noise Filtering | Yes | |
| Network | ||
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
|
| Simultaneous Live View | Up to 6 channels | |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP | |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
|
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
|
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) | |
| Client | iVMS-4200, Hik-Connect, Hik-Central | |
| Web Browser | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+ |
|
| Image | ||
| Image Parameters Switch | Yes | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
|
| Day/Night Switch | Day, Night, Auto, Schedule | |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog | |
| SNR | ≥ 52 dB | |
| Wide Dynamic Range (WDR) | 130 dB | |
| Image Stabilization | EIS | |
| Privacy Mask | 4 programmable polygon privacy masks | |
| Interface | ||
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port | |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB | |
| Audio | Built-in Microphone: Arrayed dual-microphone |
|
| Reset Key | Yes | |
| Event | ||
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
|
| Smart Event | Scene change detection | |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
|
| Deep Learning Function | ||
| Face Capture | Yes | |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
|
| General | ||
| Power | 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11 W |
|
| Material | Cover: Metal, main body: Metal | |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") | |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") | |
| Weight | Approx. 750 g (1.7 lb.) | |
| With Package Weight | Approx. 1140 g (2.5 lb.) | |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding | |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
| Approval | ||
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3- 2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
|
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
|
| Environment | CE-RoHS: 2011/65/EU | |
| Protection | IP67: IEC 60529-2013 | |
