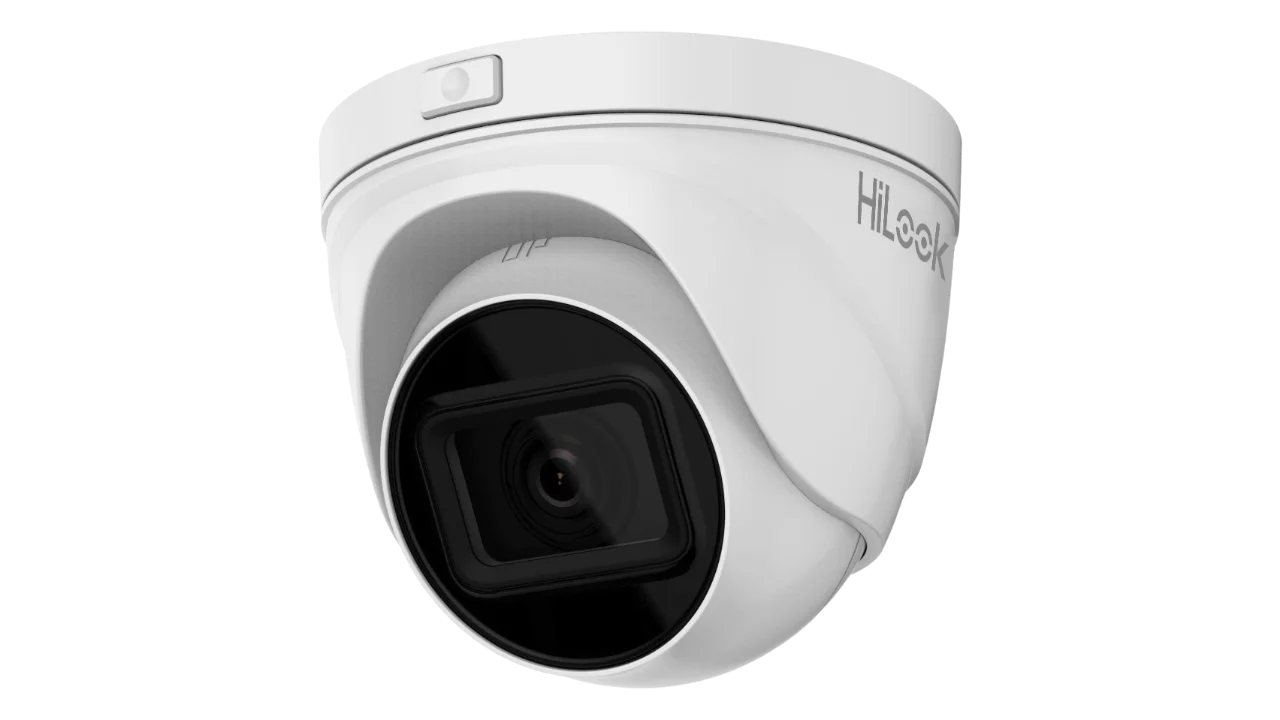

HiLook 4 MP Network IR Turret Camera 2.8~12mm motorized lens IPC-T641H-Z
product-additional-image
HiLook 4 MP Network IR Turret Camera 2.8~12mm motorized lens IPC-T641H-Z
HiLook 4 MP Network IR Turret Camera 2.8~12mm motorized lens IPC-T641H-Z

HiLook 4 MP Network IR Turret Camera 2.8~12mm motorized lens IPC-T641H-Z

Chat with us now to check the stock.
HiLook 4 MP Network IR Turret Camera 2.8~12mm motorized lens, H.265+, Water and dust resistant (IP67), Wide Dynamic Range120 dB, DNR3D DNR, Day & NightIR cut filter with auto switch
Exc. GST
$159.60
Inc. GST
$175.56
Eligible Coupon

Overview :



HiLook4 MP Network IR Turret Camera 2.8~12mm motorized lens IPC-T641H-Z

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP67)
  • Motorized varifocal lens for easy installation and monitoring
  • Image Sensor1/3″ progressive scan CMOS
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120 dB
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
  • DNR3D DNR
  • Day & NightIR cut filter with auto switch
  • Auto-Iris No



Specifications:

Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day  ＆ Night IR Cut Filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°
Lens
Lens Type Varifocal Lens, motoried lens, 2.8 to 12 mm
Focal Length  ＆ FOV 2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to
35°
Lens Mount Ø14
Iris Type Fixed
Aperture F1.6
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Video
Main Stream 50 Hz: 20 fps (2560 × 1440)
25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440)
30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Reset Key Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email, upload to memory card, trigger
recording, trigger capture
General
Power 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W
Material Metal
Dimension Ø129.4 mm × 116.4 mm (Ø5.1" × 4.6")
Package Dimension 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight Approx. 560 g (1.2 lb.)
With Package Weight Approx. 850 g (1.9 lb.)
Storage Conditions -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions		 -30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Approval
EMC FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
