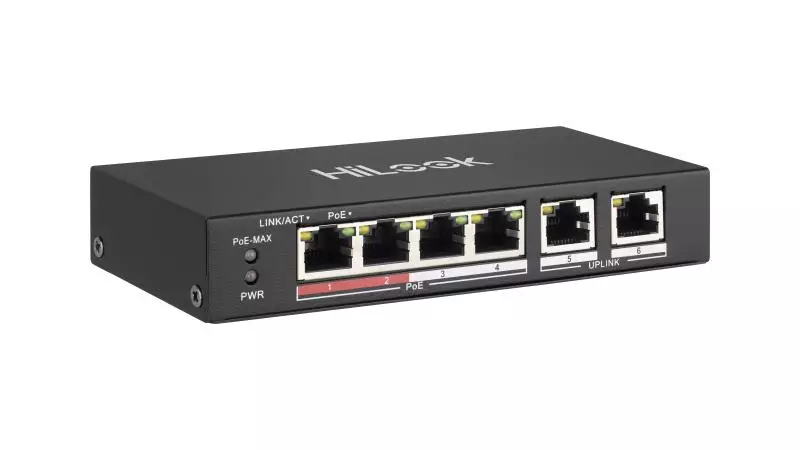

HiLook 4 Port Fast Ethernet Unmanaged POE Switch NS-0106P-35
Features:
- 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
- IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- Up to 250 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design
Specifications:
| Model | NS-0106P-35 | |
| Network parameters | Port number | 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive | |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | |
| Forwarding mode | Store-and-forward switching | |
| Working mode | Standard mode (default), Extend mode | |
| High priority ports | Ports 1 and 2 | |
| Ports for long-distance transmission | Ports 1 to 4 | |
| MAC address table | 4 K | |
| Switching capacity | 1.6 Gbps | |
| Packet forwarding rate | 0.8928 Mpps | |
| Internal cache | 768 Kbits | |
| PoE power supply | PoE standard | Ports 1 to 4: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. | |
| PoE port | Ports 1 to 4 | |
| Max. port power | Ports 1 to 4: 30 W | |
| PoE power budget | 35 W | |
| Dialing function | Long range | Ports 1 to 4: up to 250 m. |
| General | Shell | Metal material, fan-free design |
| Gross weight | 0.52 kg (1.15 lb) | |
| Net weight | 0.265 kg (0.58 lb) | |
| Dimension (L × H × D) | 145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”) | |
| Operating temperature | -10°C to 40°C (14°F to 104°F) | |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) | |
| Operating humidity | 5% to 95% (no condensation) | |
| Storage humidity | 5% to 95% (no condensation) | |
| Power supply | 48 VDC, 0.8 A | |
| Power consumption in idle | < 5 W | |
| Max. power consumption | 38 W | |
| Power source | 38 W | |
| Approval | EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE- LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
|
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
