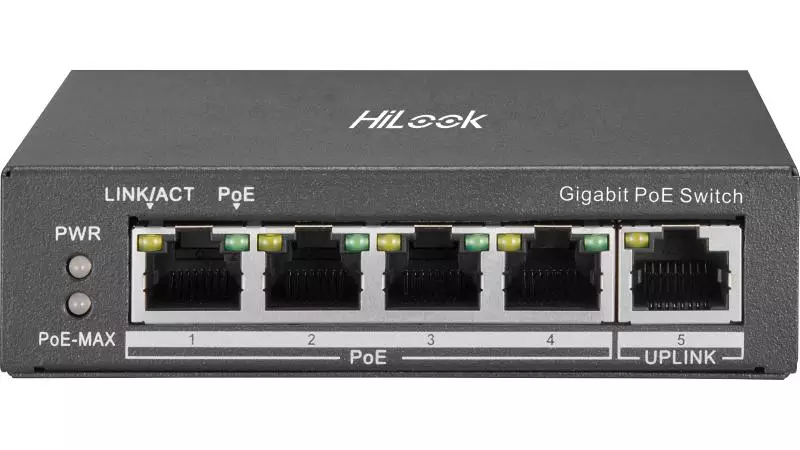

HiLook 4 Port Gigabit Unmanaged POE Switch NS-0505P-35
Features:
- 4 × Gigabit PoE ports, 1 × Gigabit RJ45 port
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design
Specifications:
| Model | NS-0505P-35 | |
| Network Parameters | Ports | 4 × Gigabit PoE port,1 × Gigabit RJ45 port |
| MAC Address Table | 2 K | |
| Switching Capacity | 10 Gbps | |
| Packet Forwarding Rate | 7.44 Mpps | |
| Internal Cache | 1 Mbits | |
| PoE Power Supply | PoE Standard | IEEE 802.3af;IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-) | |
| PoE Port | PoE: Ports 1 to 4 | |
| Max. Port Power | 30 W | |
| PoE Power Budget | 35 W | |
| General | Shell | Metal material |
| Net Weight | 0.265 kg (0.58 lb) | |
| Gross Weight | 0.759 kg (1.67 lb) | |
| Dimensions (W × H × D) | 105.00 mm × 27.60 mm × 83.10 mm (4.10'' × 1.10'' × 3.30'') | |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) | |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) | |
| Operating Humidity | 5% to 95% (no condensation) | |
| Relative Humidity | 5% to 95% (no condensation) | |
| Power Supply | 48 VDC, 0.8 A | |
| Max. Power Consumption | 38 W | |
| Power Consumption in Idle | 3 W | |
| Installation Mode | Desk-Mounted,Wall-Mounted | |
| Surge Protection | 6 kV | |
| Approval | EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
|
