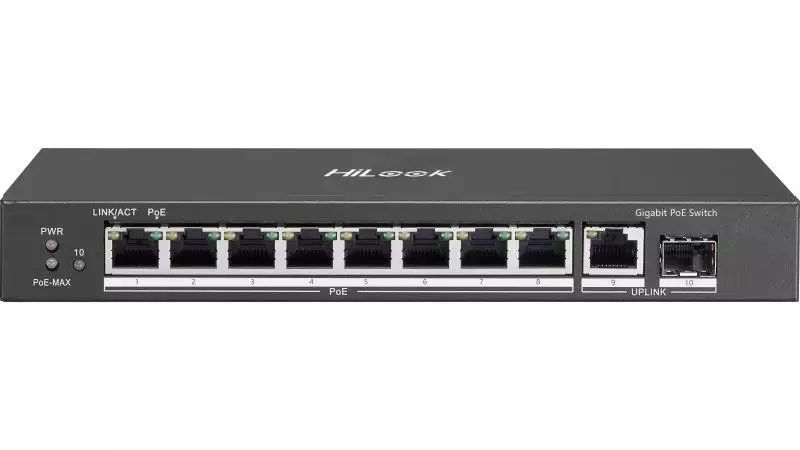

HiLook 8 Port Gigabit Unmanaged POE Switch NS-0510P-58
HiLook 8 Port Gigabit Unmanaged POE Switch NS-0510P-58

HiLook 8 Port Gigabit Unmanaged POE Switch NS-0510P-58

Chat with us now to check the stock.
Exc. GST
$90.86
Inc. GST
$99.95
Eligible Coupon

HiLook 8 Port Gigabit Unmanaged POE Switch NS-0510P-58



Features:

  • 8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port
  • IEEE 802.3at/af standard
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
  • 6 KV surge protection for PoE ports
  • PoE power management
  • Gigabit network access
  • Wire-speed forwarding and non-blocking design
  • Store-and-forward switching
  • Solid high-strength metal shell
  • Reliable fan-free design



Specifications:

Model NS-0510P-58
Network Parameters Ports 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
MAC Address Table 4 K
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Internal Cache 1.5 Mbits
PoE Power Supply PoE Standard IEEE 802.3af;IEEE 802.3at
PoE Power Pin End-span: 1/2(+), 3/6(-)
PoE Port PoE: Ports 1 to 8
Max. Port Power 30 W
PoE Power Budget 58 W
General Shell Metal material
Net Weight 0.635 kg (1.40 lb)
Gross Weight 1.366 kg (3.01 lb)
Dimensions (W × H × D) 217.60 mm × 27.60 mm × 108.50 mm (8.60'' × 1.10'' × 4.30'')
Operating Temperature –10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 48 VDC, 1.35 A
Max. Power Consumption 65 W
Power Consumption in Idle 7 W
Installation Mode Desk-Mounted,Wall-Mounted
Surge Protection 6 kV
Approval EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3:
2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second
Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (201165EU); WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
