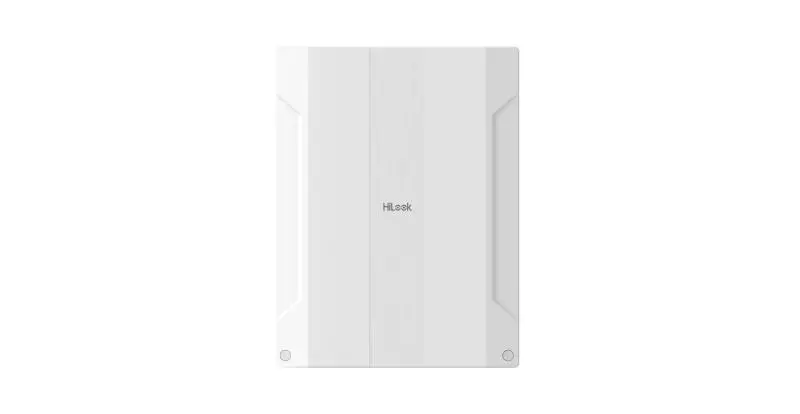

HiLook Panel 8 Zones and 40 Wired or Wireless Zones Expandable HA-ALARM-P48(O-STD)

Software features

Zones

48(8 onboard zones, max 4 wired PIRCAM)

Area

16

User

Installer: 1, Administrator: 1, Operator: 46

SMS notification

Supports (with GPRS/3G/4G module)

Onboard video clips

2

ARC protocol

ISAPI: Supports iVMS-4200 client software and web client

Cloud P2P: Supports cloud P2P privacy protocol

DC-09: ARC accessible (ADM-CID/SIA-DCS)

CSV-IP: Supports CSV-IP

ISUP: Supports ISUP 5.0

Programming tools

Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect

Firmware upgrade

Web/iVMS-4200/Hik-ProConnect

End of Line Resistance

Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K

Hardware features

Alarm input

48 (8 onboard zones)

Alarm output

48(Including 2 onboard relay outputs and 2 I/O outputs)

Power Output

1. Bell: maximum 12V 1.2A, 2. AUX: maximum 12V 1.5A, 3. Bell and AUX maximum 12V 2.1A

3/4G on board

Optional

GPRS on board

Optional

Bus

1 Speed-X bus

Sounder output

1 wired onboard sounder output

Tamper-Proof

1 switch to detect removal from mounting, 1 switch to detect front cover open

Netowrk interface

1 RJ45 10M/100M Ethernet interface

Electrical characteristics

Power interface

100 to 240 VAC (Onboard power transformer)

Power Consumption

1. 220V power supply

(1) With an alarm: 1.875A, 30W

(2) Without an alarm: 200mA, 3.2W

2. 13.5V battery supply

(1) With an alarm: 1.5A, 22W

(2) Without an alarm: 150mA, 2W

Battery type

Lead acid battery (12 V, 7 Ah, battery is not included by default)

Battery life span

Up to 36hrs

Display

Indicator

4 on-board LEDs

1. 1 AC power LED indicator (Green)

2. 1 system status LED indicator (Green/Red)

3. 1 PSTN status LED indicator (Green/Red)

4. 1 mobile communication status LED indicator (Green/Red)

General

Operation temperature

-10°C to 40°C

Operation humidity

10% to 90%

Shell material

Plastic

Color

White

Dimension(WxHxD)

261 mm × 199 mm × 86.4 mm

Weight

996.5 g

Device management

Tag

48

Keyfob

48

Keypad

4

Wireless sounder

8
